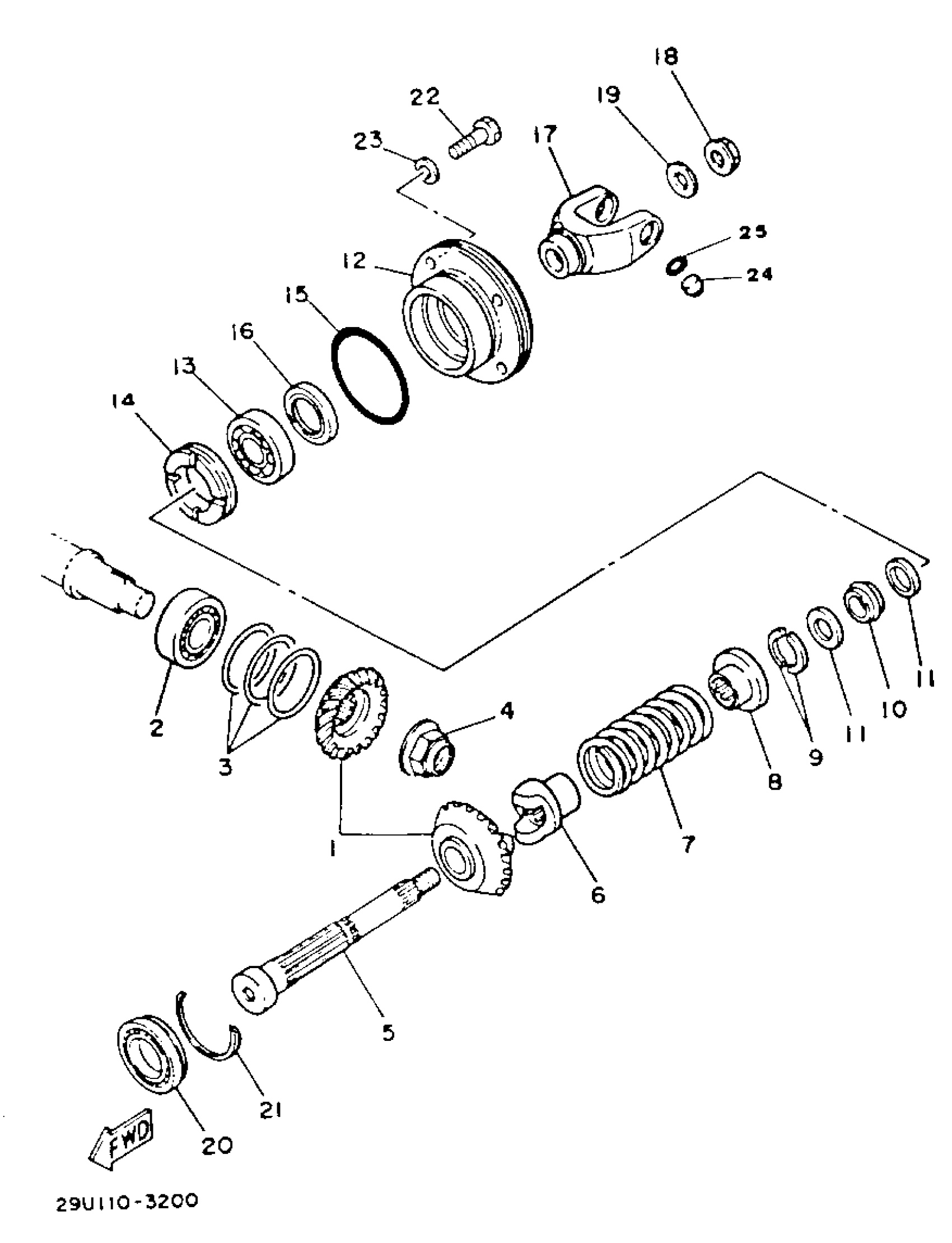

Yamaha YTM225DXK 1983 MIDDLE DRIVE GEAR Diagram
#
Description
Price
1
MIDDLE GEAR COMP (24W-W1751-00)
24W-Y1754-00-00
Unavailable
3
SHIM, THRUST (0.2T)
24W-17537-30-00
Unavailable
3
SHIM, THRUST (0.3T)
24W-17537-40-00
Unavailable
4
NUT(3GC)
90179-16651-00
Unavailable
5
SHAFT, MDL DRIVEN
24W-17553-00-00
Unavailable
6
CAM, DRIVEN (24W-17527-00)
24W-17527-01-00
Unavailable
7
SPRING, COMPRESSION
90501-60737-00
Unavailable
8
HOLDER
24W-17524-00-00
Unavailable
10
SPACER, EXPANSION
24W-46129-00-00
Unavailable
11
WASHER, PLATE
90201-173G4-00
Unavailable
12
HOUSING, BEARING
29U-17551-00-00
Unavailable
14
NUT, SPEC''L SHAPE
90179-50416-00
Unavailable
15
O-RING (24W)
93210-56589-00
Unavailable
16
OIL SEAL, S-TYPE
93101-26117-00
Unavailable
17
YOKE, JOINT
29U-17556-01-00
Unavailable
18
NUT(3EF)
90179-12657-00
Unavailable
19
WASHER, PLATE
90201-12027-00
Unavailable
20
BEARING
93316-00604-00
Unavailable
21
CIRCLIP, OUTER
93440-55122-00
Unavailable
22
BOLT (682)
97013-08025-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
BEARING
93399-99920-00
Unavailable
25
CIRCLIP(24H)
99009-17500-00
Unavailable
