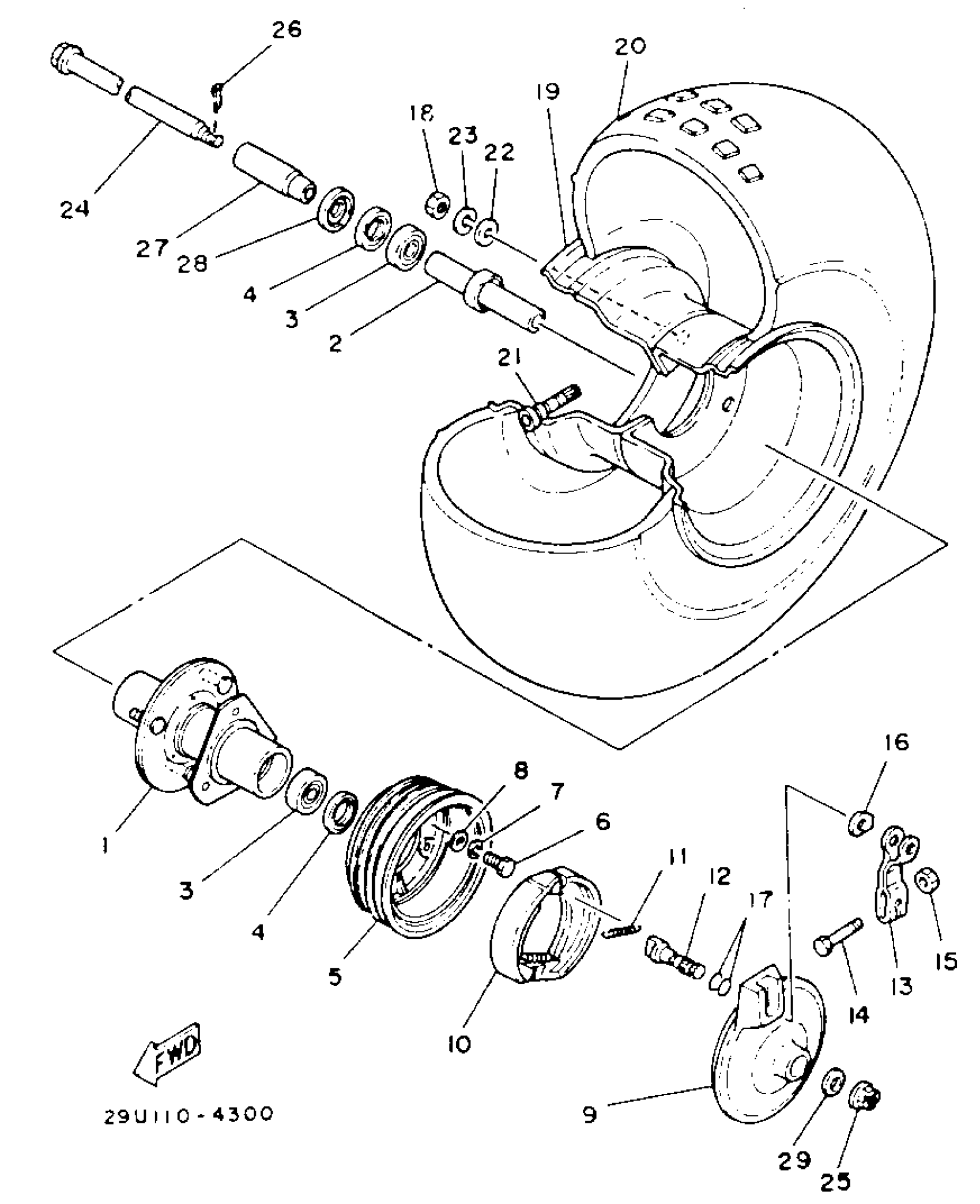

Yamaha YTM225DXK 1983 FRONT WHEEL Diagram
#
Description
Price
1
HUB, FRONT
29U-25111-00-00
Unavailable
2
SPACER, BEARING
29U-25117-00-00
Unavailable
5
DRUM, BRAKE
5V7-2511E-00-35
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
PLATE, BRAKE SHOE
21V-25121-00-35
Unavailable
9
PLATE, BRAKE SHOE
21V-25121-00-98
Unavailable
13
LEVER, CAMSHAFT 1
21V-25155-00-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
PLATE, INDICATOR
5V7-2513A-00-00
Unavailable
17
O-RING (26H)
93210-14579-00
Unavailable
18
NUT(3BM)
95314-10600-00
Unavailable
19
WHEEL, FRONT
29U-25180-00-35
Unavailable
19
WHEEL, FRONT
29U-25180-00-8L
Unavailable
20
22X11-8 KT755 DUN.
94111-083H6-00
Unavailable
21
VALVE, RIM(2GH)
93900-00030-00
Unavailable
22
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
23
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
24
AXLE, WHEEL
29U-25181-00-00
Unavailable
25
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
COLLAR
90387-174G6-00
Unavailable
28
COVER, HUB DUST
5V6-25118-00-00
Unavailable
29
WASHER, PLATE (3Y2)
90201-15785-00
Unavailable
