Description

Price

1

PIPE, EXHAUST L

29U-14611-00-00

Unavailable

2

NUT, RING

5H0-14612-01-00

$16.49

3

MUFFLER 1

29U-14711-03-00

Unavailable

4

GASKET, MUFFLER

4DN-14714-01-00

$65.99

4

GASKET, MUFFLER

4DN-14714-01-00

$65.99

5

BAND, SILENCER

4H7-14788-00-00

Unavailable

6

BOLT, HEXAGON

97017-08025-00

$10.49

7

WASHER(6TA)

92907-08600-00

$3.03

8

PIPE, OUTLET

21V-14752-00-00

Unavailable

9

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

PROTECTOR, EXHAUST PIPE

29U-14628-00-00

Unavailable

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

SCREW, BINDING

98907-06008-00

$8.49

14

WASHER, WAVE(3RW)

90206-06090-00

$8.49

15

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

18

WASHER (853)

90201-08326-00

Unavailable

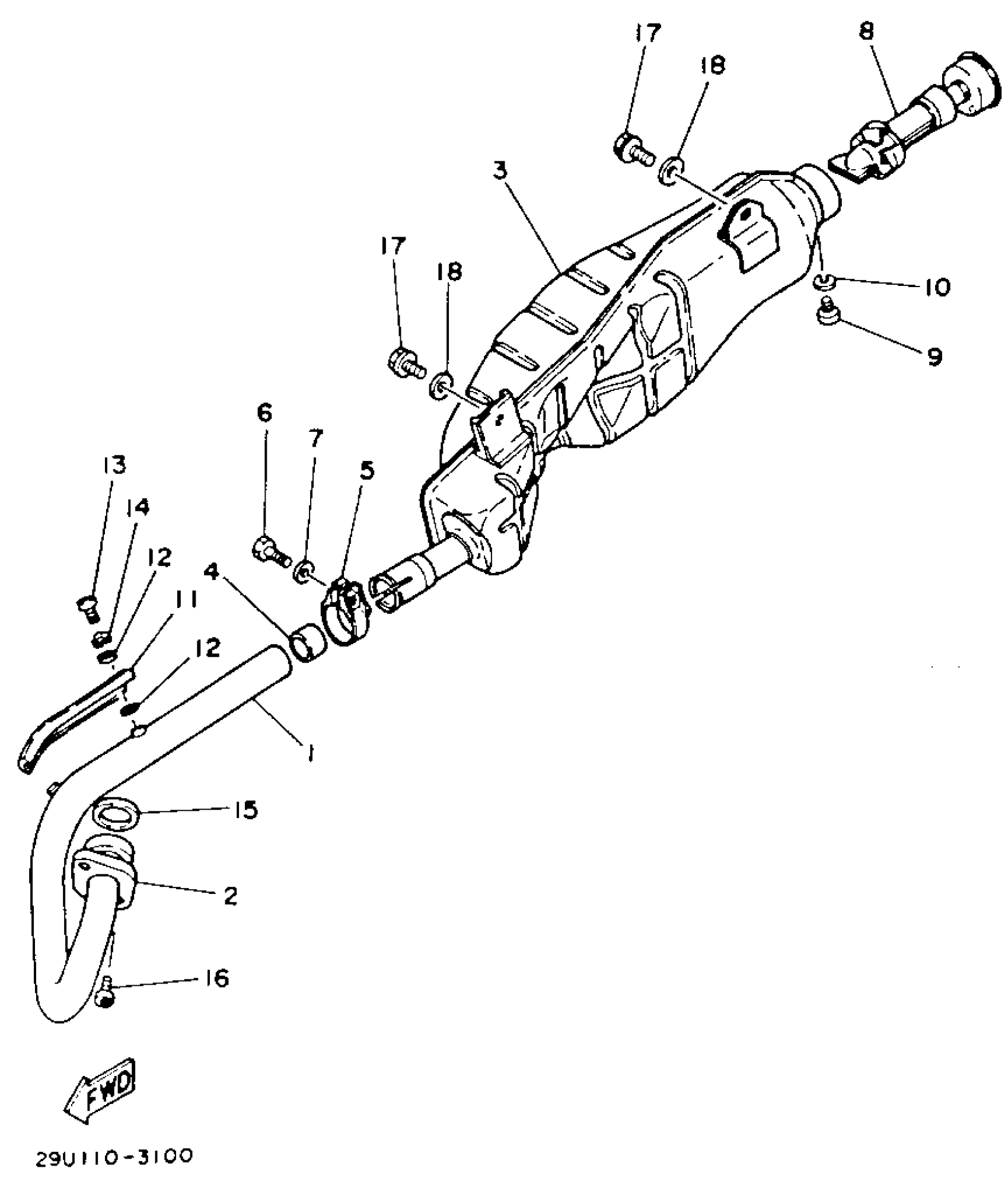

Yamaha YTM225DXK 1983 EXHAUST Diagram

PIPE, EXHAUST L

NUT, RING

MUFFLER 1

GASKET, MUFFLER

GASKET, MUFFLER

BAND, SILENCER

BOLT, HEXAGON

WASHER(6TA)

PIPE, OUTLET

SCREW, PAN HEAD(6A3)

WASHER, SPRING

PROTECTOR, EXHAUST PIPE

WASHER, PLATE(3MB)

SCREW, BINDING

WASHER, WAVE(3RW)

GASKET, EXHAUST PIPE

BOLT,SOCKET

BOLT, FLANGE(8AB)

WASHER (853)
