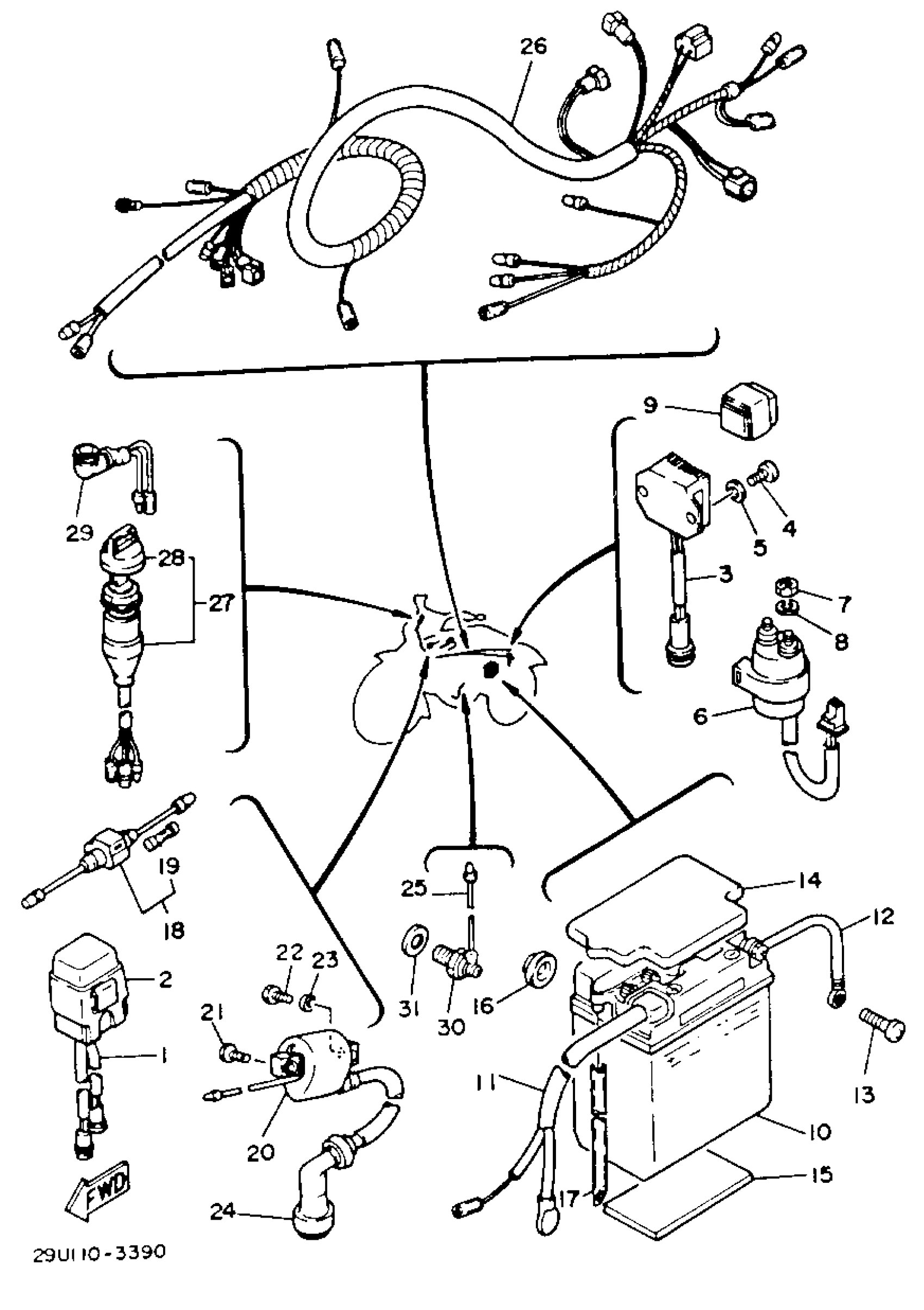

Yamaha YTM225DXK 1983 ELECTRICAL 1 Diagram
#
Description
Price
1
CDI UNIT ASSEMBLY
29U-85540-21-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER/REGULATOR ASSEMBLY
29U-81960-90-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
11
WIRE, PLUS LEAD
29U-82115-00-00
Unavailable
12
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
14
COVER, BATTERY
24W-82129-00-00
Unavailable
16
PAD, BATTERY
371-82121-00-00
Unavailable
17
PIPE, BREATHER
3L5-82112-00-00
Unavailable
18
FUSE HOLDER ASSY
29U-82150-00-00
Unavailable
19
FUSE (10A)
1E6-82151-00-00
Unavailable
20
IGNITION COIL ASSY
1UY-82310-41-00
Unavailable
21
BOLT (21V)
90109-06723-00
Unavailable
22
BOLT(3DM)
97024-06020-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
PLUG CAP ASSY
3NS-82370-00-00
Unavailable
25
WIRE, LEAD
2JX-82541-00-00
Unavailable
26
WIRE HARNESS ASSEMBLY
1EV-82590-60-00
Unavailable
27
MAIN SWITCH ASSEMBLY
2FW-82510-02-00
Unavailable
28
CAP, KEY
24W-82579-00-00
Unavailable
29
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
30
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
30
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
31
GASKET (5R6)
90430-10171-00
Unavailable
