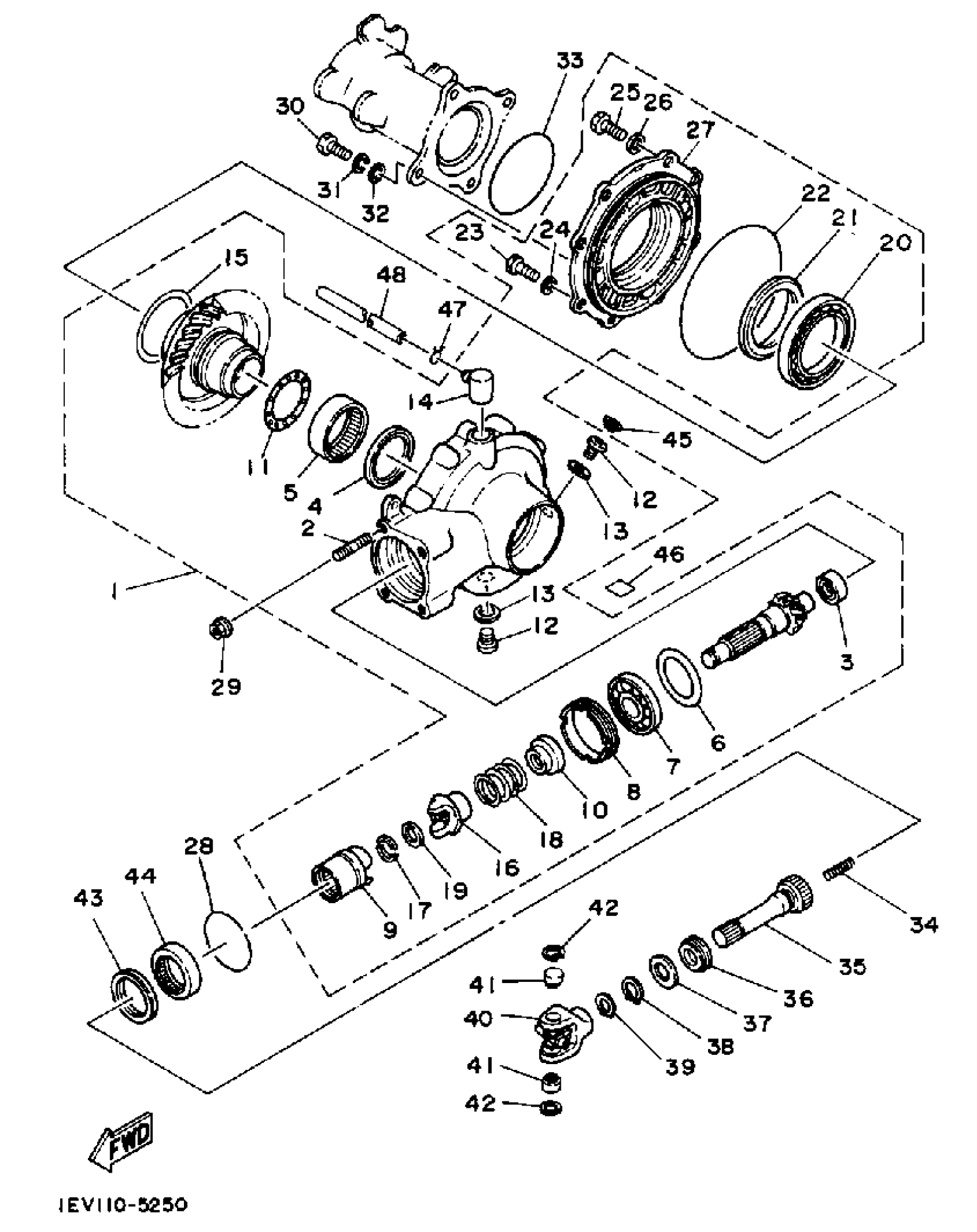

Yamaha YTM225DRS 1986 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASSEMBLY
1EV-46101-01-00
Unavailable
3
. BEARING ASSY
24W-46102-00-00
Unavailable
5
. BEARING, CYLINDER17
93317-55542-00
Unavailable
7
BEARING(3RR)
93306-30560-00
Unavailable
8
. RETAINER, BEARING
24W-46125-00-00
Unavailable
9
. COUPLING, GEAR (52G-46123-00)
1NU-46123-00-00
Unavailable
10
. HOLDER
52G-17524-00-00
Unavailable
11
WASHER, THRUST
24W-46118-00-12
Unavailable
11
WASHER, THRUST
24W-46118-00-16
Unavailable
11
WASHER, THRUST
24W-46118-00-18
Unavailable
11
WASHER, THRUST
24W-46118-00-20
Unavailable
12
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
13
GASKET
214-11198-01-00
Unavailable
14
BREATHER
2H7-17591-01-00
Unavailable
15
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
15
. SHIM, RING GEAR (030T)
24W-46117-00-30
Unavailable
15
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
15
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
16
. CAM, DRIVEN
1EV-17527-00-00
Unavailable
17
. WASHER, THRUST
52G-17529-00-00
Unavailable
18
. SPRING, COMPRESSION
90501-655A6-00
Unavailable
19
WASHER, PLATE (2K7)
90201-17682-00
Unavailable
20
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
21
OIL SEAL (22U)
93102-65277-00
Unavailable
22
O-RING (1J7)
93211-44348-00
Unavailable
23
BOLT (682)
97013-08025-00
Unavailable
24
.. WASHER, PLATE
92990-08600-00
Unavailable
25
BOLT(6TD)
97017-10025-00
Unavailable
26
WASHER, PLATE
92990-10600-00
Unavailable
27
HOUSING, BEARING
(29U-46152-00-00)
Unavailable
28
O-RING (11H)
93210-59531-00
Unavailable
29
NUT, FLANGE
95704-08500-00
Unavailable
30
BOLT(6TD)
97017-10025-00
Unavailable
31
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
32
WASHER, PLATE
92990-10600-00
Unavailable
33
O-RING (173)
93210-85075-00
Unavailable
34
SPRING, COMPRESSION
90501-132A0-00
Unavailable
35
SHAFT, DRIVE
1EV-46172-00-00
Unavailable
36
OIL SEAL, OSO-TYPE
93108-35012-00
Unavailable
37
WASHER, PLATE(3HN)
90201-225M9-00
Unavailable
38
CIRCLIP(52H)
93410-20070-00
Unavailable
39
CIRCLIP(1AR)
99009-20400-00
Unavailable
40
CROSS JOINT COMP.
1EV-46180-00-00
Unavailable
41
BEARING, CYLINDER. (1EV)
93311-21059-00
Unavailable
42
CIRCLIP(1EV)
99009-20500-00
Unavailable
43
OIL SEAL, S-TYPE
93101-40129-00
Unavailable
44
BEARING, CYLINDER.#15
93315-64037-00
Unavailable
45
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
46
LABEL, OIL CAUTION
4H7-46181-10-00
Unavailable
47
CLIP (1J7)
90467-07029-00
Unavailable
48
HOSE (L1700)
90445-070G6-00
Unavailable
