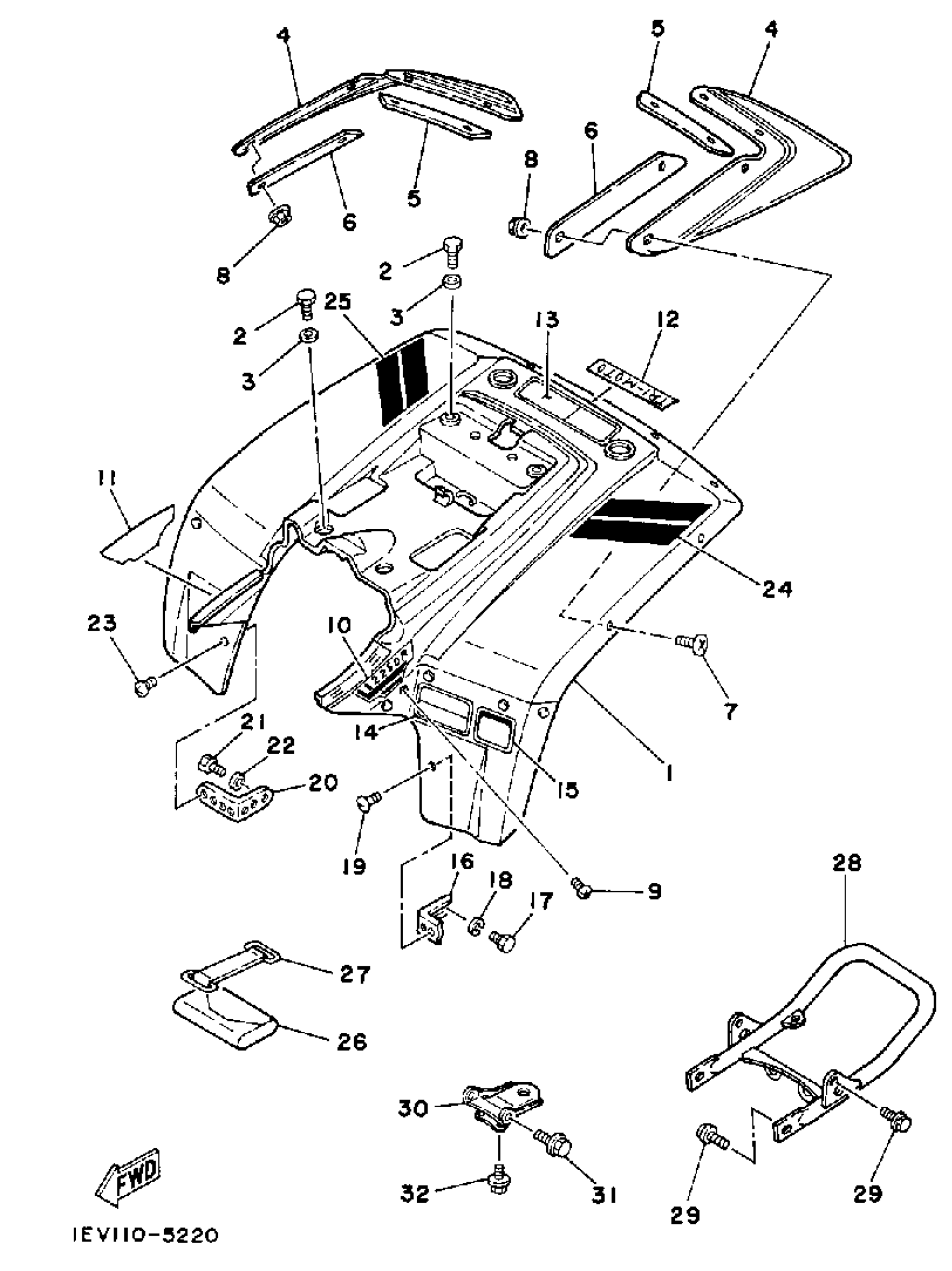

Yamaha YTM225DRN 1985 REAR FENDER Diagram
#
1
REAR FENDER ASSEMBLY
29U-21600-01-00
Unavailable
1
REAR FENDER ASSY
29U-21600-31-00
Unavailable
1
REAR FENDER
2FH-21600-01-00
Unavailable
4
FLAP
29U-21621-00-00
Unavailable
5
PLATE, FLAP FITTING 1
29U-21623-00-00
Unavailable
6
PLATE, FLAP FITTING 2
29U-21624-00-00
Unavailable
10
EMBLEM 1 (COMPETITION YELLOW)
1EV-2163G-00-00
Unavailable
10
EMBLEM 1 (SKY BLUE)
1EV-2163G-20-00
Unavailable
10
EMBLEM 1 (YAMAHA BLACK)
1EV-2163G-30-00
Unavailable
11
EMBLEM 2 (COMPETITION YELLOW)
1EV-2163H-00-00
Unavailable
11
EMBLEM 2 (SKY BLUE)
1EV-2163H-20-00
Unavailable
11
EMBLEM 2 (YAMAHA BLACK)
1EV-2163H-30-00
Unavailable
12
EMBLEM 4
24W-21784-30-00
Unavailable
12
EMBLEM 4
29U-21784-30-00
Unavailable
12
EMBLEM 4
3X3-21784-00-00
Unavailable
13
LABEL, SAFETY
(1EV-21659-00-00)
Unavailable
13
LABEL, SAFETY (YAMAHA BLACK)
(1EV-21659-30-00)
Unavailable
14
LABEL, CAUTION
52G-21696-00-00
Unavailable
15
LABEL, CAUTION
1EV-24877-00-00
Unavailable
16
STAY, FENDER 1
29U-21613-00-00
Unavailable
17
BOLT (661)
97013-06012-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
20
STAY, FENDER 2
29U-21614-00-00
Unavailable
21
BOLT (661)
97013-06012-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
24
GRPHC, R/FNDR CVR L
1EV-21661-00-00
Unavailable
24
GRPHC, R/FNDR CVR L (YAMAHA BLACK)
1EV-21661-30-00
Unavailable
25
GRPHC, R/FNDR CVR R
1EV-21662-00-00
Unavailable
25
GRPHC, R/FNDR CVR R (YAMAHA BLACK)
1EV-21662-30-00
Unavailable
26
TOOL KIT (24W-28100-00)
59V-28100-00-00
Unavailable
27
BAND, TOOL
21V-21376-00-00
Unavailable
28
BUMPER, REAR 1
2FW-28421-10-00
Unavailable
29
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
30
HOOK
29U-28488-00-00
Unavailable
31
BOLT, WASHER BASED (7H3)
90105-10147-00
Unavailable
32
BOLT, FLANGE
95817-08012-00
Unavailable
