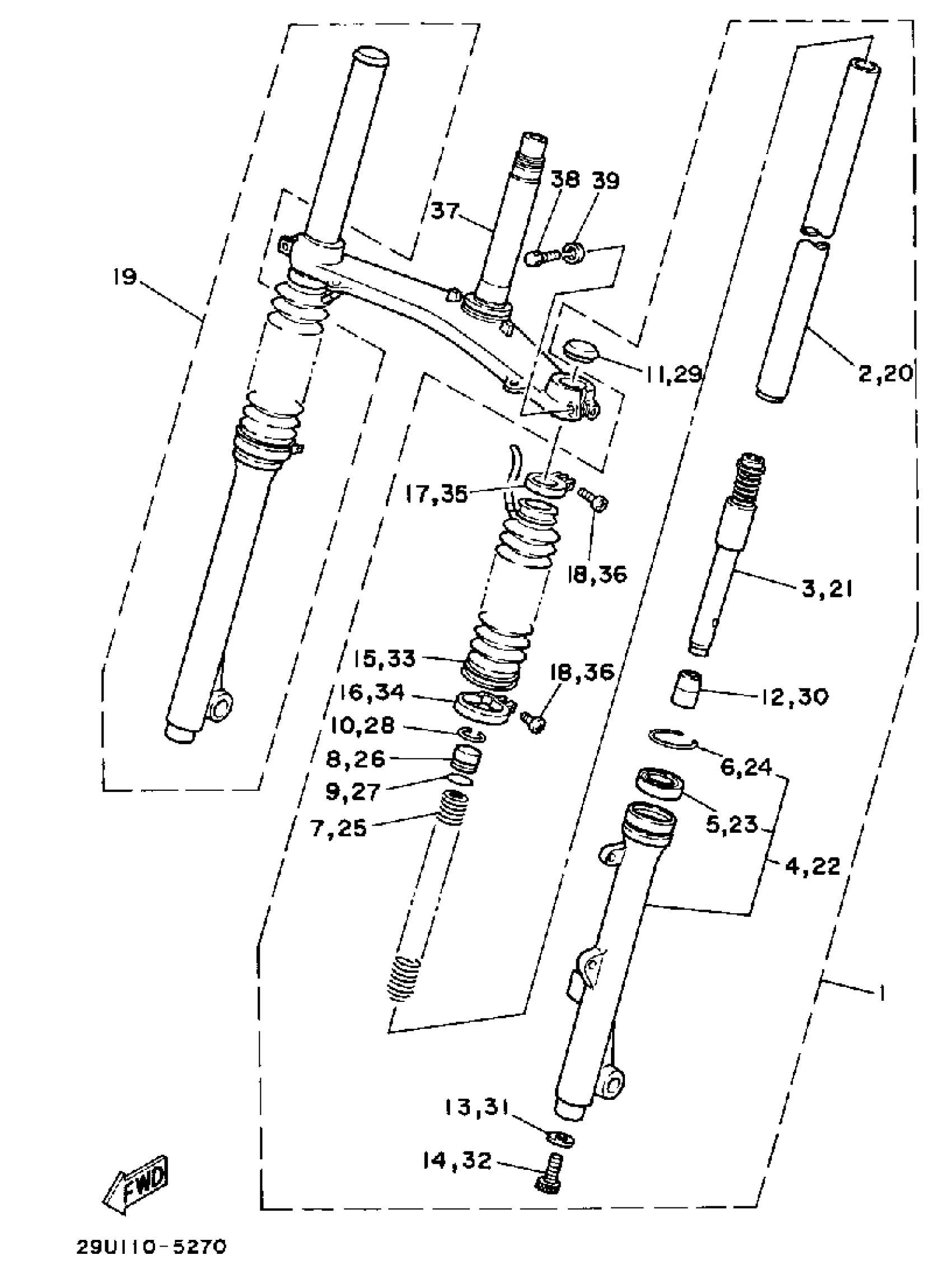

Yamaha YTM225DRN 1985 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY LASSEMBLY (L.H.)
29U-23102-00-35
Unavailable
1
FRONT FORK ASSEMBLY L
29U-23102-00-98
Unavailable
2
. INNER TUBE 1COMP 1
29U-23110-00-00
Unavailable
3
. CYLINDER, FRTFRKFRONT FORK
29U-23170-00-00
Unavailable
4
. OUTER TUBE LHCOMP (LH)
29U-23106-00-35
Unavailable
4
. OUTER TUBE LH
29U-23106-00-98
Unavailable
5
OIL SEAL (10W)
93110-30013-00
Unavailable
7
. SPRING, FRONT FORK
29U-23141-00-00
Unavailable
12
. SPINDLE, TAPER
5H5-23173-00-00
Unavailable
13
. GASKET
90430-08143-00
Unavailable
14
BOLT,SOCKET
91314-08025-00
Unavailable
15
. BOOT
29U-2312A-00-00
Unavailable
16
. CLAMP, HOSE
90460-52259-00
Unavailable
17
CLAMP, HOSE(20E)
90460-35260-00
Unavailable
18
SCREW, PAN HEAD
98517-04020-00
Unavailable
19
FRONT FORK ASSEMBLY RASSEMBLY (R.H.)
29U-23103-00-35
Unavailable
19
FRONT FORK ASSEMBLY R
29U-23103-00-98
Unavailable
20
. INNER TUBE 1COMP 1
29U-23110-00-00
Unavailable
21
. CYLINDER, FRTFRKFRONT FORK
29U-23170-00-00
Unavailable
22
. OUTER TUBE RHCOMP (RH)
29U-23107-00-35
Unavailable
22
. OUTER TUBE RH
29U-23107-00-98
Unavailable
23
OIL SEAL (10W)
93110-30013-00
Unavailable
25
. SPRING, FRONT FORK
29U-23141-00-00
Unavailable
30
. SPINDLE, TAPER
5H5-23173-00-00
Unavailable
31
. GASKET
90430-08143-00
Unavailable
32
BOLT,SOCKET
91314-08025-00
Unavailable
33
. BOOT
29U-2312A-00-00
Unavailable
34
. CLAMP, HOSE
90460-52259-00
Unavailable
35
CLAMP, HOSE(20E)
90460-35260-00
Unavailable
36
SCREW, PAN HEAD
98517-04020-00
Unavailable
37
UNDER BRACKETCOMP.
29U-23340-10-00
Unavailable
38
BOLT(N02)
97070-10035-00
Unavailable
39
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
