Description

Price

1

FRAME

(1EV-21110-00-33)

Unavailable

2

STAY, ENGINE 2

29U-21315-00-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$5.49

4

BOLT, FLANGE

95817-08050-00

$2.44

5

WASHER, PLATE (33N)

90201-094G1-00

$9.49

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

7

BOLT, FLANGE

95814-08065-00

$4.99

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

10

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

11

WASHER, PLATE (33N)

90201-094G1-00

$9.49

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

13

PROTECTOR, ENGINE

29U-21471-00-33

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

BOLT, FLANGE

95817-06012-00

$1.43

16

BOX

1EV-21170-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

$1.43

18

SCREW (5G3)

90153-06034-00

Unavailable

19

COVER 2

3FC-2139R-00-00

Unavailable

20

BOX

24W-21245-00-00

Unavailable

21

COVER 2

3FC-2139R-00-00

Unavailable

22

BOLT, WITH WASHER

90119-06152-00

Unavailable

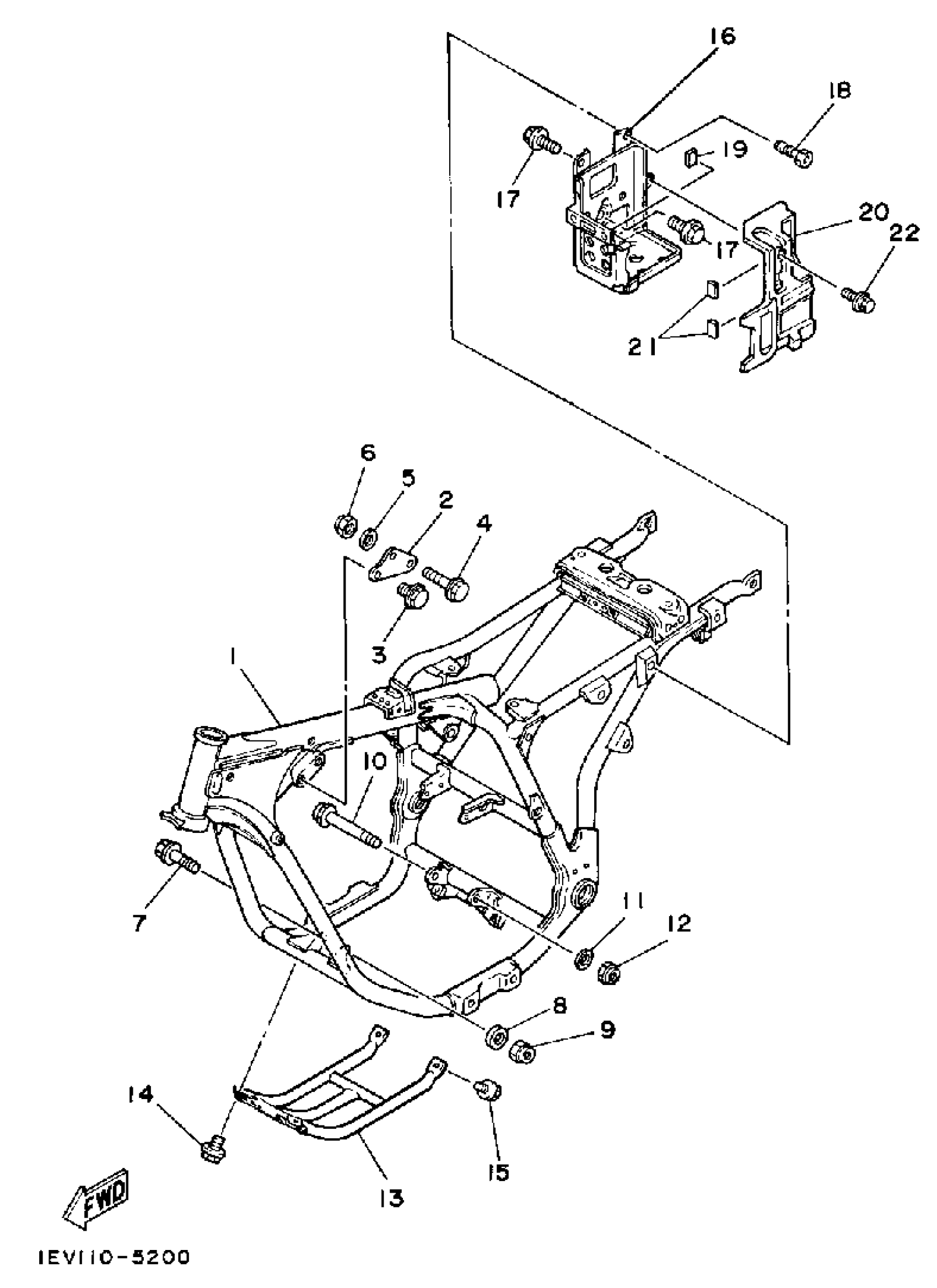

Yamaha YTM225DRN 1985 FRAME Diagram

FRAME

STAY, ENGINE 2

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

BOLT, FLANGE

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

BOLT, FLANGE(4BD)

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

PROTECTOR, ENGINE

BOLT, FLANGE

BOLT, FLANGE

BOX

BOLT, FLANGE

SCREW (5G3)

COVER 2

BOX

COVER 2

BOLT, WITH WASHER
