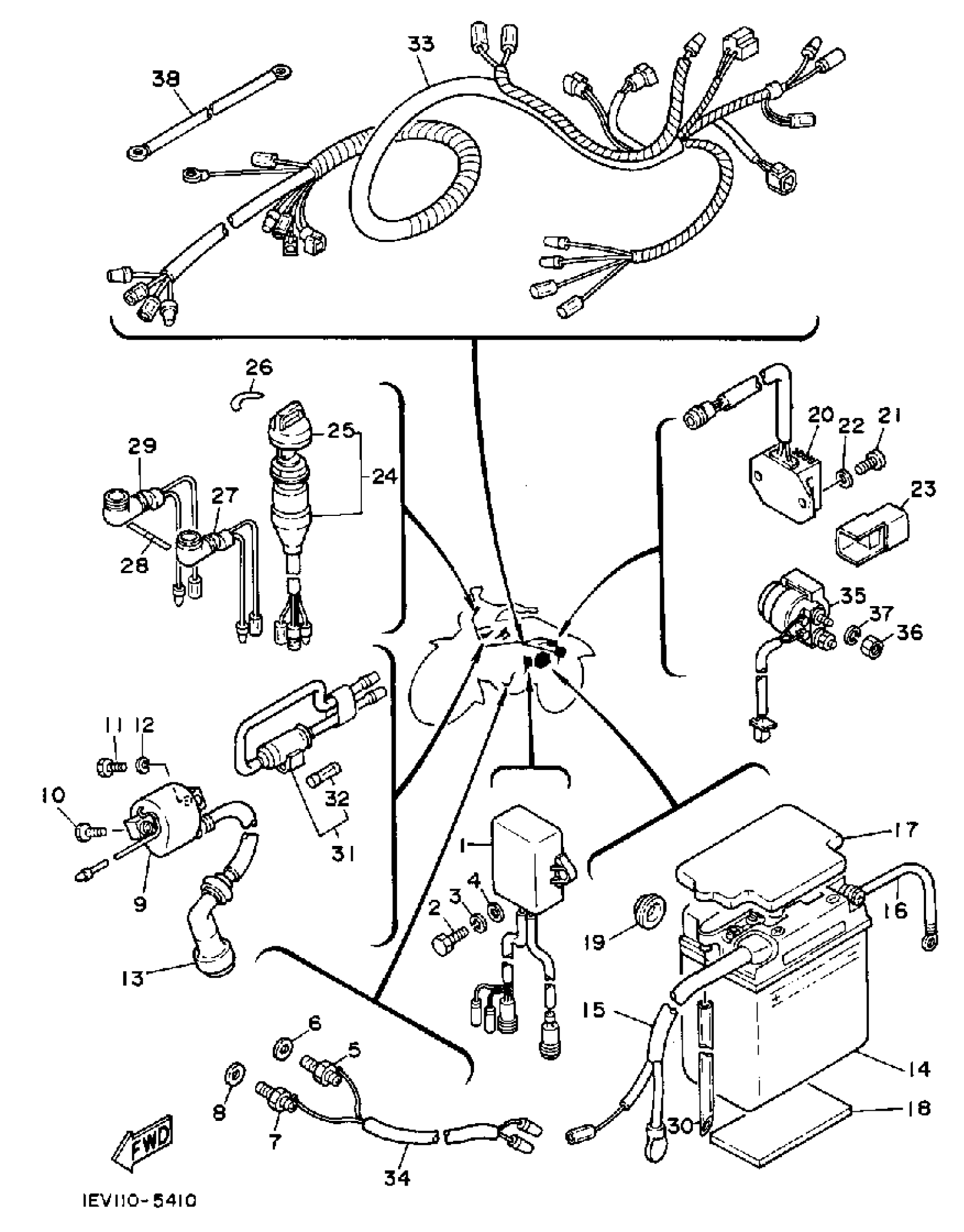

Yamaha YTM225DRN 1985 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

1EV-85540-20-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

NEUTRAL SWITCH ASSY

136-82540-03-00

$31.99

WASHER, PLATE

90201-12790-00

$9.49

IGNITION COIL ASSY

1UY-82310-41-00

$186.99

BOLT (21V)

90109-06723-00

$8.49

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

3NS-82370-00-00

$37.99

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

WIRE, PLUS LEAD

29U-82115-00-00

Unavailable

WIRE, MINUS LEAD

29U-82116-00-00

Unavailable

COVER, BATTERY

24W-82129-00-00

Unavailable

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

PAD, BATTERY

371-82121-00-00

Unavailable

RECTIFIER/REGULATOR ASSEMBLY

29U-81960-90-00

Unavailable

SCREW, PAN

98507-06014-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

MAIN SWITCH ASSEMBLY

2FW-82510-02-00

Unavailable

CAP, KEY

24W-82579-00-00

Unavailable

LABEL

29U-83585-10-00

Unavailable

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

LABEL

52H-83585-00-00

Unavailable

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

PIPE, BREATHER

3L5-82112-00-00

Unavailable

FUSE HOLDER ASSY

29U-82150-00-00

Unavailable

FUSE (10A)

1E6-82151-00-00

Unavailable

WIRE HARNESS ASSEMBLY

1EV-82590-60-00

Unavailable

WIRE, LEAD

52G-82541-00-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable
