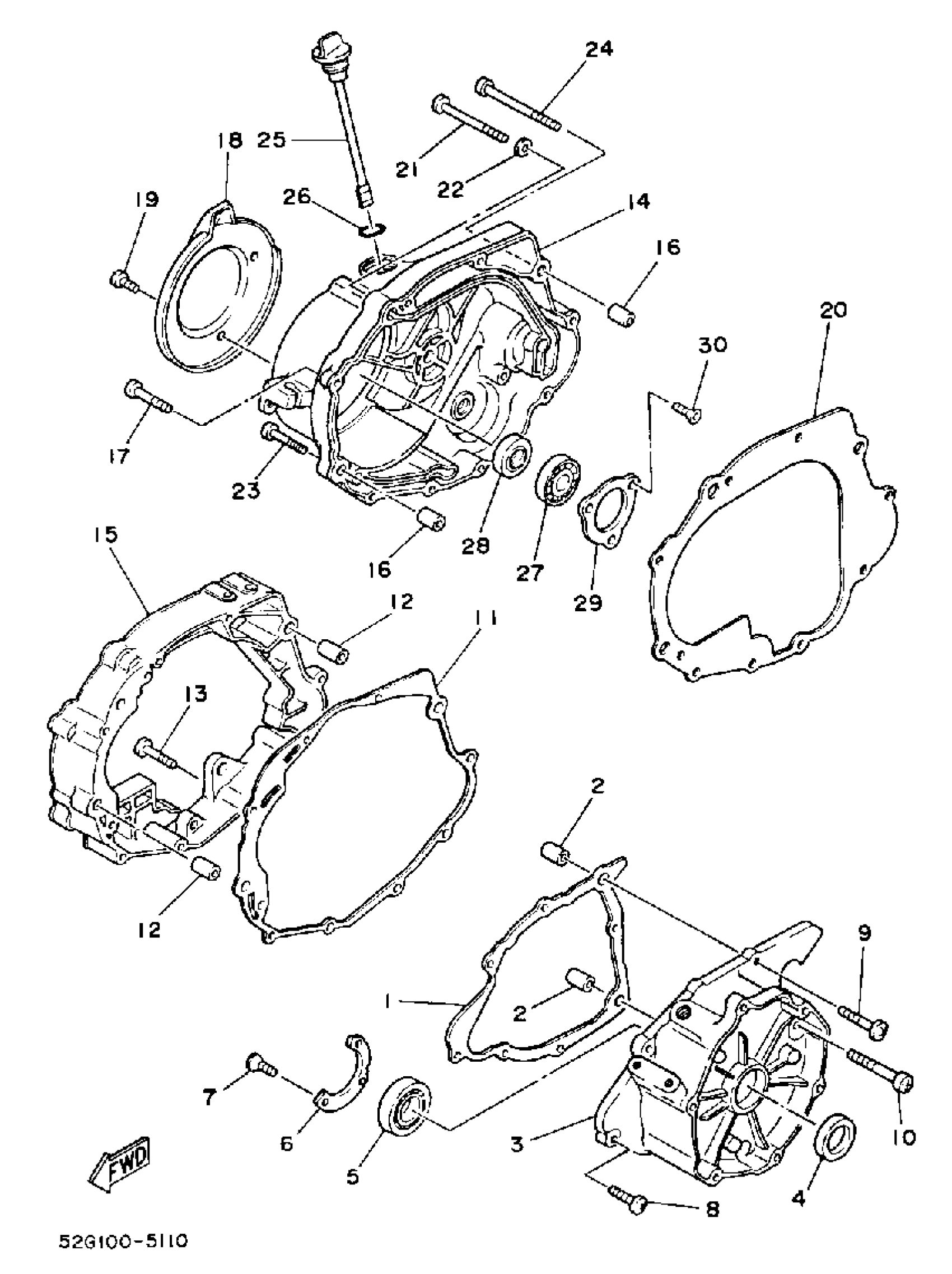

Yamaha YTM225DRN 1985 CRANKCASE COVER 1 Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

4BD-15451-01-00

$18.49

2

PIN, DOWEL

99530-12016-00

$4.89

3

ADAPTOR

52G-15787-00-00

Unavailable

4

OIL SEAL (21V)

93103-28141-00

$17.99

5

BEARING(55X)

93306-07801-00

$55.99

6

WASHER, THRUST

21V-15719-00-00

Unavailable

7

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06040-00

$3.22

10

SCREW, PAN

98507-06060-00

$7.99

11

GASKET, CRANKCASE COVER 3

4BD-15462-00-00

$31.99

12

PIN, DOWEL

99530-12016-00

$4.89

13

SCREW PAN HEAD

98580-06040-00

$8.49

14

COVER,CRANKCASE 3

99999-02617-00

Unavailable

15

SPACER, ENGINE

21V-15317-01-00

Unavailable

16

PIN, DOWEL

99530-12016-00

$4.89

17

SCREW, PAN

98507-06040-00

$3.22

18

PROTECTOR, COVER

21V-15499-00-00

Unavailable

19

SCREW, BINDING

98907-06014-00

Unavailable

20

GASKET, CARBURETOR COVER 2

4BD-15463-01-00

Unavailable

21

SCREW, PAN HEAD

98507-06070-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

SCREW, PAN

98507-06040-00

$3.22

24

SCREW, PAN

98507-06080-00

Unavailable

25

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

26

O-RING (646)

93210-19123-00

Unavailable

27

BEARING(37F)

93306-20335-00

Unavailable

28

OIL SEAL (21V)

93101-17113-00

Unavailable

29

PLATE, BEARING COVER

21V-15381-00-00

Unavailable

30

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable
