Description

Price

1

CRANKCASE ASSEMBLY

(1EV-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06035-00

Unavailable

6

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

7

SCREW PAN HEAD

98580-06040-00

$8.49

8

SCREW, BIND (JH1)

98580-06560-00

Unavailable

9

SCREW, PAN

98507-06085-00

$6.99

10

BOLT

91317-06160-00

Unavailable

11

SCREW PAN HEAD

98580-06575-00

$12.49

12

PIPE, BREATHER 1

29U-11166-00-00

Unavailable

13

CLIP(3TB)

90467-17128-00

$8.49

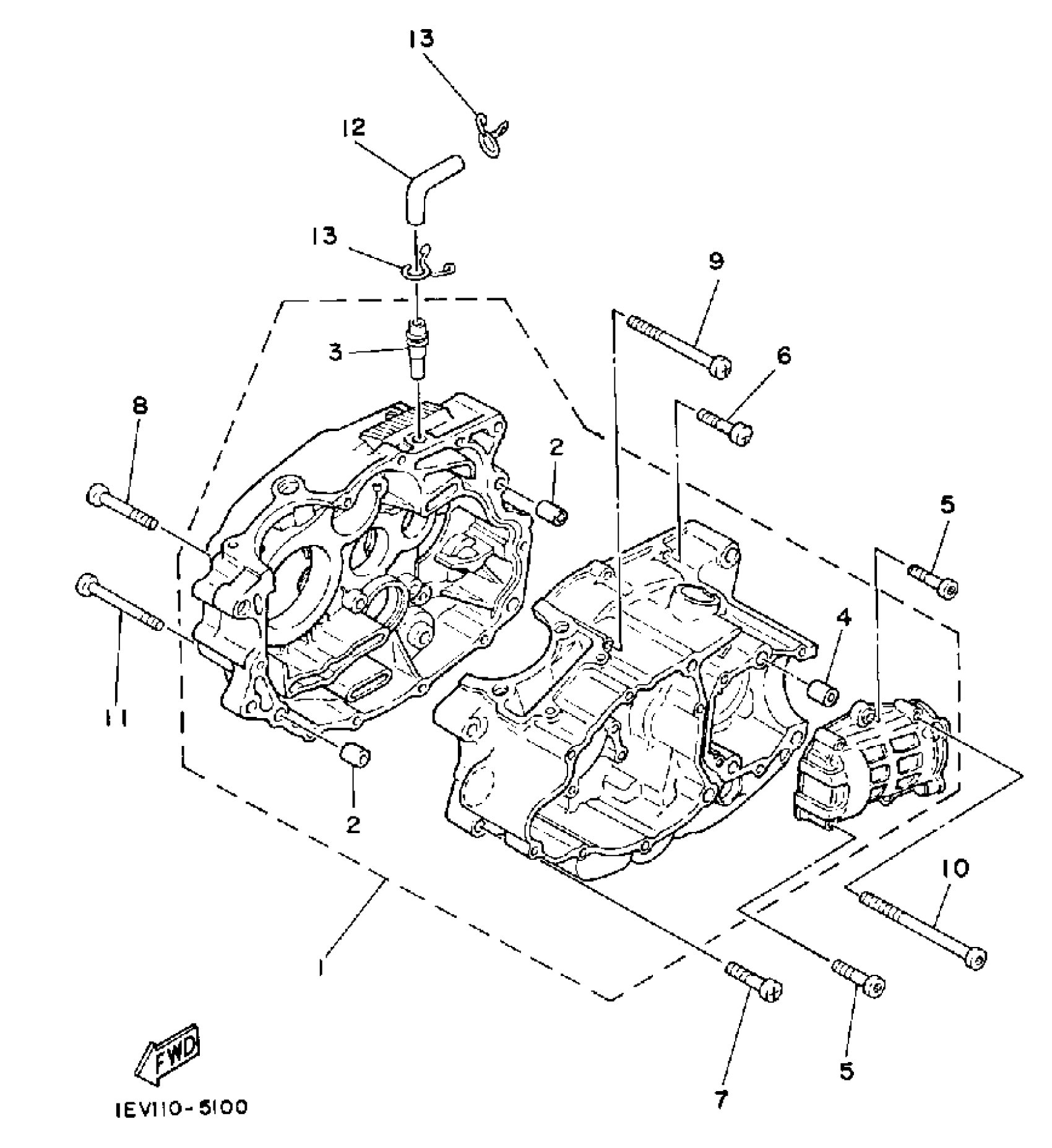

Yamaha YTM225DRN 1985 CRANKCASE Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

PIPE, BREATHER 2

PIN, DOWEL(3VD)

BOLT,SOCKET

SCREW, PAN HEAD(6E0)

SCREW PAN HEAD

SCREW, BIND (JH1)

SCREW, PAN

BOLT

SCREW PAN HEAD

PIPE, BREATHER 1

CLIP(3TB)
