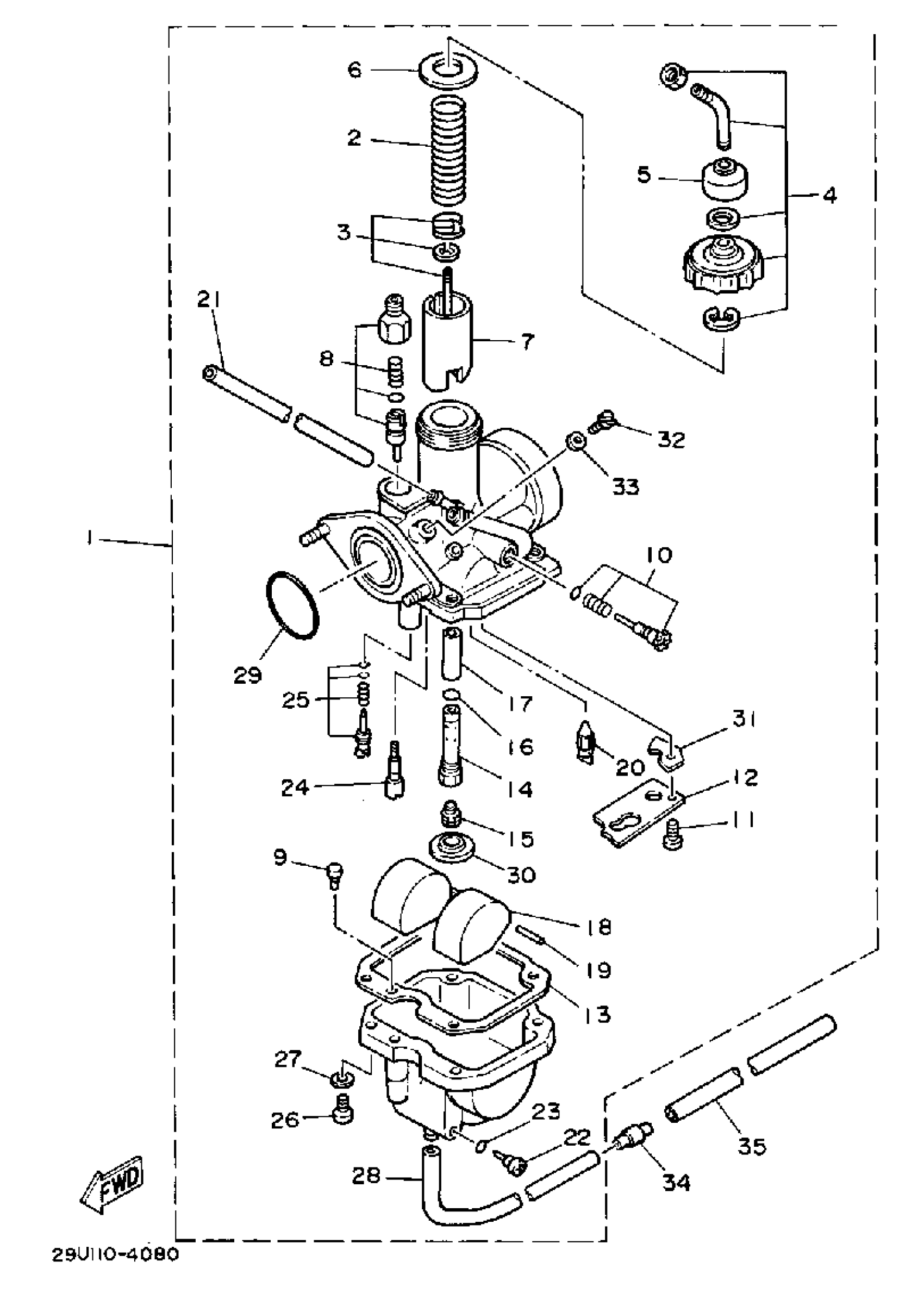

Yamaha YTM225DRN 1985 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

29U-14101-03-00

Unavailable

2

. SPRING, THROTTLE VALVE

21V-14131-00-00

Unavailable

3

. NEEDLE SET

29U-1490J-00-00

Unavailable

4

. CABLE ADJUST SCREW SET

29U-14106-00-00

Unavailable

5

CAP

3X3-14169-00-00

$16.49

6

GASKET

4U5-14126-00-00

Unavailable

7

. VALVE, THROTTLE 1

29U-14112-35-00

Unavailable

8

STARTER PLUNGER SET

21V-1410A-00-00

$106.99

9

JET, STARTER

(18M-14144-18-00)

Unavailable

10

THROTTLE SCREW SET

18G-14103-00-00

$27.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

PLATE

21V-14146-00-00

$15.49

13

GASKET, FLOAT CHAMBER

24W-14184-00-00

$22.99

14

NOZZLE, MAIN

21V-14141-28-00

Unavailable

15

JET, MAIN (#110)

620-14231-22-A0

$13.49

16

O-RING

583-14561-00-00

Unavailable

17

. JET, HOLDER

21V-14148-00-00

Unavailable

18

FLOAT

21V-14185-00-00

Unavailable

19

PIN, FLOAT

127-14186-00-00

Unavailable

20

NEEDLE VALVE ASSY

5HH-14190-18-00

Unavailable

21

PIPE

26H-14197-01-00

Unavailable

22

SCREW

2L1-14191-00-00

Unavailable

23

O-RING

214-14147-00-00

Unavailable

24

JET, PILOT (# 20)

3H1-14142-20-00

Unavailable

25

PILOT SCREW SET

21V-14105-00-00

Unavailable

26

SCREW, PAN HEAD

98517-04016-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

28

HOSE (L1500)

90445-084J0-00

Unavailable

29

O-RING

29U-14147-00-00

Unavailable

30

WASHER, MAIN JET

5V7-14153-00-00

Unavailable

31

. PLATE

24W-14146-00-00

Unavailable

32

.. PLUG, SCREW

341-14991-00-00

Unavailable

33

.. WASHER, PLUG SCREW

584-14956-00-00

Unavailable

34

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
