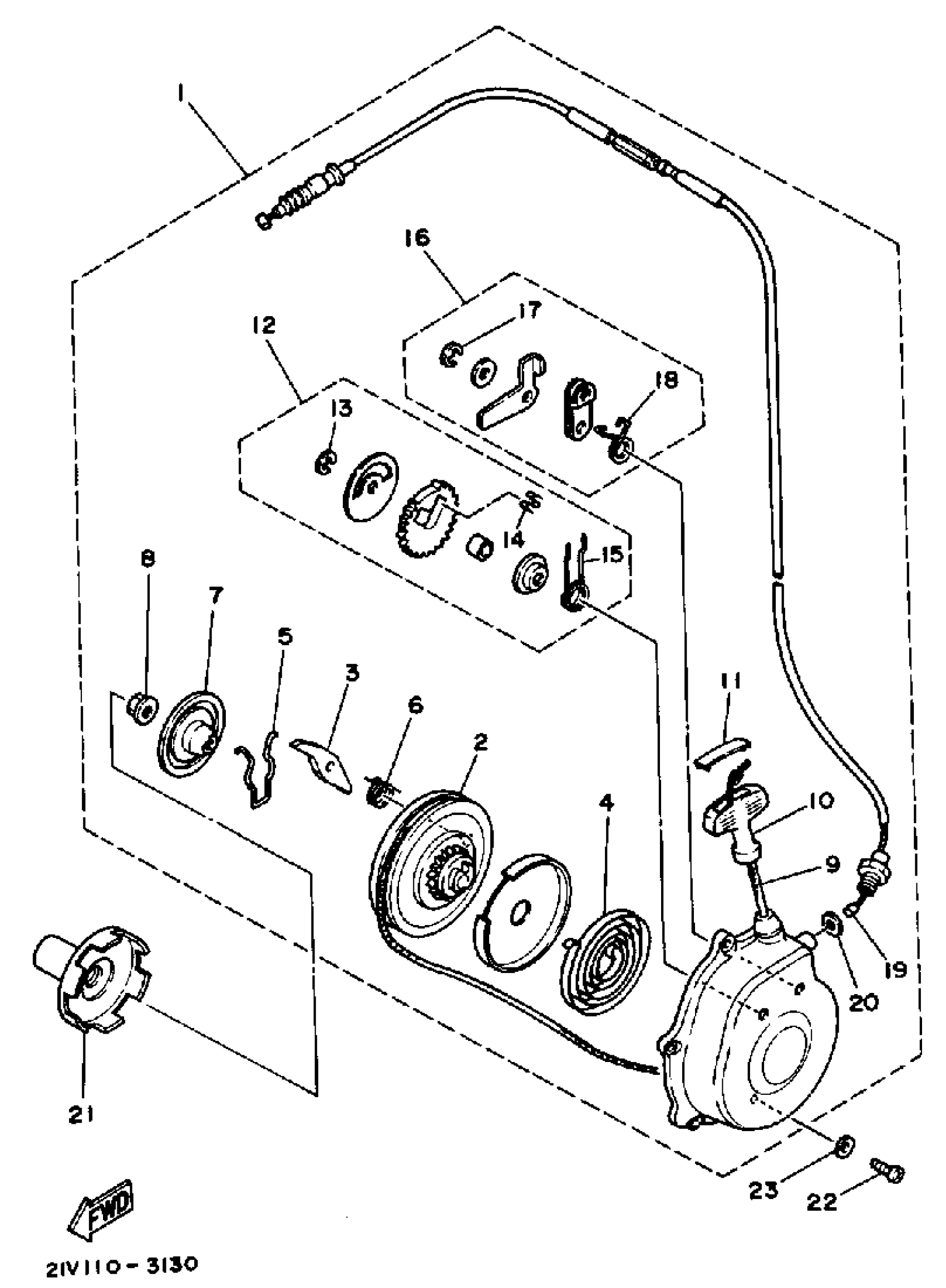

Yamaha YTM200N 1985 STARTER Diagram
#
Description
Price
1
STARTER ASSEMBLY (21V-Y1571-00)
21V-Y1571-01-00
Unavailable
2
. DRUM, SHEAVE
21V-15714-00-00
Unavailable
12
. STARTER GEAR SET (21V-W1562-00)
21V-W1562-01-00
Unavailable
14
.. DAMPER (21V-15789-00)
21V-15789-01-00
Unavailable
15
.. SPRING, RETURN (21V-15734-00)
21V-15734-01-00
Unavailable
16
DECOMP. LEVER SET
21V-W1572-00-00
Unavailable
18
.. SPRING, RETURN
21V-15784-00-00
Unavailable
19
. CABLE, DCOMP
21V-12292-00-00
Unavailable
20
WASHER, PLATE (4L0)
90201-082A6-00
Unavailable
21
PULLEY, STARTER
21V-15723-00-00
Unavailable
22
SCREW, PAN
98517-06020-00
Unavailable
23
GASKET 838153840000
90430-06016-00
Unavailable
