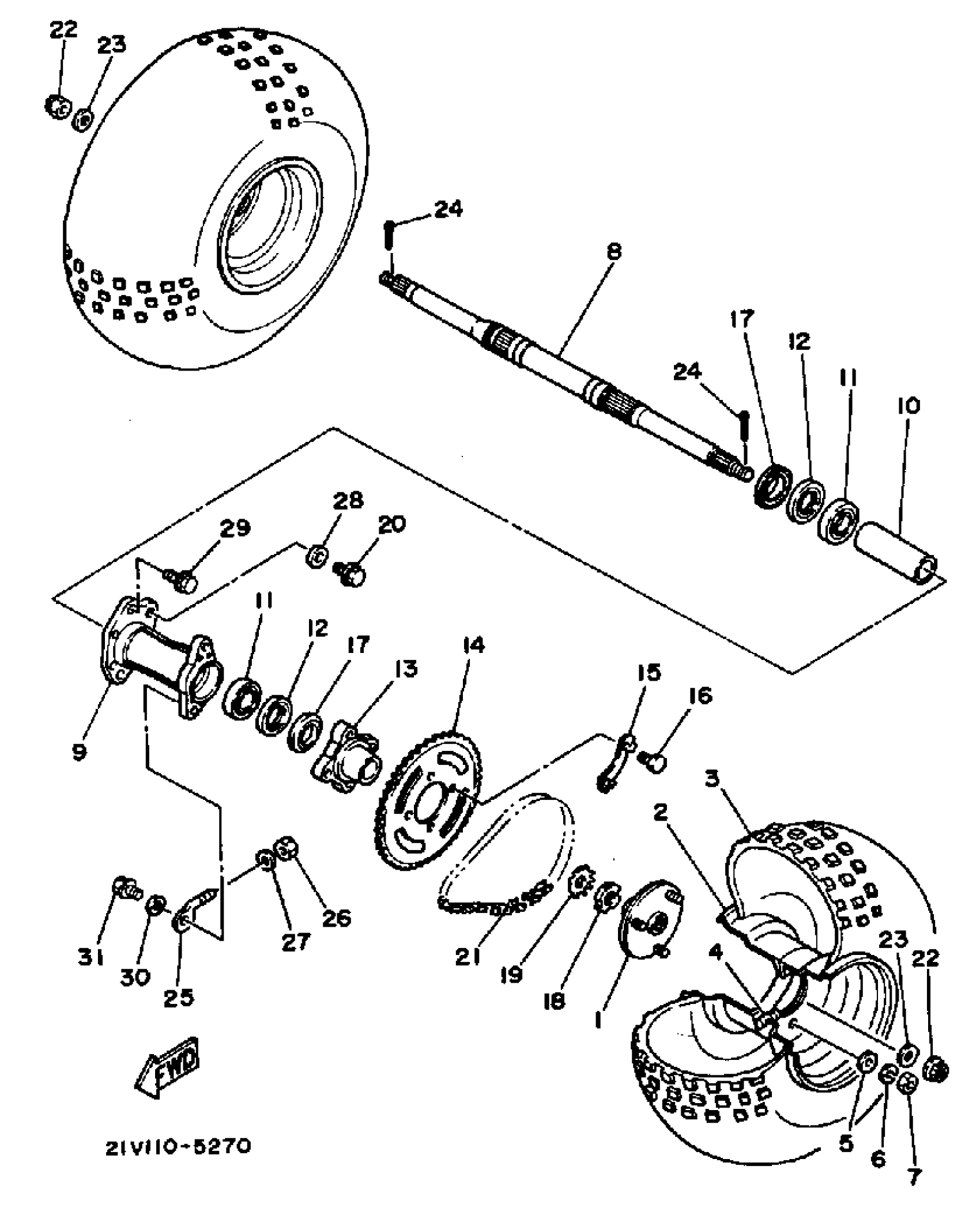

Yamaha YTM200N 1985 REAR WHEEL Diagram
#
Description
Price
1
COLLAR, WHEEL (3X3-25383-00)
5V7-25383-00-00
Unavailable
2
WHEEL, FRONT
29U-25180-00-35
Unavailable
3
22X11.00-8 KT221TL
94122-11572-00
Unavailable
8
AXLE, WHEEL
21V-25381-02-00
Unavailable
9
HUB, REAR
21V-25311-01-00
Unavailable
10
SPACER (21V) (21V-25317-00)
90560-40308-00
Unavailable
11
BEARING
93306-00803-00
Unavailable
12
OIL SEAL (21V)
93102-46274-00
Unavailable
13
BOSS
21V-25521-01-00
Unavailable
14
SPROCKET, DRVN 42T
21V-25442-20-00
Unavailable
16
BOLT,HEXAGON
97017-10016-00
Unavailable
17
COVER, HUB DUST
21V-25367-00-00
Unavailable
18
NUT, SPEC''L SHAPE
90179-38392-00
Unavailable
19
WASHER, LOCK
90215-39207-00
Unavailable
20
BOLT,WITH WASHER
90119-10078-00
Unavailable
21
520 D0-60L (94560-47060)
94581-18060-00
Unavailable
22
NUT, CASTLE (29U)
90171-14037-00
Unavailable
23
WASHER, PLATE
90201-140A6-00
Unavailable
24
PIN, COTTER
91490-30030-00
Unavailable
25
PULLER, CHAIN 1
21V-25388-00-00
Unavailable
26
NUT, U
95617-08100-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
29
BOLT(N02)
97070-10035-00
Unavailable
31
BOLT,WITH WASHER
90119-10078-00
Unavailable
