Description

Price

1

HOLDER, LEVER 1

5F6-82911-00-00

Unavailable

2

LEVER 1

23X-83912-02-00

$27.99

3

LEVER, LOCK

3X3-83965-00-00

$30.99

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$8.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

H0LDER, LEVER 2

38V-82921-00-00

$42.99

10

LEVER R

23X-83922-01-00

$27.99

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

BOLT(3GB)

90109-061F3-00

$7.49

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW, PAN HEAD

98517-05020-00

$4.25

15

WASHER(3SX)

92907-05100-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

SWITCH, HANDLE 2

21V-83975-09-00

Unavailable

18

SCREW, PAN HEAD

98517-05030-00

Unavailable

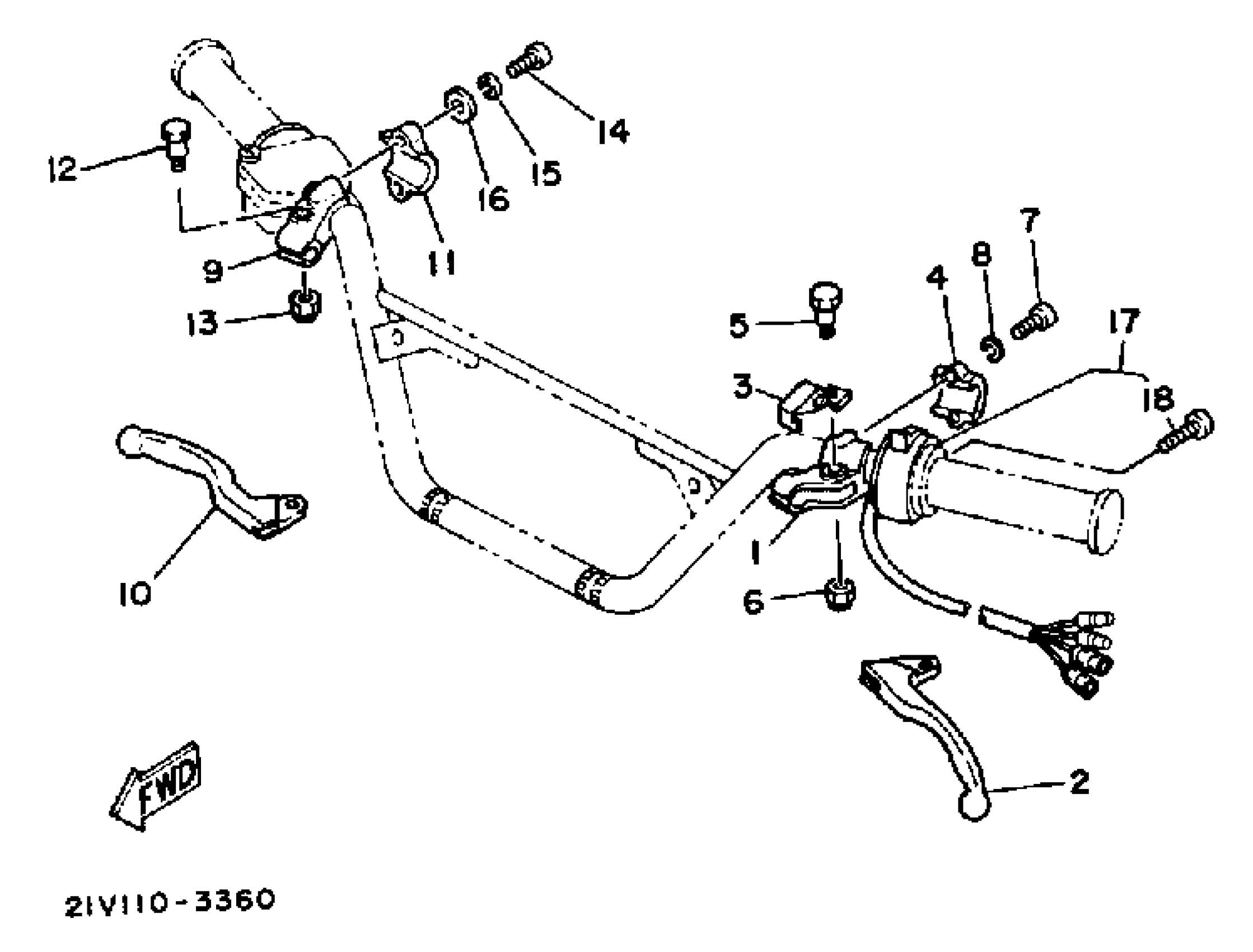

Yamaha YTM200N 1985 HANDLE SWITCH-LEVER Diagram

HOLDER, LEVER 1

LEVER 1

LEVER, LOCK

HOLDER, LEVER LOWER

BOLT(1FG)

NUT, SELF-LOCKING

SCREW, PAN HEAD

WASHER(3SX)

H0LDER, LEVER 2

LEVER R

HOLDER, LEVER LOWER

BOLT(3GB)

NUT, SELF-LOCKING

SCREW, PAN HEAD

WASHER(3SX)

WASHER, PLATE 1562722600

SWITCH, HANDLE 2

SCREW, PAN HEAD
