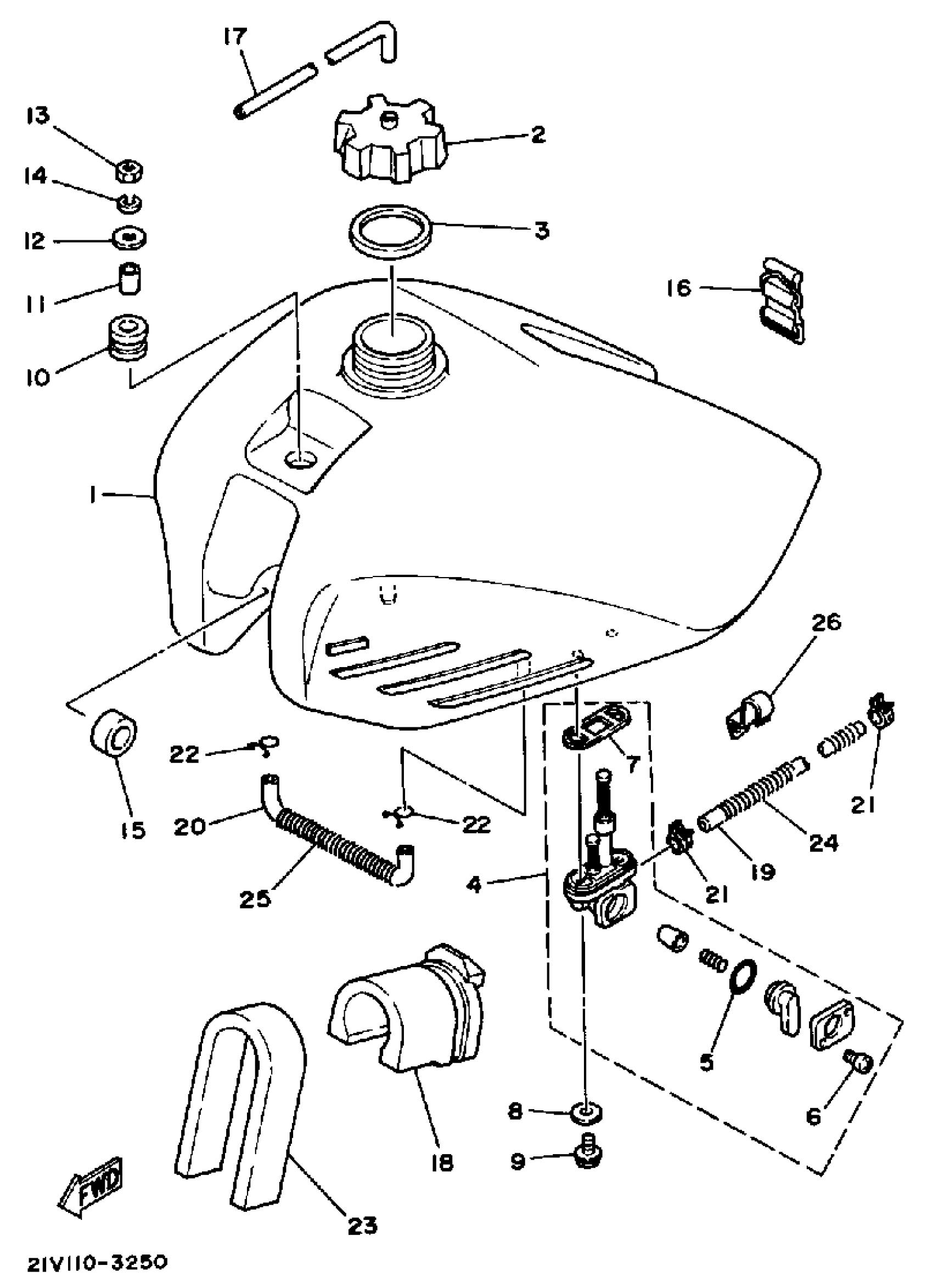

Yamaha YTM200N 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

21V-24111-00-00

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

5

O-RING

4X8-24534-00-00

$13.49

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

O-RING

4X8-24512-00-00

$8.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (1T2)

90387-07598-00

$5.60

12

WASHER, PLATE

90201-06747-00

$8.49

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

DAMPER, TANK LOCATING 1

2J2-24181-00-00

$7.99

16

BAND, TANK FITTING 1

59V-24173-00-00

Unavailable

17

HOSE (L1500)

90445-090F6-00

Unavailable

18

DAMPER, LOCATING 1

(21V-24181-00-00)

Unavailable

19

HOSE (L400)

90445-116K9-00

Unavailable

20

PIPE, LEVEL

21V-24331-00-00

Unavailable

21

CLIP

90467-11028-00

Unavailable

22

CLIP 101235600

90467-08003-00

Unavailable

23

DAMPER, LOCATING 3

21V-24183-00-00

Unavailable

24

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

25

SPRING, COMPRESSION

90501-085L6-00

Unavailable

26

CLAMP 1

(21V-24135-00-00)

Unavailable
