Description

Price

1

FRAME

(21V-21110-01-33)

Unavailable

2

STAY, ENGINE 3

(21V-21316-00-00)

Unavailable

3

STAY, ENGINE 4

(21V-21317-00-00)

Unavailable

4

BOLT, FLANGE

95814-08065-00

$4.99

5

BOLT, FLANGE

95817-08075-00

$4.82

6

WASHER, PLATE (33N)

90201-094G1-00

$9.49

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

STAY, ENGINE 2

24W-21315-00-00

Unavailable

9

BOLT, FLANGE

95817-08050-00

$2.44

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

BOLT (1W1)

90105-08099-00

$5.60

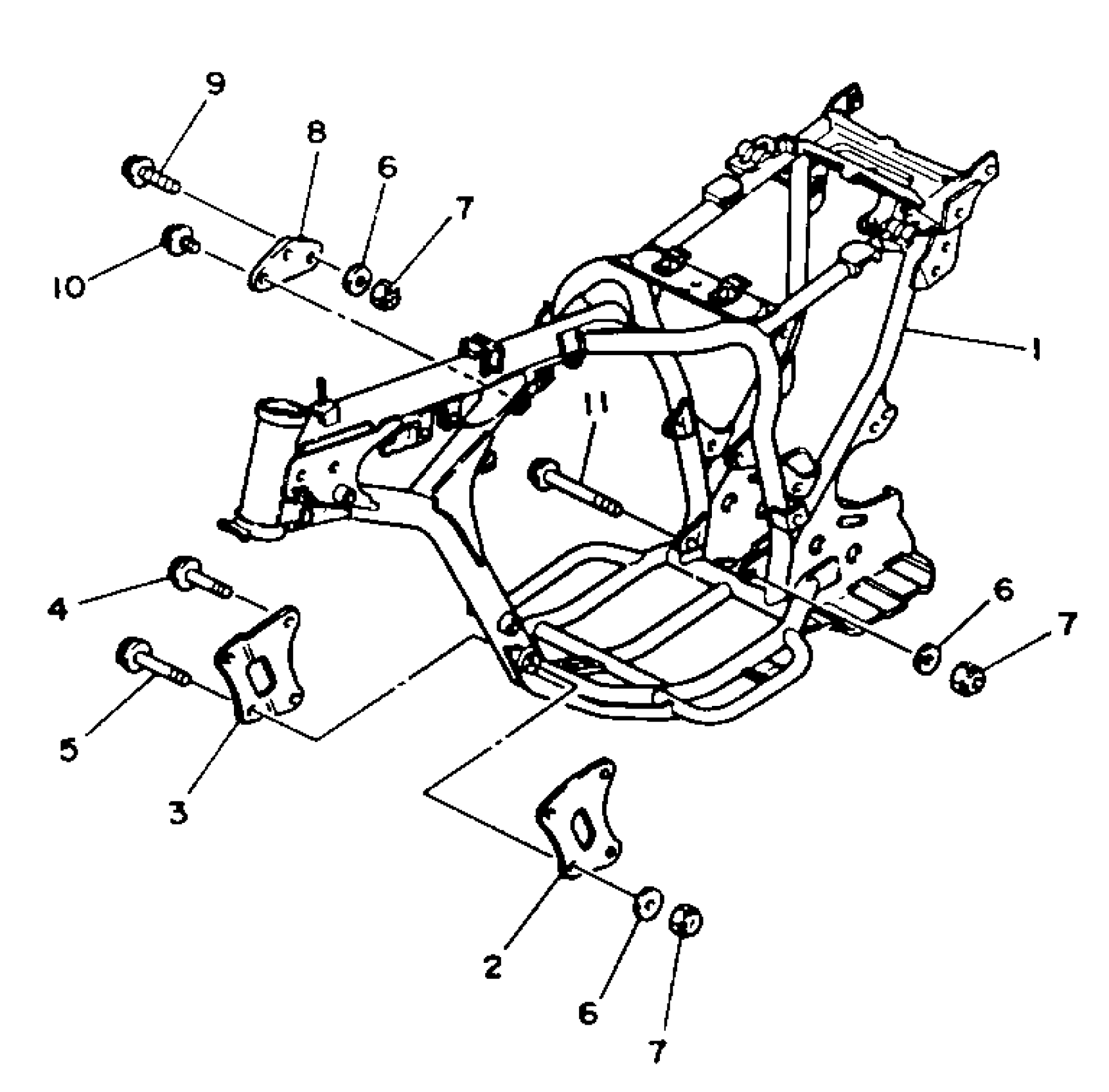

Yamaha YTM200N 1985 FRAME Diagram

FRAME

STAY, ENGINE 3

STAY, ENGINE 4

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

STAY, ENGINE 2

BOLT, FLANGE

BOLT, FLANGE(JN5)

BOLT (1W1)
