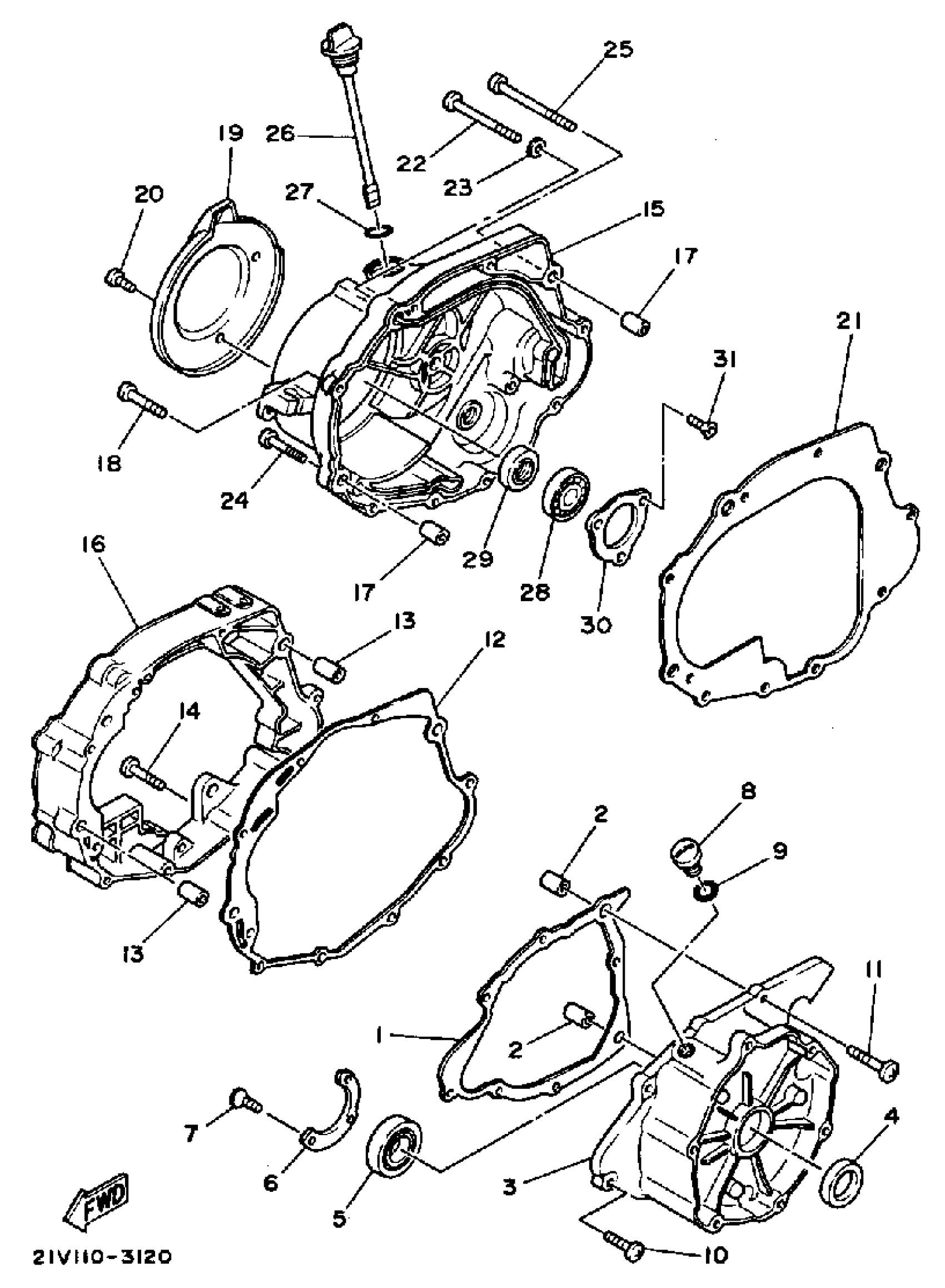

Yamaha YTM200N 1985 CRANKCASE COVER Diagram
#
Description
Price
1
GASKET, CRCS COVER
19W-15451-02-00
Unavailable
3
ADAPTOR
21V-15787-00-00
Unavailable
6
WASHER, THRUST
21V-15719-00-00
Unavailable
8
PLUG, STRAIGHT SCREW (5Y1)
90340-14079-00
Unavailable
12
GASKET, CRANKCASE COVER 3
4BD-15462-00-00
Unavailable
15
COVER,CRANKCASE 3
99999-02617-00
Unavailable
16
SPACER, ENGINE
21V-15317-01-00
Unavailable
19
PROTECTOR, COVER
21V-15499-00-00
Unavailable
20
SCREW, BINDING
98907-06014-00
Unavailable
21
GASKET, CARBURETOR COVER 2
4BD-15463-01-00
Unavailable
22
SCREW, PAN HEAD
98507-06070-00
Unavailable
23
GASKET 256113960000
90430-06014-00
Unavailable
25
SCREW, PAN
98507-06080-00
Unavailable
26
PLUG, OIL LEVEL
1UY-15362-01-00
Unavailable
27
O-RING (646)
93210-19123-00
Unavailable
28
BEARING(37F)
93306-20335-00
Unavailable
29
OIL SEAL (21V)
93101-17113-00
Unavailable
30
PLATE, BEARING COVER
21V-15381-00-00
Unavailable
31
SCREW, COUNTERSUNK (21V)
90151-06025-00
Unavailable
