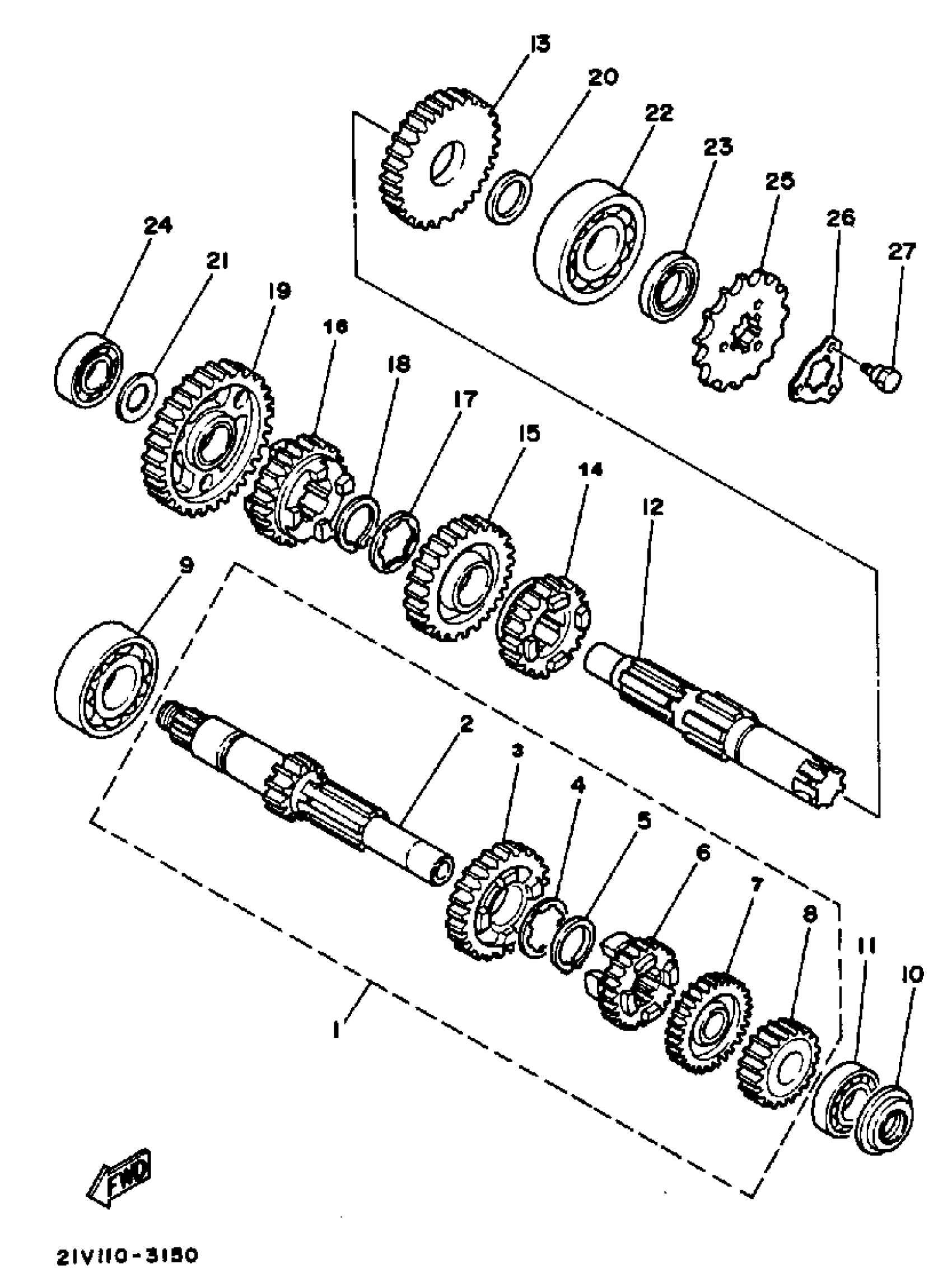

Yamaha YTM200K (YTM200L) 1983 TRANSMISSION Diagram
#
Description
Price
1
. MAIN AXLE ASSEMBLY COMP (12T)
21V-17401-00-00
Unavailable
2
. MAIN AXLE ASSEMBLY COMP (12T)
21V-17401-00-00
Unavailable
3
GEAR, 5TH PINION
15A-17151-01-00
Unavailable
6
GEAR, 2ND PINION
5H0-17121-01-00
Unavailable
7
GEAR, 4TH PINION
15A-17141-00-00
Unavailable
8
GEAR, 2ND PINION
15A-17121-00-00
Unavailable
12
DRIVE AXLE ASSEMBLY
21V-17402-00-00
Unavailable
13
GEAR, 2ND WHEEL
15A-17221-00-00
Unavailable
14
GEAR, 4TH WHEEL
15A-17241-00-00
Unavailable
15
GEAR, 3RD WHEEL
15A-17231-00-00
Unavailable
16
GEAR, 6TH WHEEL
5MP-17261-00-00
Unavailable
17
WASHER (5H0)
90209-18208-00
Unavailable
18
CIRCLIP (537)
93410-22039-00
Unavailable
19
GEAR, 1ST WHEEL
15A-17211-01-00
Unavailable
20
WASHER, PLATE (5N0)
90201-203E7-00
Unavailable
21
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
22
BEARING
93306-30443-00
Unavailable
23
OIL SEAL
93102-20004-00
Unavailable
25
SPROCKET, DRIVE 11T
93832-11007-00
Unavailable
26
HOLDER, SPROCKET
21V-17456-00-00
Unavailable
27
BOLT
90109-06684-00
Unavailable
