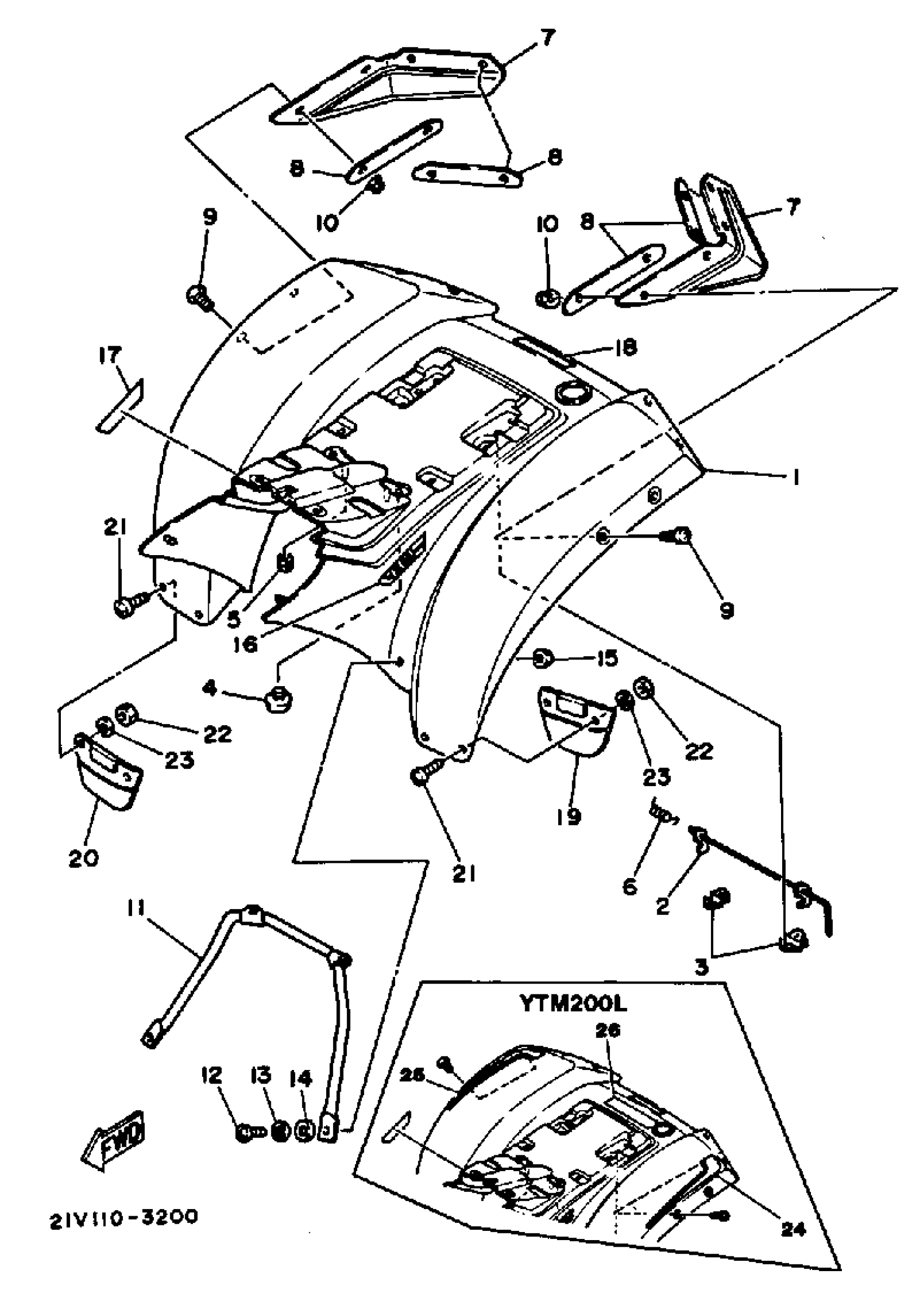

Yamaha YTM200K (YTM200L) 1983 REAR FENDER Diagram
#
1
FENDER, REAR
21V-21611-00-00
Unavailable
1
FENDER, REAR
21V-21611-50-00
Unavailable
2
LEVER, SEAT
21V-24776-00-00
Unavailable
3
BRACKET, SEAT LEVER
21V-24775-00-00
Unavailable
5
GROMMET
90480-19351-00
Unavailable
7
FLAP
21V-21621-00-00
Unavailable
8
PLATE, FLAP FTNG 1
21V-21623-00-00
Unavailable
11
STAY, FENDER 1
21V-21613-01-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
EMBLEM 1
21V-2163G-00-00
Unavailable
16
EMBLEM 1 (COMPETITION YELLOW)
(21V-2163G-30-00)
Unavailable
16
EMBLEM 1 (SKY BLUE)
(21V-2163G-50-00)
Unavailable
17
EMBLEM 2
21V-2163H-00-00
Unavailable
17
EMBLEM 2 (COMPETITION YELLOW)
21V-2163H-30-00
Unavailable
17
EMBLEM 2 (SKY BLUE)
(21V-2163H-50-00)
Unavailable
18
EMBLEM 4
21V-21784-50-00
Unavailable
18
EMBLEM 4
3X3-21784-00-00
Unavailable
19
COVER, REAR FENDER
21V-2163A-00-00
Unavailable
20
COVER, REAR FNDR.3
21V-2163E-00-00
Unavailable
21
SCREW, BINDING (8G6)
90154-05002-00
Unavailable
21
SCREW, BINDING
90154-05016-00
Unavailable
22
NUT, U
95617-05100-00
Unavailable
23
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
24
GRPHC, R/FNDR CVR L (COMPETITION YELLOW)
21V-21661-30-00
Unavailable
24
GRPHC, R/FNDR CVR L (SKY BLUE)
21V-21661-50-00
Unavailable
25
GRPHC, R/FNDR CVR R (COMPETITION YELLOW)
21V-21662-30-00
Unavailable
25
GRPHC, R/FNDR CVR R (SKY BLUE)
21V-21662-50-00
Unavailable
26
LABEL, SAFETY (52G-21659-00)
21V-21659-30-00
Unavailable
