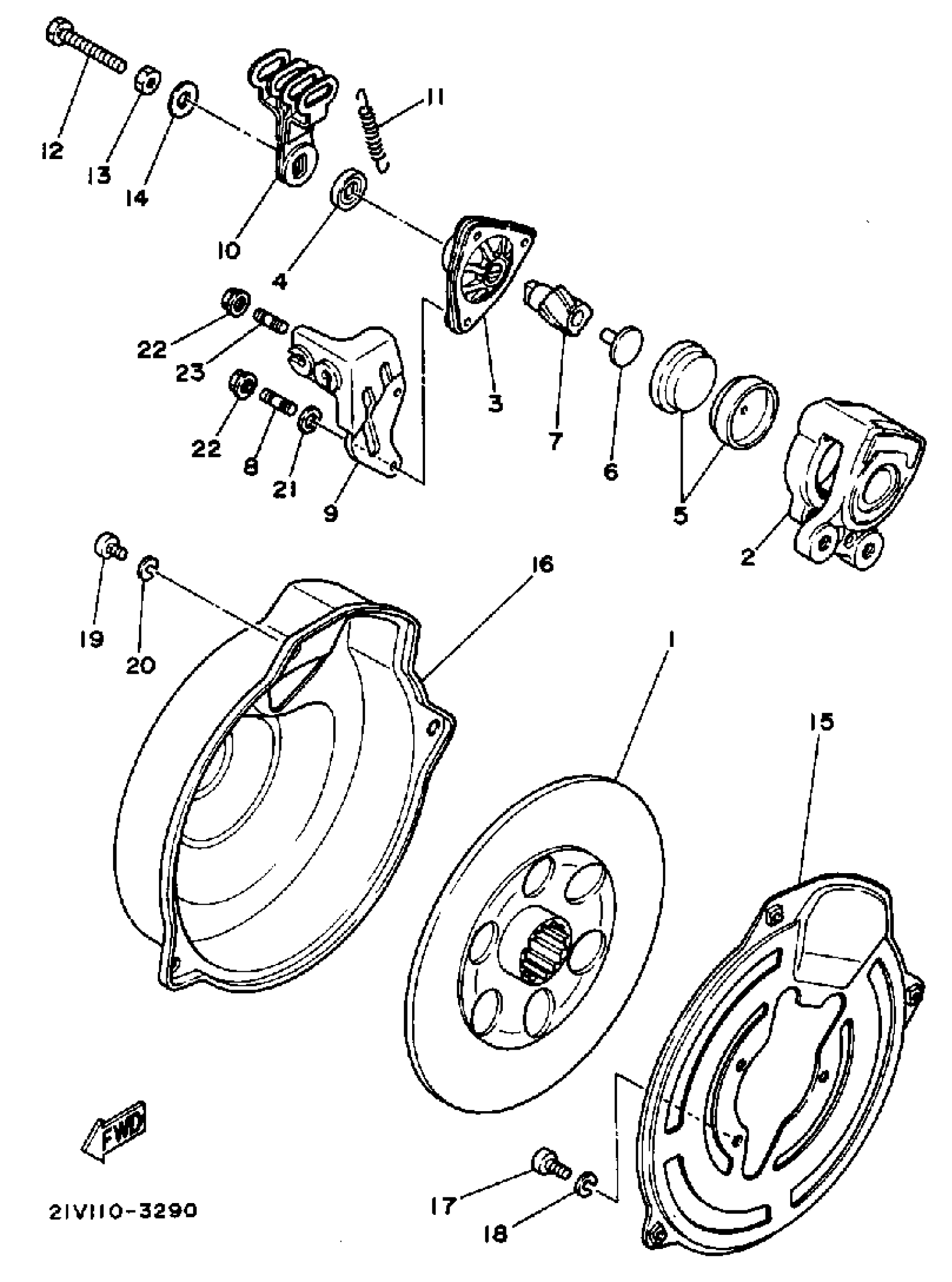

Yamaha YTM200K (YTM200L) 1983 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

21V-25711-01-00

Unavailable

2

BODY, CALIPER 1

21V-25731-00-00

Unavailable

3

. LEVER, BRAKE

21V-25726-01-00

Unavailable

3

CAM

21V-25728-01-00

Unavailable

3

BODY, CALIPER 2 (21V-25741-01)

21V-25741-02-00

Unavailable

3

BOLT, HEAD WITH HOLE(71G)

90103-08026-00

$11.49

3

NUT(6L2)

95333-08600-00

$2.49

3

BODY, CALIPER

99999-01621-KT

Unavailable

4

OIL SEAL (3X3)

93102-15212-00

$9.49

5

BRAKE PAD KIT

2HR-W0045-09-00

$44.99

6

PLATE, BACK UP

J45-25733-00-00

Unavailable

7

CAM

21V-25728-01-00

Unavailable

8

BOLT, STUD(1JK)

90116-06475-00

$8.49

9

HOLDER, ADJUSTING

52H-26381-00-00

Unavailable

10

LEVER, BRAKE

21V-25726-00-00

Unavailable

10

. LEVER, BRAKE

21V-25726-01-00

Unavailable

11

SPRING, TENSION (3X3)

90506-16215-00

Unavailable

12

BOLT, HEAD WITH HOLE(71G)

90103-08026-00

$11.49

12

SCREW, HEXAGON(J45)

90153-08062-00

Unavailable

13

NUT (1U6)

90170-08216-00

Unavailable

13

NUT(6L2)

95333-08600-00

$2.49

14

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

15

COVER 1

21V-25715-00-00

Unavailable

16

COVER 2

21V-25716-00-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

23

BOLT, STUD 3

95617-06625-00

Unavailable
