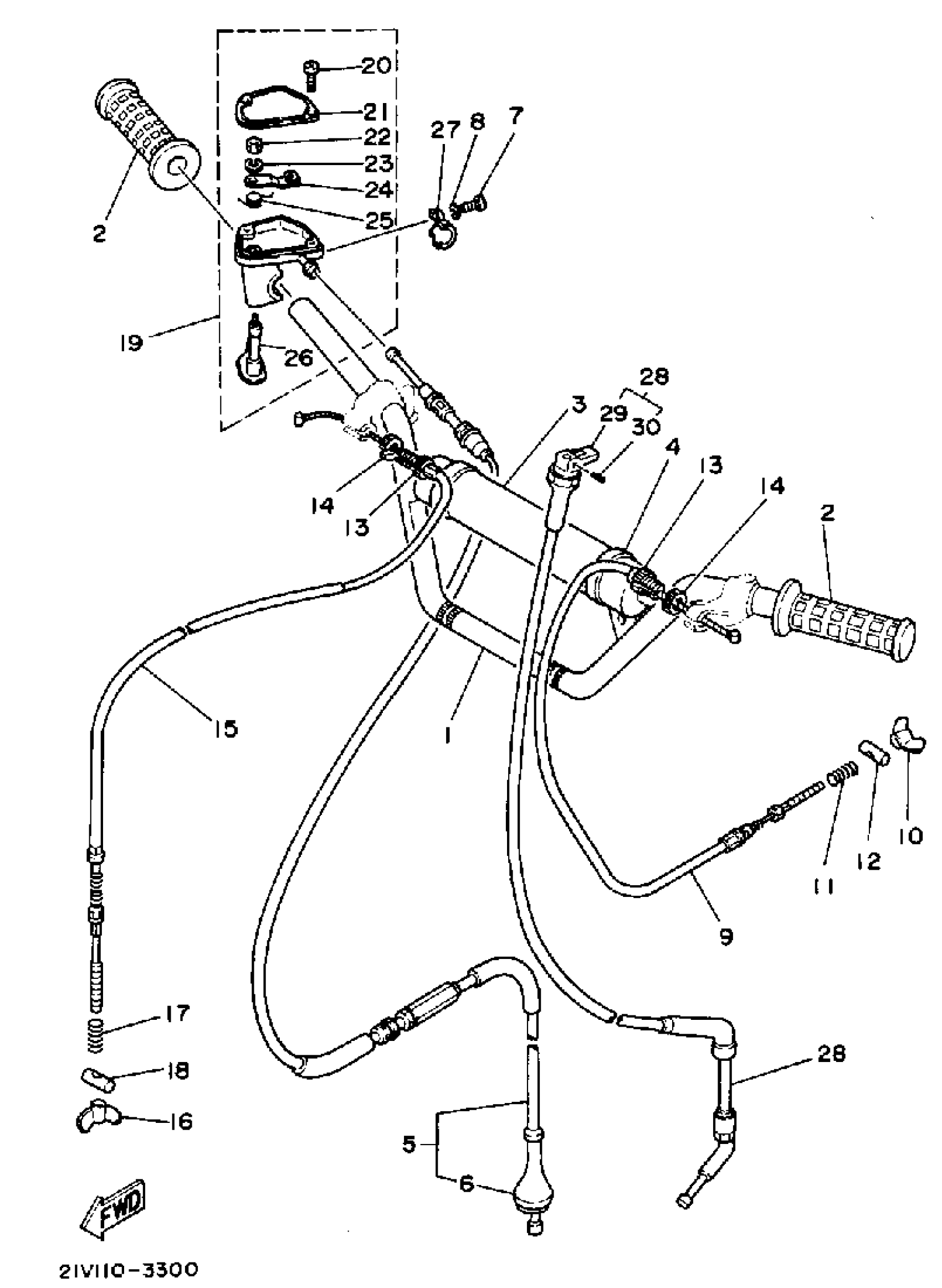

Yamaha YTM200K (YTM200L) 1983 HANDLEBAR CABLE YTM200L Diagram

#

Description
Price

1

HANDLEBAR

29U-26111-01-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$17.77

3

PROTECTOR, HDLBR

21V-26124-00-00

Unavailable

4

BAND, SWITCH CORD

437-83936-11-00

$3.34

5

CABLE, THROTTLE 1

21V-26311-00-00

Unavailable

6

. CAP, RUBBER

21V-26329-00-00

Unavailable

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

8

WASHER(3SX)

92907-05100-00

$5.76

9

CABLE, BRAKE

24W-26341-00-00

Unavailable

10

NUT, AJUSTING

20E-26343-00-00

$20.80

11

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

12

PIN 1562723700

90249-12008-00

$5.75

13

BOLT

90123-08002-00

$8.57

14

NUT

90179-08030-00

$3.63

15

CABLE, BRAKE 4

21V-26373-00-00

Unavailable

16

NUT (25K)

90179-06411-00

Unavailable

17

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

18

PIN 1562723700

90249-12008-00

$5.75

19

THROTTLE LEVER ASSEMBLY

21V-26250-01-00

Unavailable

20

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

21

. CAP, GEAR

21V-2628F-00-00

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

. ARM, THROTTLE

21V-2625H-00-00

Unavailable

25

. SPRING, TORSION

90508-10597-00

Unavailable

26

. LEVER, THROTTLE

21V-2625G-01-00

Unavailable

27

H0LDER, LEVER L0WER 1

38V-82913-00-00

Unavailable

28

CABLE, STARTER 1

21V-26331-02-00

Unavailable

29

LEVER

21V-26374-00-00

Unavailable

30

PIN, SPRING (663)

91690-30010-00

$5.53
