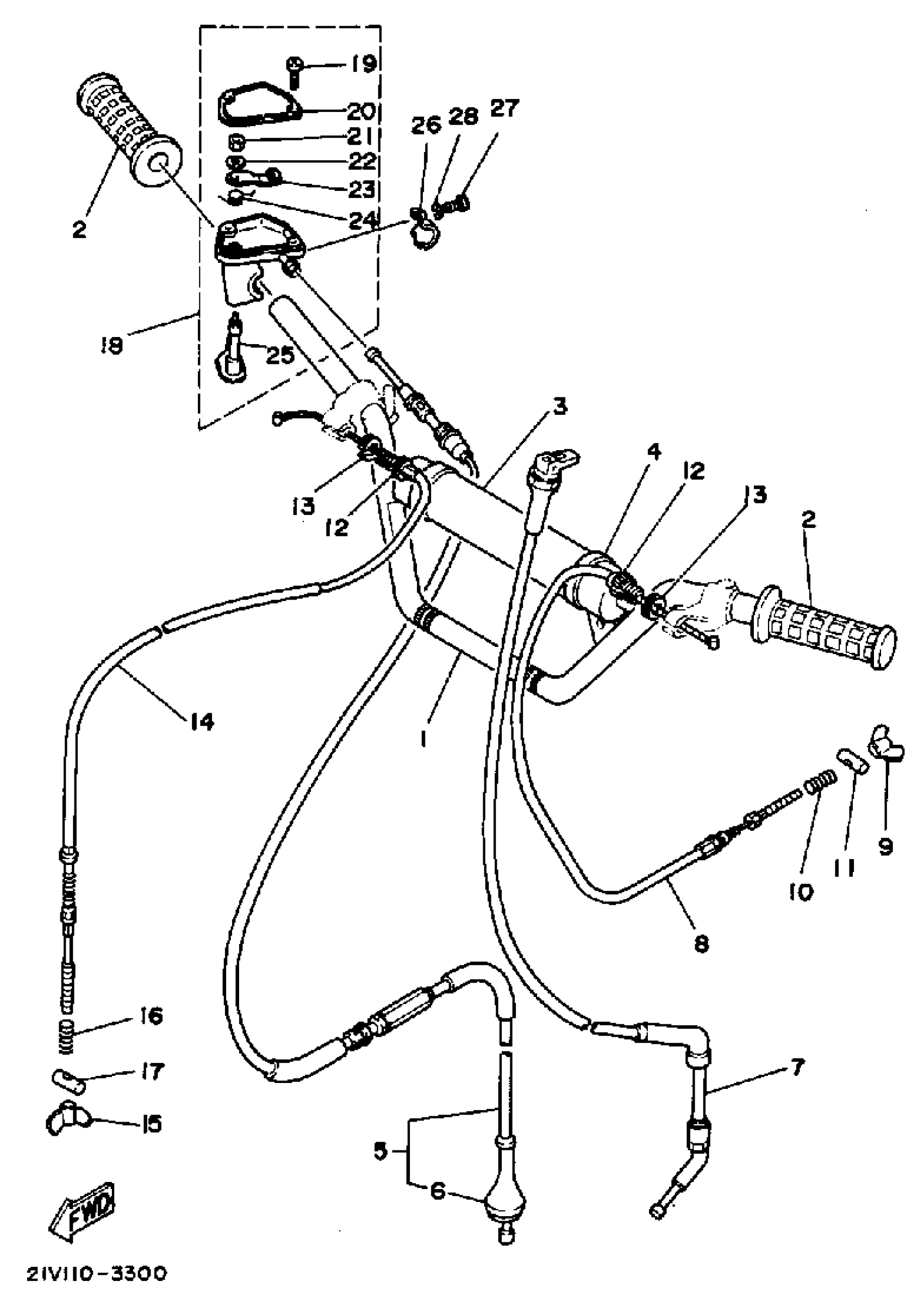

Yamaha YTM200K (YTM200L) 1983 HANDLEBAR CABLE YTM200K Diagram
#
Description
Price
1
HANDLEBAR
29U-26111-01-00
Unavailable
3
PROTECTOR, HDLBR
21V-26124-00-00
Unavailable
5
CABLE, THROTTLE 1
21V-26311-00-00
Unavailable
6
. CAP, RUBBER
21V-26329-00-00
Unavailable
7
CABLE, STARTER 1
21V-26331-02-00
Unavailable
8
CABLE, BRAKE
24W-26341-00-00
Unavailable
14
CABLE, BRAKE 4
21V-26373-00-00
Unavailable
18
THROTTLE LEVER ASSEMBLY
21V-26250-01-00
Unavailable
19
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
20
. CAP, GEAR
21V-2628F-00-00
Unavailable
21
NUT, HEXAGON (663)
95380-05600-00
Unavailable
22
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
23
. ARM, THROTTLE
21V-2625H-00-00
Unavailable
24
. SPRING, TORSION
90508-10597-00
Unavailable
25
. LEVER, THROTTLE
21V-2625G-01-00
Unavailable
26
H0LDER, LEVER L0WER 1
38V-82913-00-00
Unavailable
27
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
28
WASHER(3SX)
92907-05100-00
Unavailable
29
LEVER
21V-26374-00-00
Unavailable
30
PIN, SPRING (663)
91690-30010-00
Unavailable
