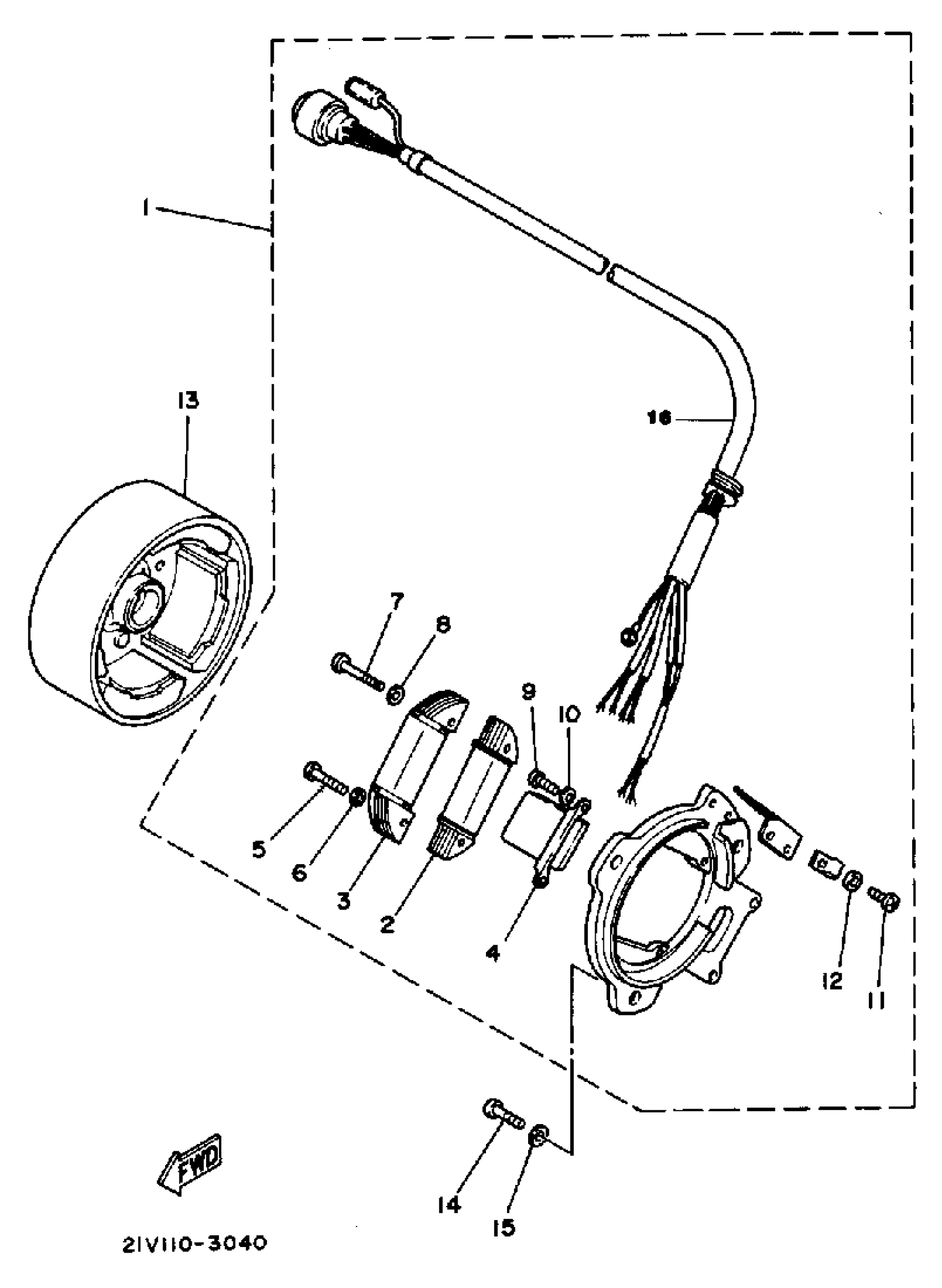

Yamaha YTM200K (YTM200L) 1983 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

21V-85510-20-00

Unavailable

2

. COIL SOURCE 2

21V-85512-20-00

Unavailable

3

. COIL, LIGHTING 1

21V-85513-20-00

Unavailable

4

COIL,PULSER

59V-85580-20-00

Unavailable

5

SCREW, PAN HEAD

98517-04020-00

$8.49

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW, PAN HEAD

98517-04025-00

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

ROTOR ASSEMBLY

21V-85550-20-00

Unavailable

14

SCREW, PAN

98507-06014-00

$8.49

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

. LEAD WIRE ASSEMBLY

29U-85515-20-00

Unavailable
