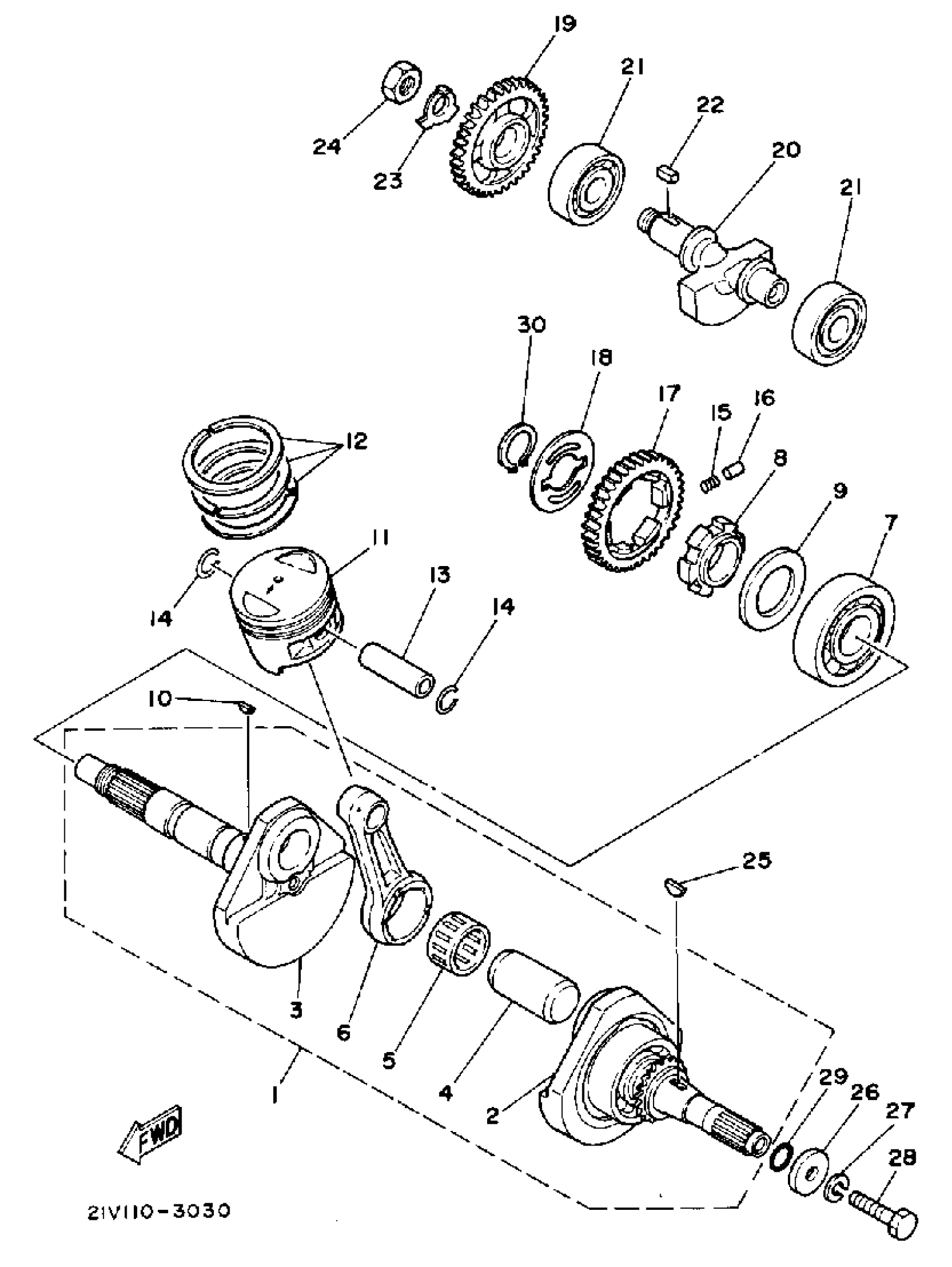

Yamaha YTM200K (YTM200L) 1983 CRANKSHAFT PISTON Diagram
#
1
. CRANKSHAFT ASSEMBLY (21V-11412-00)
99999-01951-00
Unavailable
2
. CRANKSHAFT ASSEMBLY (21V-11412-00)
99999-01951-00
Unavailable
3
CRANK 2
99999-01950-00
Unavailable
4
PIN, CRANK 1
5H0-11681-00-00
Unavailable
6
ROD, CONNECTING
15A-11651-00-00
Unavailable
8
BOSS, BUFFER (21V-11496-00)
59V-11496-00-00
Unavailable
9
WASHER, PLATE (21V)
90201-406F4-00
Unavailable
11
PISTON (STD)
21V-11631-00-Y0
Unavailable
11
PISTON 2 O/S 0.50
21V-11636-00-00
Unavailable
11
PISTON 4 O/S 1.00
21V-11638-00-00
Unavailable
12
PISTON RING SET (1.00MM O/S)
15A-11607-00-00
Unavailable
13
PIN, PISTON
58L-11633-00-00
Unavailable
14
CIRCLIP (1L9)
93450-17044-00
Unavailable
15
SPRING COMPRESSION341114880000
90501-21133-00
Unavailable
16
PIN, DOWEL
93605-10090-00
Unavailable
17
GEAR, DRIVE
5H0-11536-00-00
Unavailable
18
WASHER, PLATE
90201-266F5-00
Unavailable
19
GEAR, BALANCE WT
5H0-11531-00-00
Unavailable
20
WEIGHT 1
15A-11454-00-00
Unavailable
21
BEARING
93306-30443-00
Unavailable
22
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
23
WASHER, LOCK (15Y)
90215-14205-00
Unavailable
23
WASHER, LOCK (15Y)
90215-14205-00
Unavailable
24
NUT (5H0)
90170-14284-00
Unavailable
25
KEY, WOODRUFF
90280-05001-00
Unavailable
26
WASHER, PLATE
90201-10058-00
Unavailable
27
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
28
BOLT (21V)
90101-10568-00
Unavailable
29
O-RING (538)
93210-16290-00
Unavailable
30
CIRCLIP
99009-26400-00
Unavailable
