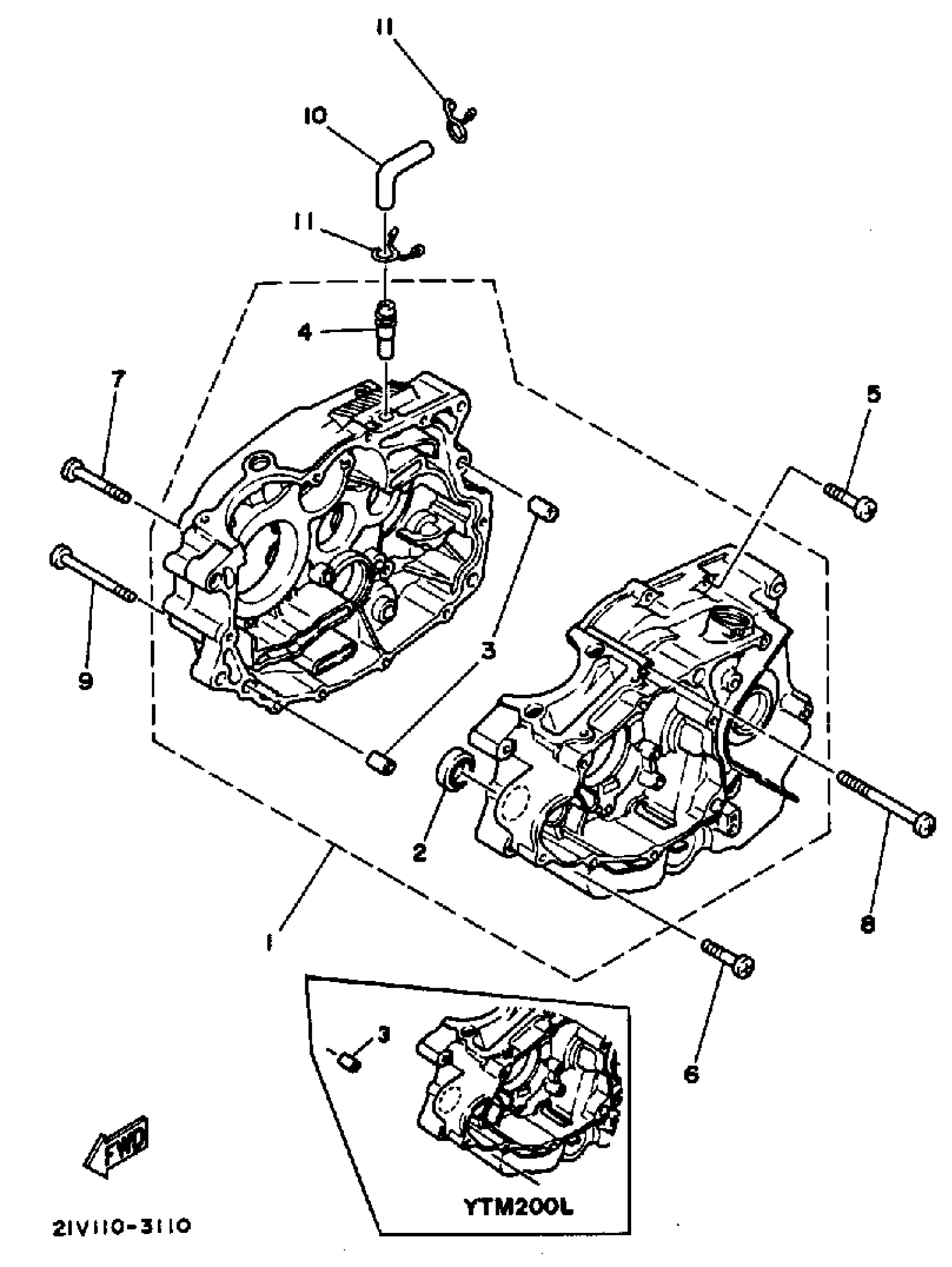

Yamaha YTM200K (YTM200L) 1983 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

21V-15100-00-00

Unavailable

2

PLUG (3L3)

90338-30096-00

$10.74

3

PIN, DOWEL

99530-12016-00

$3.85

4

PIPE, BREATHER 2

371-11167-01-00

$9.67

5

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

6

SCREW PAN HEAD

98580-06040-00

$5.75

7

SCREW, BIND (JH1)

98580-06560-00

Unavailable

8

SCREW, PAN

98507-06085-00

$4.82

9

SCREW PAN HEAD

98580-06575-00

$10.79

10

PIPE, BREATHER 1

21V-11166-00-00

Unavailable

11

CLIP (806-24358-00)

90467-15012-00

$4.40
