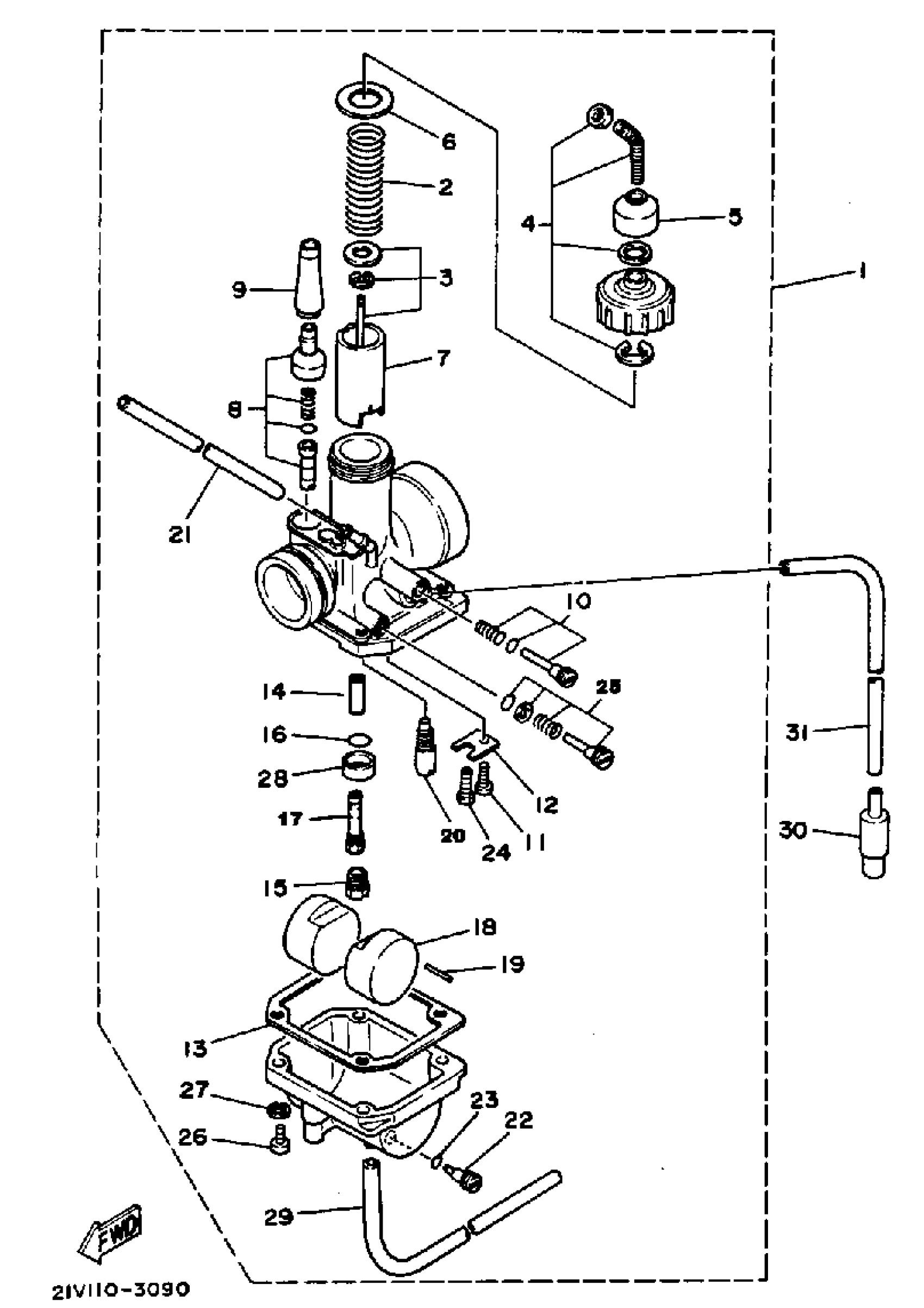

Yamaha YTM200K (YTM200L) 1983 CARBURETOR YTM200K Diagram
#
Description
Price
1
CARBURETOR ASSEMBLY 1
21V-14101-00-00
Unavailable
2
. SPRING, THROTTLE VALVE
21V-14131-00-00
Unavailable
3
. NEEDLE SET
21V-1490J-00-00
Unavailable
6
GASKET
4U5-14126-00-00
Unavailable
7
. VALVE, THROTTLE 1 (21V-14112-20)
21V-14112-35-00
Unavailable
9
CAP
307-14169-10-00
Unavailable
10
. THROTTLE SCREW SET
21V-14103-00-00
Unavailable
13
. GASKET, FLOAT CHMBR
21V-14184-00-00
Unavailable
14
NOZZLE, MAIN
21V-14141-28-00
Unavailable
15
JET, MAIN (#105)
620-14231-21-A0
Unavailable
15
JET, MAIN (#110)
620-14231-22-A0
Unavailable
16
O-RING
583-14561-00-00
Unavailable
17
. JET, HOLDER
21V-14148-00-00
Unavailable
18
FLOAT
21V-14185-00-00
Unavailable
19
PIN, FLOAT
127-14186-00-00
Unavailable
20
. NEEDLE VALVE ASSEMBLY
21V-14190-20-00
Unavailable
21
HOSE (L540)
90445-084A7-00
Unavailable
22
SCREW
2L1-14191-00-00
Unavailable
23
O-RING
214-14147-00-00
Unavailable
24
. JET, PILOT #25
3H1-14142-25-00
Unavailable
25
PILOT SCREW SET
21V-14105-00-00
Unavailable
26
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
27
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
28
RING
(21V-14194-00-00)
Unavailable
29
HOSE (L1500)
90445-084J0-00
Unavailable
30
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
31
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
