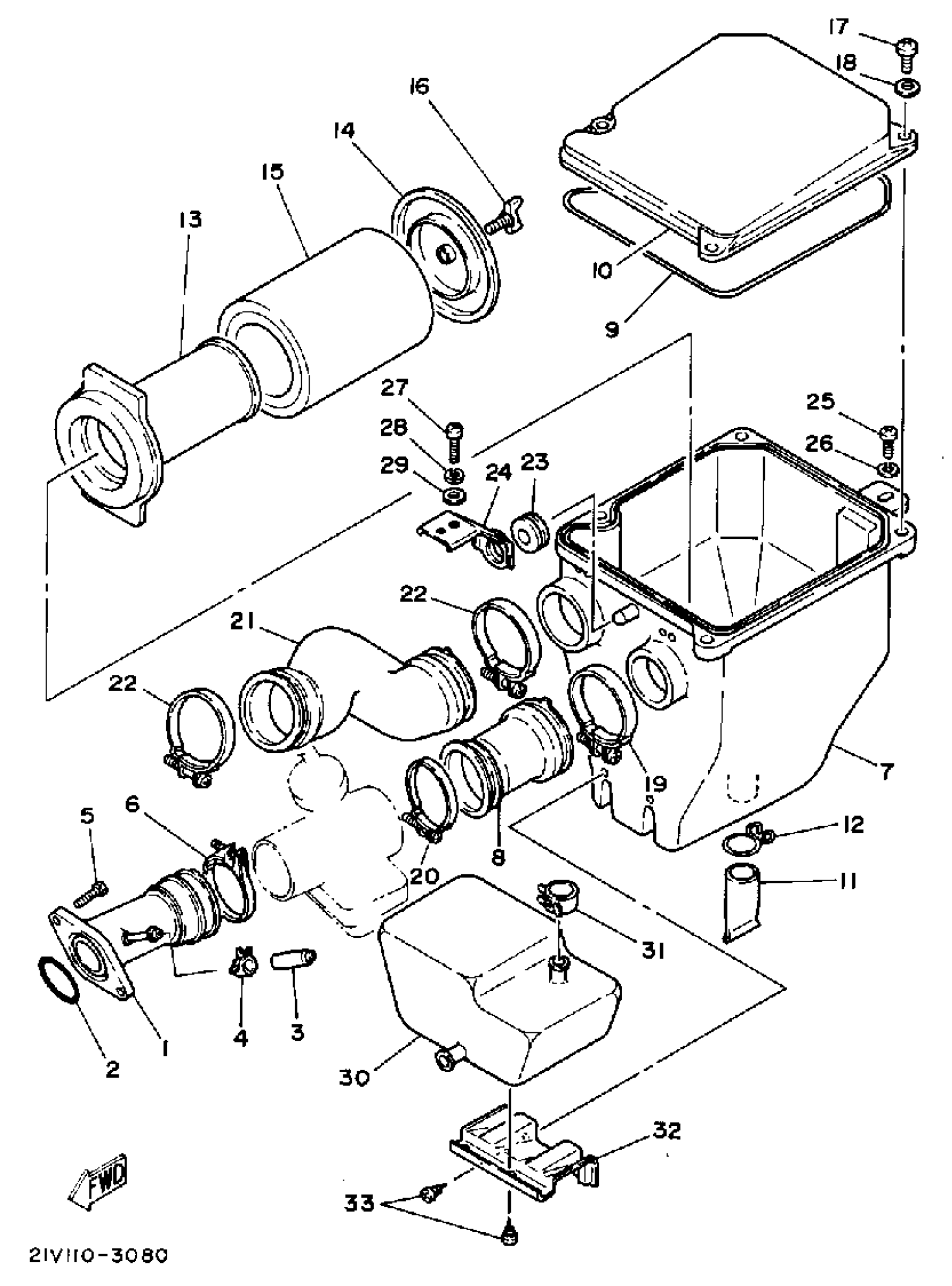

Yamaha YTM200K (YTM200L) 1983 AIR FILTER YTM200K Diagram
#
Description
Price
1
JOINT, CARBURETOR 1 (21V-13586-00)
21V-13586-01-00
Unavailable
5
BOLT,SOCKET
91317-06020-00
Unavailable
7
CASE, AIR CLEANER 1
21V-14411-00-00
Unavailable
8
JOINT, AIR CLNR 1
24W-14453-00-00
Unavailable
14
PLATE, ELEMENT FTNG
21V-14468-00-00
Unavailable
15
ELEMENT ASSEMBLY CLEANER
21V-14450-90-00
Unavailable
15
ELEMENT, AIR CLEANER
21V-14451-01-00
Unavailable
16
BOLT, WING(8W1)
90122-05022-00
Unavailable
17
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
18
WASHER, PLAIN (646)
92990-05600-00
Unavailable
19
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
20
HOSE CLAMP ASSY
90450-47002-00
Unavailable
21
DUCT
21V-14437-01-00
Unavailable
22
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
23
GROMMET (2N3)
90480-16233-00
Unavailable
24
STAY 2
21V-14499-00-00
Unavailable
25
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
SCREW PAN HEAD
98580-06020-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLATE
90201-06380-00
Unavailable
30
CHAMBER, AIR
21V-13581-00-00
Unavailable
31
CLIP (4V3)
90467-19051-00
Unavailable
32
STAY 1
(21V-14493-00-00)
Unavailable
33
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
