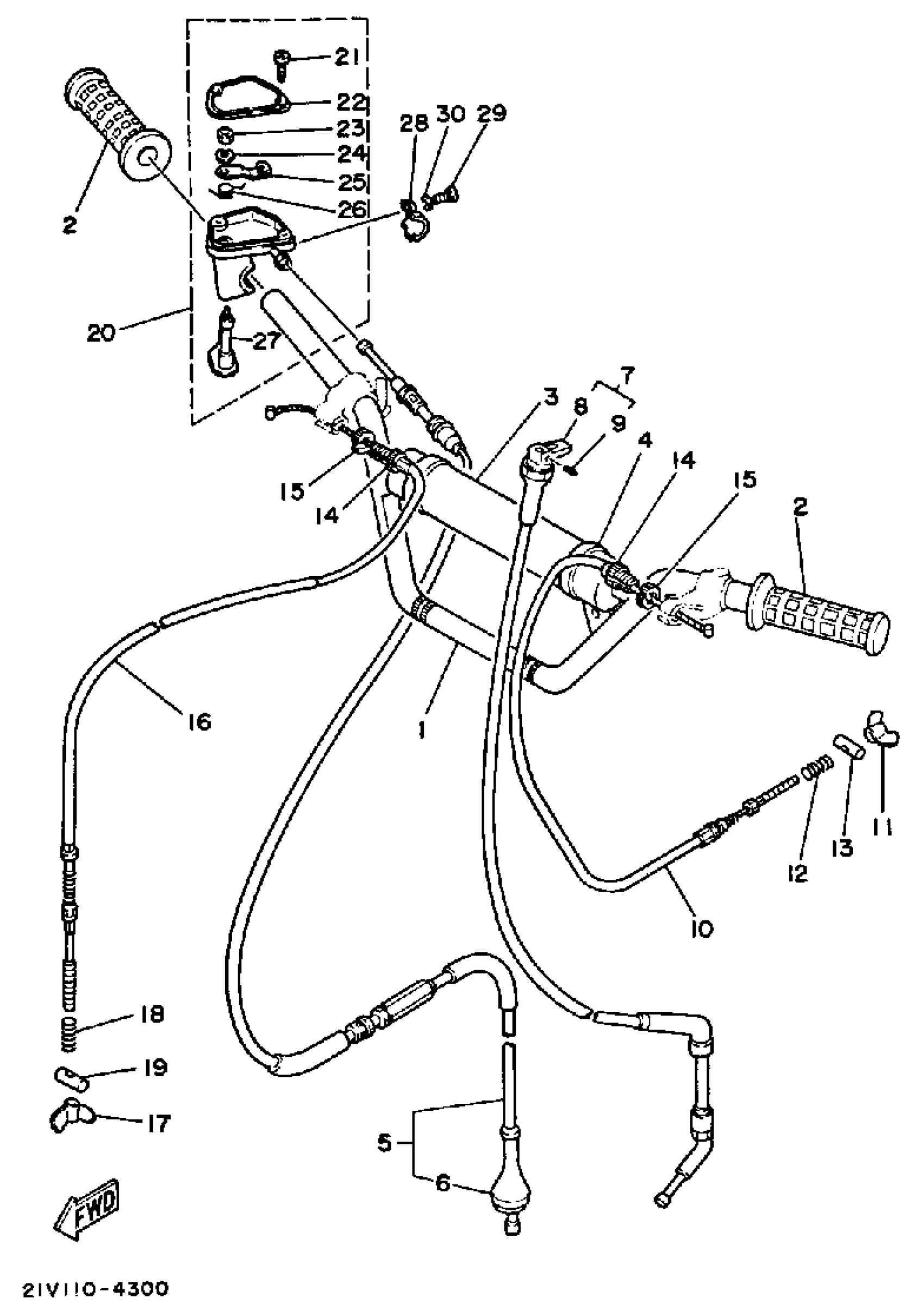

Yamaha YTM200ERN 1985 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

29U-26111-01-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$17.77

3

PROTECTOR, HDLBR

21V-26124-00-00

Unavailable

4

BAND, SWITCH CORD

437-83936-11-00

$3.34

5

CABLE, THROTTLE 1

21V-26311-00-00

Unavailable

6

. CAP, RUBBER

21V-26329-00-00

Unavailable

7

CABLE, STARTER 1

21V-26331-02-00

Unavailable

8

LEVER

21V-26374-00-00

$22.50

9

PIN, SPRING (663)

91690-30010-00

$5.53

10

CABLE, BRAKE

24W-26341-00-00

Unavailable

11

NUT, AJUSTING

20E-26343-00-00

$20.80

12

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

13

PIN 1562723700

90249-12008-00

$5.75

14

BOLT

90123-08002-00

$8.57

15

NUT

90179-08030-00

$3.63

16

CABLE, BRAKE 4

21V-26373-00-00

Unavailable

17

NUT (25K)

90179-06411-00

Unavailable

18

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

19

PIN 1562723700

90249-12008-00

$5.75

20

THROTTLE LEVER ASSEMBLY

21V-26250-01-00

Unavailable

21

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

22

. CAP, GEAR

21V-2628F-00-00

Unavailable

23

NUT, HEXAGON (663)

95380-05600-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

. ARM, THROTTLE

21V-2625H-00-00

Unavailable

26

. SPRING, TORSION

90508-10597-00

Unavailable

27

. LEVER, THROTTLE

21V-2625G-01-00

Unavailable

28

H0LDER, LEVER L0WER 1

38V-82913-00-00

Unavailable

29

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

30

WASHER(3SX)

92907-05100-00

Unavailable
