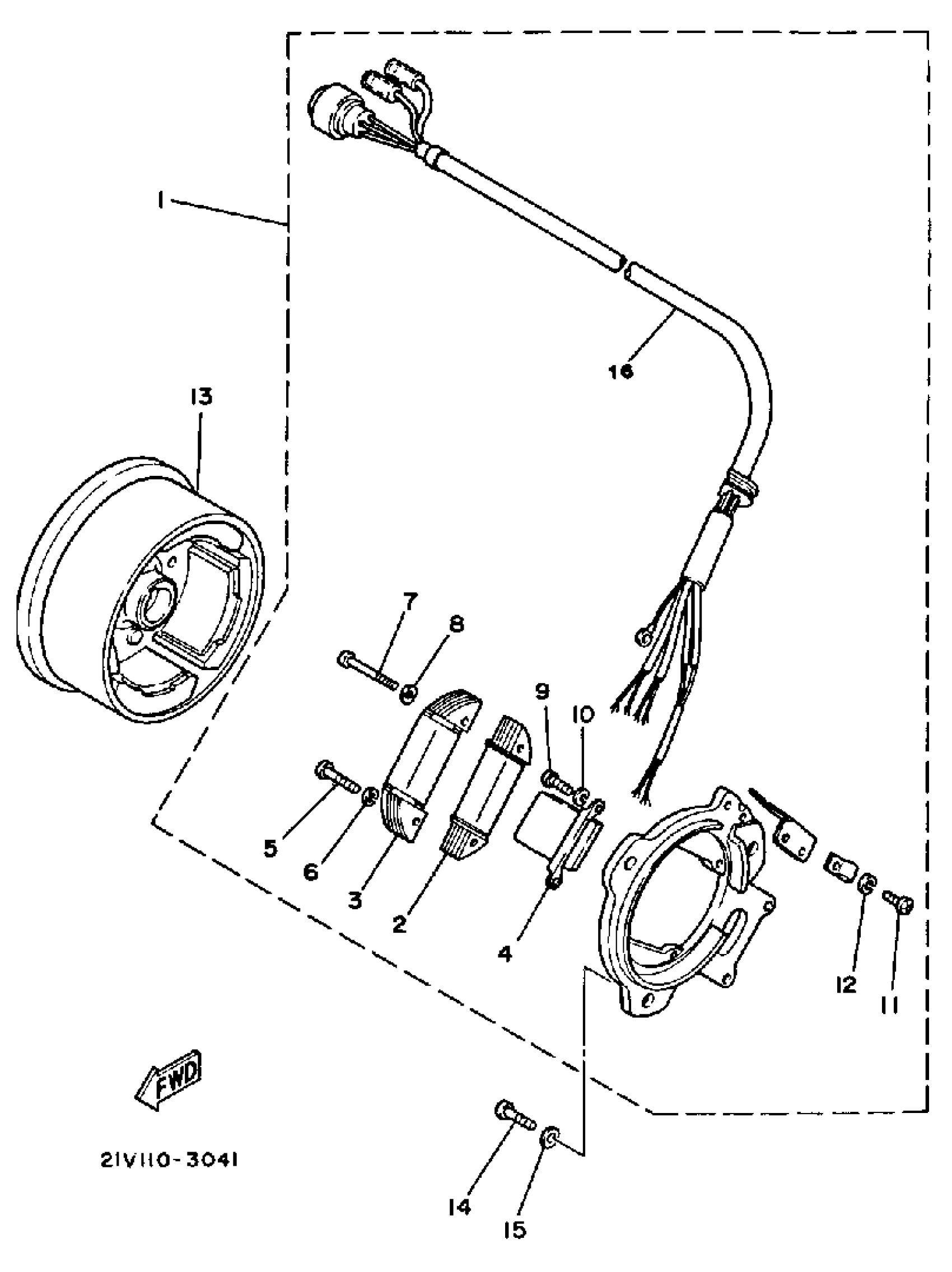

Yamaha YTM200ERN 1985 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY (24W-85510-20)

29U-85510-20-00

Unavailable

2

. COIL SOURCE 2

21V-85512-20-00

Unavailable

3

. COIL, LIGHTING 1

24W-85513-20-00

Unavailable

4

COIL,PULSER

59V-85580-20-00

Unavailable

5

SCREW, PAN HEAD

98507-04018-00

$2.19

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

. SCREW, PAN HEAD (811-14125-0)

619-81345-20-00

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

ROTOR ASSEMBLY

24W-85550-20-00

Unavailable

14

UNAVAILABLE IN PRICE BOOK (92502-06016-00)

92503-06016-00

Unavailable

15

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

16

. LEAD WIRE ASSEMBLY

29U-85515-20-00

Unavailable
