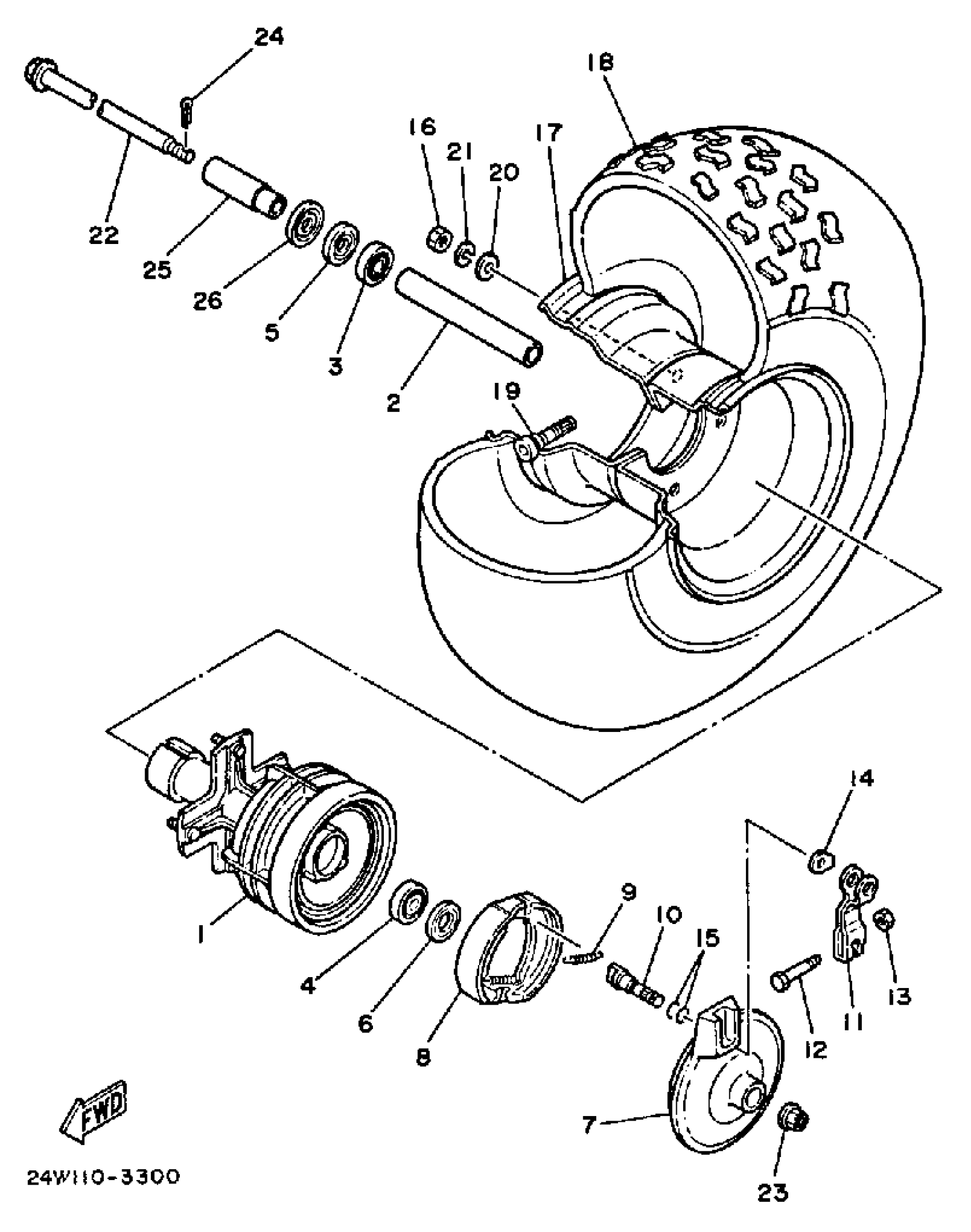

Yamaha YTM200ERN 1985 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

24W-25111-00-00

Unavailable

2

SPACER(24W)

90560-17305-00

$18.99

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

BEARING(2JN)

93306-00315-00

$33.99

5

OIL SEAL (5V6)

93102-23252-00

$14.99

6

OIL SEAL (21V)

93102-23275-00

$14.99

7

PLATE, BRAKE SHOE

21V-25121-00-35

Unavailable

8

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

9

SPRING, TENSION

90506-15260-00

$8.49

10

CAMSHAFT

4GL-25351-00-00

$68.99

11

LEVER, CAMSHAFT 1

21V-25155-00-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

PLATE, INDICATOR

5V7-2513A-00-00

Unavailable

15

O-RING (26H)

93210-14579-00

$7.49

16

NUT(6L2)

95333-08600-00

Unavailable

17

WHEEL,REAR

2HT-25390-00-35

Unavailable

18

25X12-9 KT430 DUN.

94112-090H4-00

Unavailable

19

VALVE, RIM(2GH)

93900-00030-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

AXLE, WHEEL

24W-25181-00-00

Unavailable

23

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable

25

COLLAR

90387-174G6-00

Unavailable

26

COVER, HUB DUST

5V6-25118-00-00

Unavailable
