Description

Price

1

FRAME

(24W-21110-01-33)

Unavailable

2

STAY, ENGINE 3

24W-21316-00-00

Unavailable

3

STAY, ENGINE 4

24W-21317-00-00

Unavailable

4

BOLT, FLANGE

95814-08065-00

$4.99

5

BOLT, FLANGE

95817-08075-00

$4.82

6

WASHER, PLATE (33N)

90201-094G1-00

$9.49

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

STAY, ENGINE 2

24W-21315-00-00

Unavailable

9

BOLT, FLANGE

95817-08050-00

$2.44

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

12

BOX

24W-21170-00-00

Unavailable

13

COVER 2

3FC-2139R-00-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

BOX

24W-21245-00-00

Unavailable

18

COVER 2

3FC-2139R-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06152-00

Unavailable

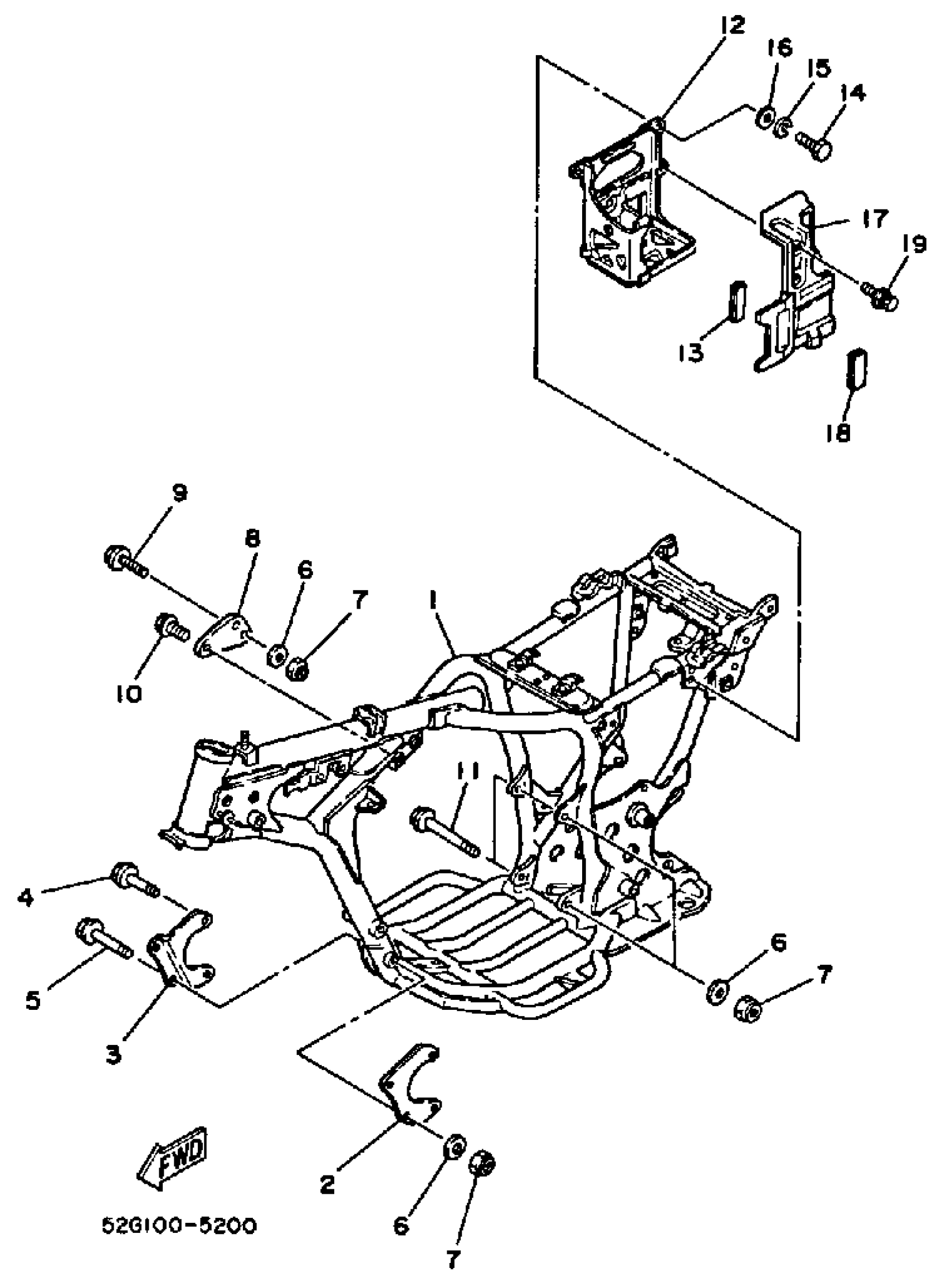

Yamaha YTM200ERN 1985 FRAME Diagram

FRAME

STAY, ENGINE 3

STAY, ENGINE 4

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

STAY, ENGINE 2

BOLT, FLANGE

BOLT, FLANGE(JN5)

BOLT, FLANGE(4BD)

BOX

COVER 2

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (4H7)

BOX

COVER 2

BOLT, WITH WASHER
