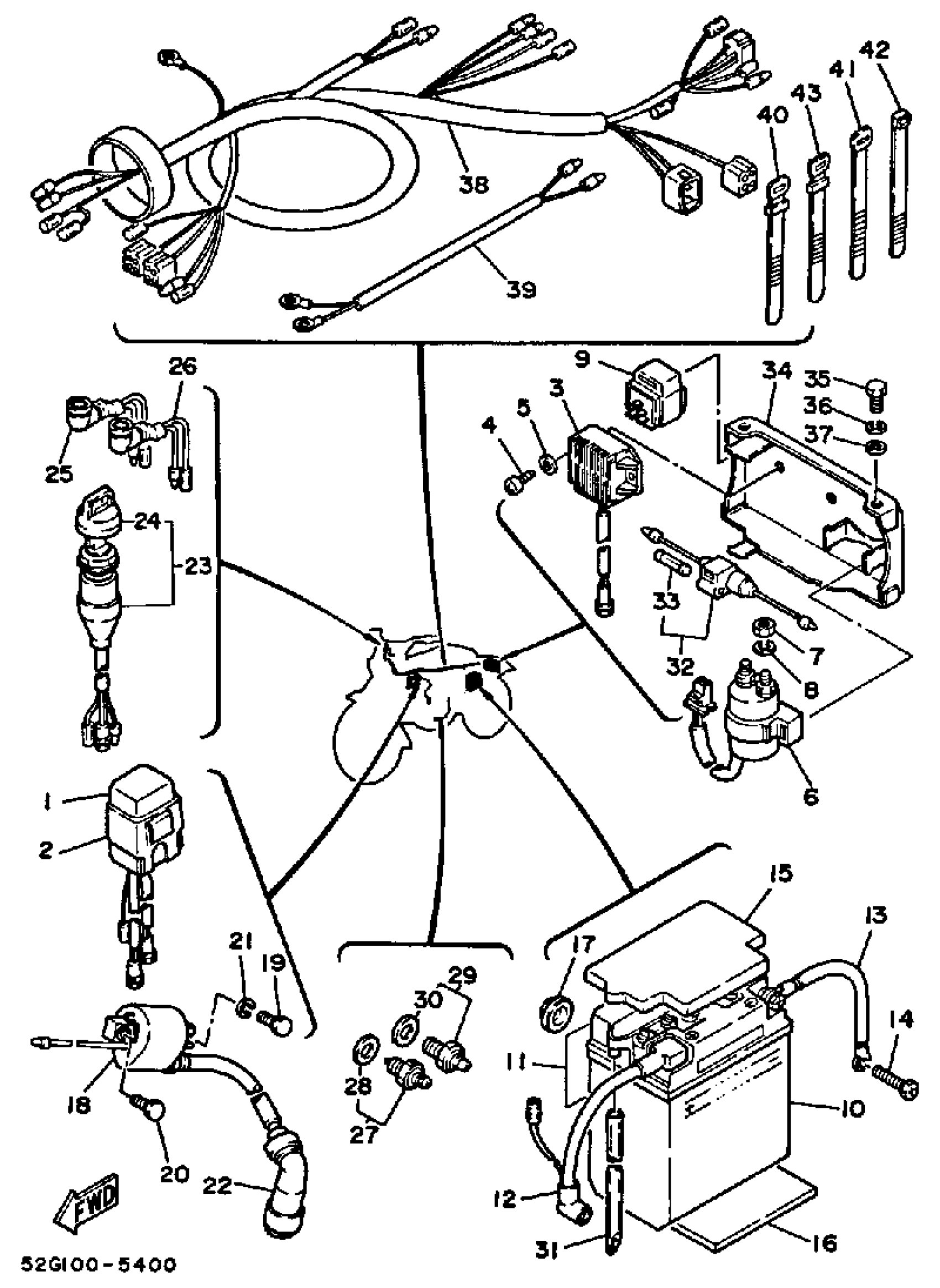

Yamaha YTM200ERN 1985 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
24W-85540-20-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER/REGULATOR ASSEMBLY
29U-81960-90-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
BATTERY
BTG-GM14A-Z4-00
Unavailable
11
LABEL, BATTERY
40A-82141-G0-00
Unavailable
12
WIRE, PLUS LEAD
5H0-82115-00-00
Unavailable
13
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
15
COVER, BATTERY
24W-82129-00-00
Unavailable
16
SEAT, BATTERY
5Y1-82122-00-00
Unavailable
17
PAD, BATTERY
371-82121-00-00
Unavailable
18
IGNITION COIL ASSY
1UY-82310-41-00
Unavailable
19
BOLT (21V)
90109-06723-00
Unavailable
20
BOLT(3DM)
97024-06020-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
PLUG CAP ASSY
3NS-82370-00-00
Unavailable
23
MAIN SWITCH ASSEMBLY
52G-82510-00-00
Unavailable
24
CAP, KEY
24W-82579-00-00
Unavailable
25
BULB (12V-3.4W)
123-83516-21-00
Unavailable
25
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
26
BULB (12V-3.4W)
123-83516-21-00
Unavailable
26
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
27
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
28
GASKET (5R6)
90430-10171-00
Unavailable
29
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
30
WASHER, PLATE
90201-12790-00
Unavailable
31
PIPE, BREATHER
3L5-82112-00-00
Unavailable
32
FUSE HOLDER ASSY
29U-82150-00-00
Unavailable
33
FUSE (10A)
1E6-82151-00-00
Unavailable
34
ELECTRIC PANEL CMP
(24W-83602-00-00)
Unavailable
35
BOLT(3JP)
97017-06010-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
38
WIRE HARNESS ASSEMBLY
52G-82590-60-00
Unavailable
39
WIRE, LEAD
52G-82541-00-00
Unavailable
40
BAND, SWITCH CORD
437-83936-11-00
Unavailable
41
BAND, SWITCH CORD
437-83936-01-00
Unavailable
42
BAND
1UA-82591-00-00
Unavailable
43
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
