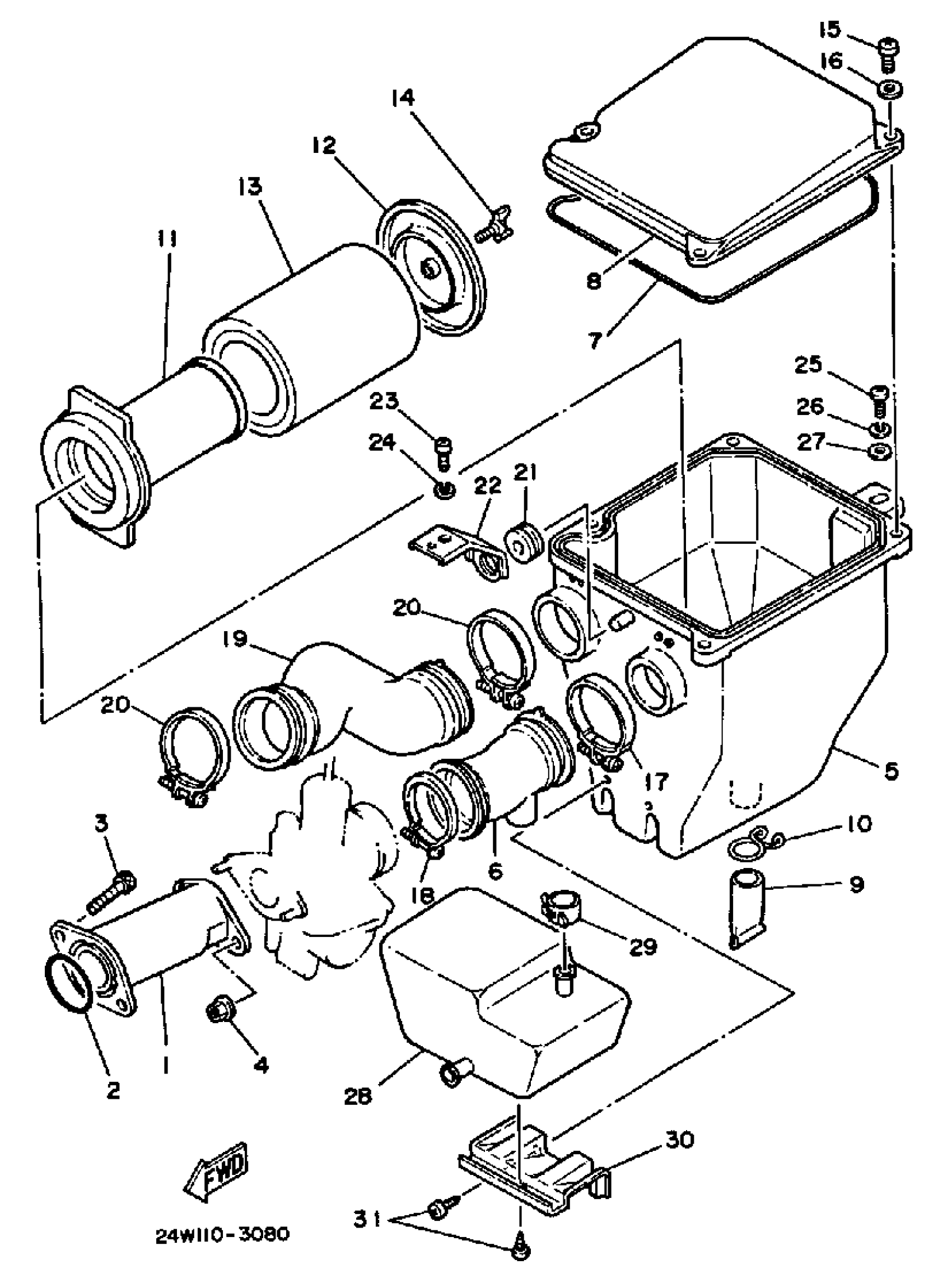

Yamaha YTM200ERN 1985 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

24W-13586-02-00

Unavailable

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

NUT, FLANGE(7NB)

95780-06500-00

$2.60

5

CASE, AIR CLEANER 1

21V-14411-00-00

Unavailable

6

JOINT, AIR CLNR 1

24W-14453-00-00

Unavailable

7

SEAL

1VJ-14462-00-00

$18.49

8

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

9

SEAL

59V-14457-00-00

$6.99

10

CLIP (21V)

90467-22080-00

$8.49

11

GUIDE

21V-14458-01-00

$98.99

12

PLATE, ELEMENT FTNG

21V-14468-00-00

Unavailable

13

ELEMENT ASSEMBLY CLEANER

21V-14450-90-00

Unavailable

13

ELEMENT, AIR CLEANER

21V-14451-01-00

$18.49

14

BOLT, WING(8W1)

90122-05022-00

$7.49

15

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

18

HOSE CLAMP ASSY

90450-47002-00

Unavailable

19

DUCT

21V-14437-01-00

Unavailable

20

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

21

GROMMET (2N3)

90480-16233-00

Unavailable

22

STAY 2

21V-14499-00-00

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

SCREW PAN HEAD

98580-06020-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLATE

90201-06380-00

Unavailable

28

CHAMBER, AIR

21V-13581-00-00

Unavailable

29

CLIP (4V3)

90467-19051-00

Unavailable

30

STAY 1

(21V-14493-00-00)

Unavailable

31

SCREW, TAPPING(61A)

97780-50612-00

Unavailable
