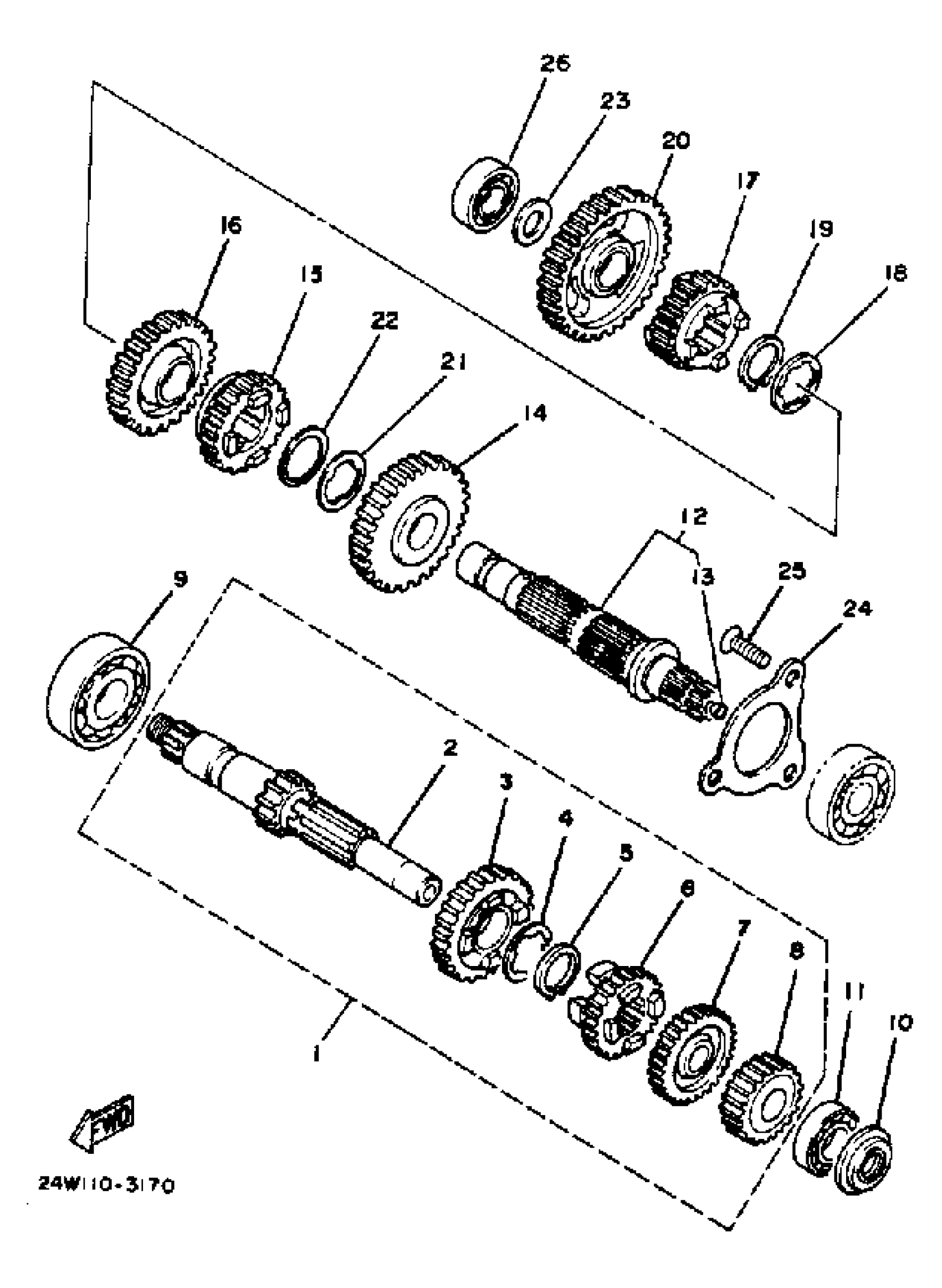

Yamaha YTM200EK 1983 TRANSMISSION Diagram
#
Description
Price
1
MAIN AXLE
24W-17410-10-00
Unavailable
2
. MAIN AXLE ASSEMBLY
24W-17401-00-00
Unavailable
3
GEAR, 5TH PINION
15A-17151-01-00
Unavailable
6
. GEAR, 3RD PINION
24W-17131-00-00
Unavailable
7
GEAR, 4TH PINION
15A-17141-00-00
Unavailable
8
GEAR, 2ND PINION
24W-17121-00-00
Unavailable
12
DRIVE AXLE ASSY
24W-17402-00-00
Unavailable
13
. PLUG, TIGHT
90331-07041-00
Unavailable
14
GEAR, 2ND WHEEL
24W-17221-10-00
Unavailable
15
GEAR, 4TH WHEEL
24W-17241-00-00
Unavailable
16
GEAR, 3RD WHEEL
24W-17231-00-00
Unavailable
17
GEAR, 6TH WHEEL
5MP-17261-00-00
Unavailable
18
WASHER (5H0)
90209-18208-00
Unavailable
19
CIRCLIP (537)
93410-22039-00
Unavailable
20
GEAR, 1ST WHEEL
36X-17211-00-00
Unavailable
21
WASHER (30X)
90209-23241-00
Unavailable
22
CIRCLIP (30X)
93410-26067-00
Unavailable
23
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
24
PLATE, BEARING
24W-17558-00-00
Unavailable
25
SCREW
90149-08013-00
Unavailable
