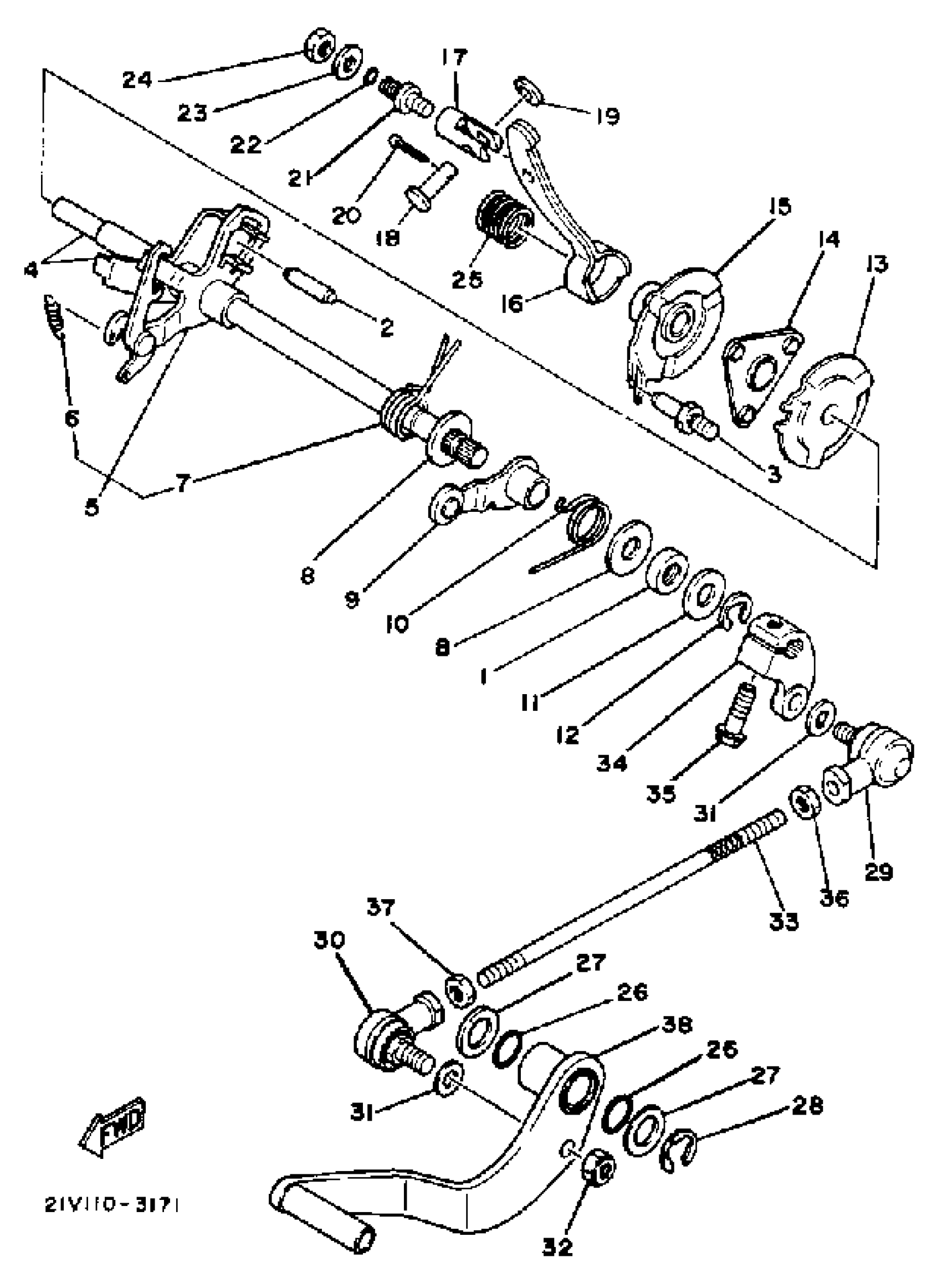

Yamaha YTM200EK 1983 SHIFT SHAFT-PEDAL Diagram
#
2
PIN, DOWEL
93608-30152-00
Unavailable
3
BOLT, STOPPER
21V-18177-00-00
Unavailable
4
SHIFT SHAFT COMP.
21V-W1813-00-00
Unavailable
5
SHIFT LEVER ASSY
21V-18120-00-00
Unavailable
7
. SPRING, TORSION
90508-29570-00
Unavailable
9
STOPPER LEVER ASSY
4G0-18140-00-00
Unavailable
13
GUIDE
24W-18179-00-00
Unavailable
14
HOLDER, PAWL
21V-18181-00-00
Unavailable
16
ARM, SHIFT 3
2HT-1817A-00-00
Unavailable
17
PIN, LEVER
21V-18126-00-00
Unavailable
18
PIN, JOINT
21V-18118-00-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
PIN, COTTER
91490-16020-00
Unavailable
21
STOPPER, SCREW
21V-18127-00-00
Unavailable
22
O-RING (21V)
93210-07590-00
Unavailable
23
WASHER (1T1)
90201-08649-00
Unavailable
24
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
25
SPRING, COMPRESSION
90501-16768-00
Unavailable
26
O-RING (22U)
93210-15566-00
Unavailable
27
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
28
CIRCLIP (122)
93430-12008-00
Unavailable
29
BALL, L R
21V-18156-00-00
Unavailable
30
BALL, L L
21V-18157-00-00
Unavailable
31
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
32
NUT, U
95617-08100-00
Unavailable
33
ROD, SHIFT
21V-18115-00-00
Unavailable
34
JOINT, ROD 1
5V6-18116-00-00
Unavailable
35
BOLT, FLANGE
95822-06025-00
Unavailable
36
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
37
NUT
90170-08261-00
Unavailable
38
PEDAL, SHIFT
21V-18111-10-00
Unavailable
39
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
