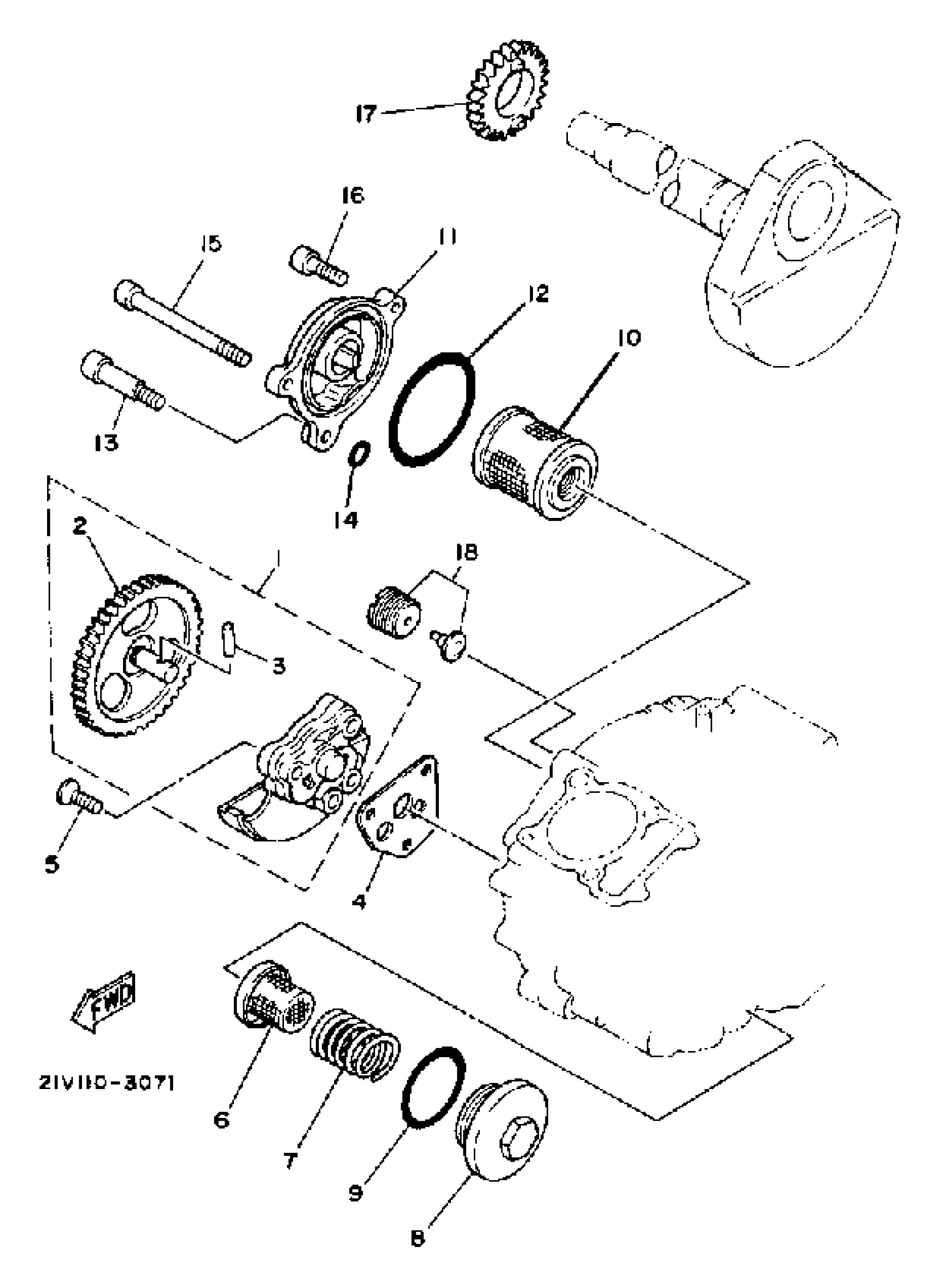

Yamaha YTM200EK 1983 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

21V-13300-00-00

Unavailable

2

. GEAR, PUMP DRIVEN 2 (41T)

21V-13326-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

5

SCREW, FLAT

98707-06030-00

$7.99

6

STRAINER, OIL

51Y-13411-00-00

$37.99

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

8

PLUG, DRAIN

5H0-15351-00-00

$31.99

9

O-RING

93210-347A1-00

$7.49

10

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

11

COVER, OIL ELEMENT

15A-13447-01-00

Unavailable

12

O-RING (341)

93210-54175-00

$13.49

13

BOLT (583 OIL DRAIN)

90109-06419-00

$8.49

14

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

BOLT,SOCKET

91317-06115-00

Unavailable

17

GEAR, PUMP DRIVE

21V-13324-00-00

Unavailable

18

CHECK VALVE ASSEMBLY

21V-13409-01-00

Unavailable
