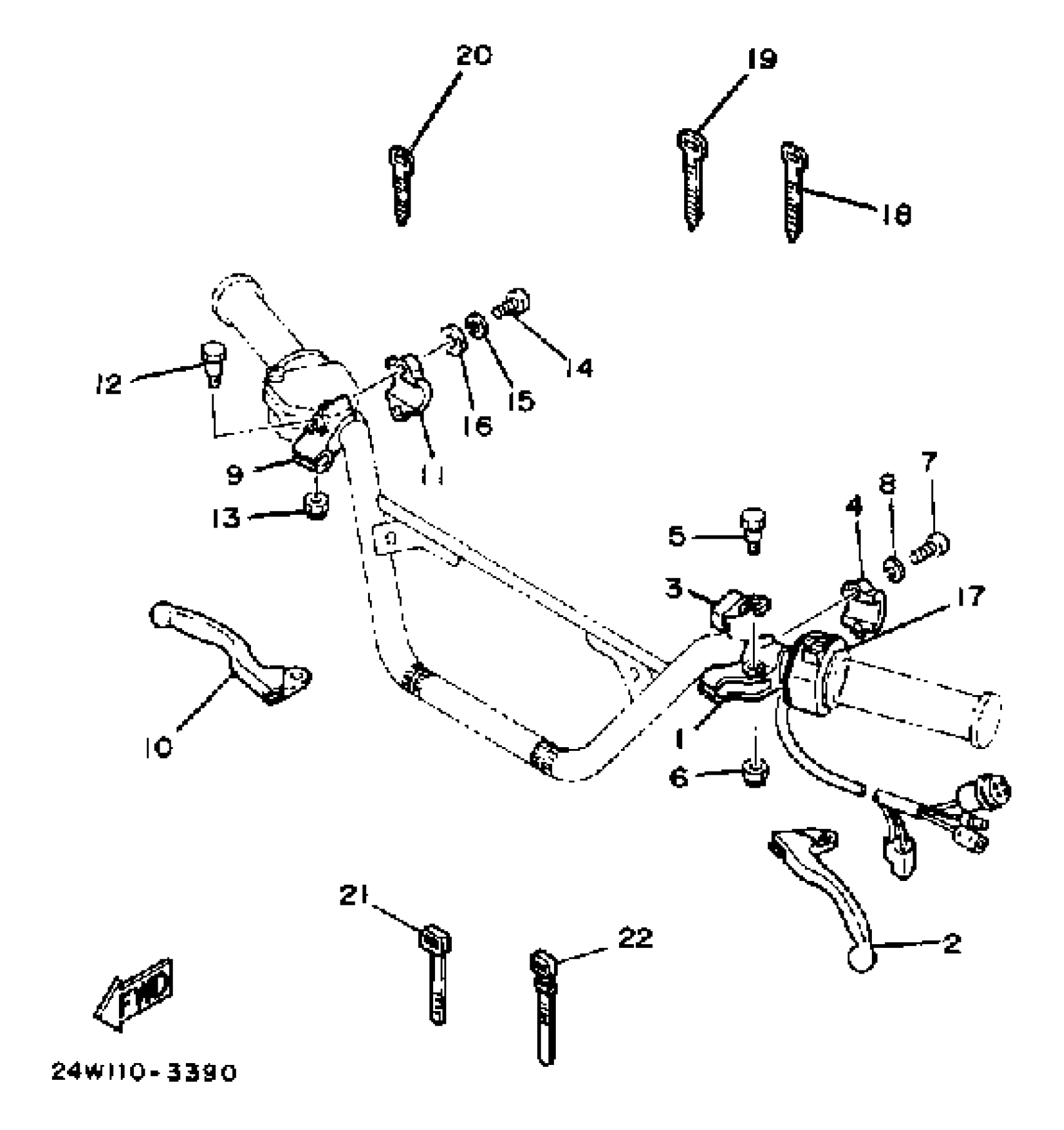

Yamaha YTM200EK 1983 HANDLE SWITCH-LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5F6-82911-00-00

Unavailable

2

LEVER 1

23X-83912-02-00

$27.99

3

LEVER, LOCK

3X3-83965-00-00

$30.99

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$8.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

H0LDER, LEVER 2

38V-82921-00-00

$42.99

10

LEVER R

23X-83922-01-00

$27.99

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

BOLT(3GB)

90109-061F3-00

$7.49

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW, PAN HEAD

98517-05020-00

$4.25

15

WASHER(3SX)

92907-05100-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

SWITCH, HANDLE 3

24W-83973-08-00

Unavailable

18

BAND, SWITCH CORD

437-83936-11-00

Unavailable

19

BAND, SWITCH CORD

437-83936-11-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable

22

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
