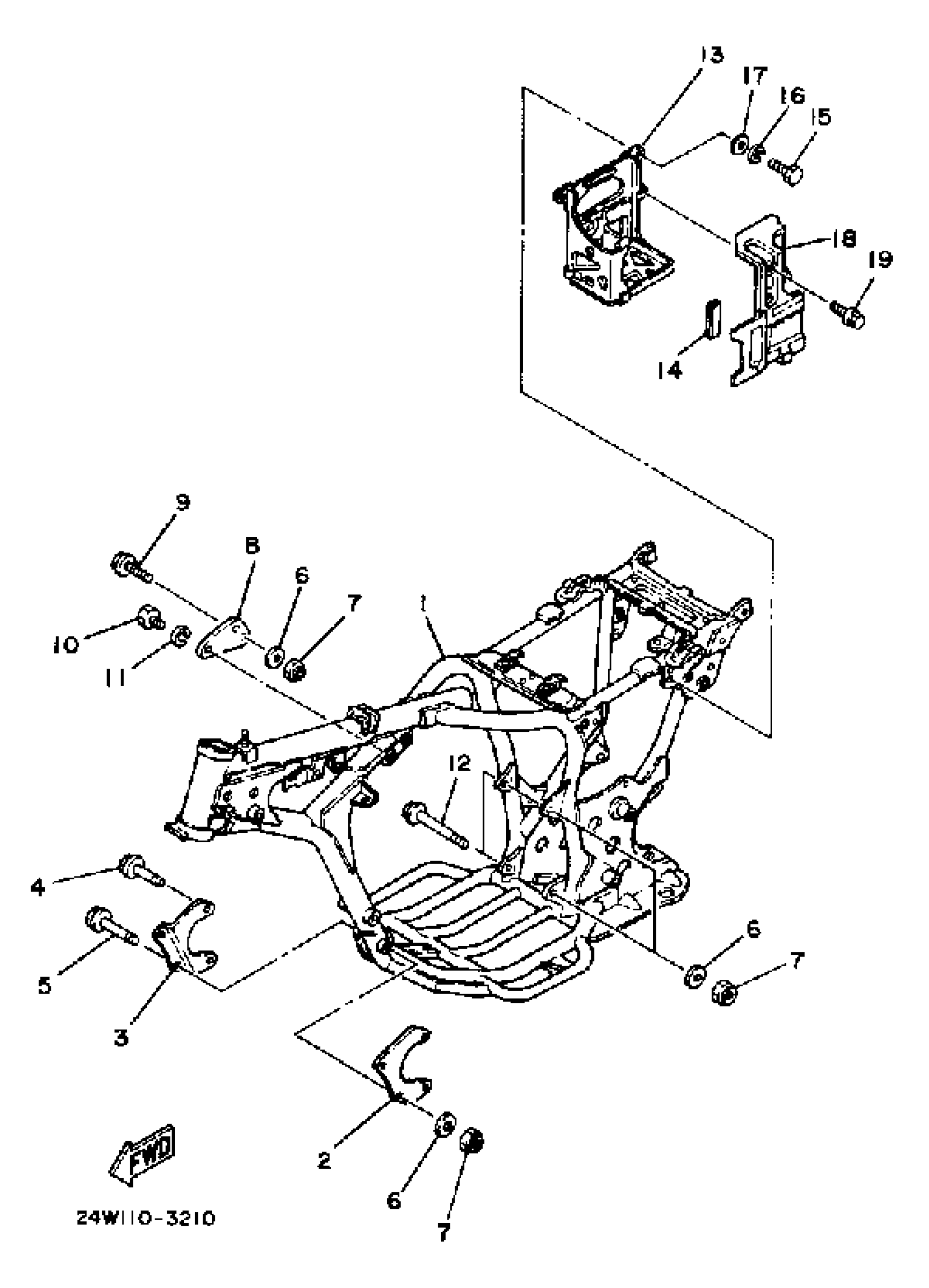

Yamaha YTM200EK 1983 FRAME Diagram

#

Description
Price

1

FRAME

(24W-21110-01-33)

Unavailable

2

STAY, ENGINE 3

24W-21316-00-00

Unavailable

3

STAY, ENGINE 4

24W-21317-00-00

Unavailable

4

BOLT, FLANGE

95814-08065-00

$4.99

5

BOLT, FLANGE

95817-08075-00

$4.82

6

WASHER, PLATE (33N)

90201-094G1-00

$9.49

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

STAY, ENGINE 2

24W-21315-00-00

Unavailable

9

BOLT, FLANGE

95817-08050-00

$2.44

10

BOLT, HEXAGON

97013-08016-00

$1.01

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

13

BOX

24W-21170-00-00

Unavailable

14

COVER 2

3FC-2139R-00-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

18

BOX

24W-21245-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06152-00

Unavailable
