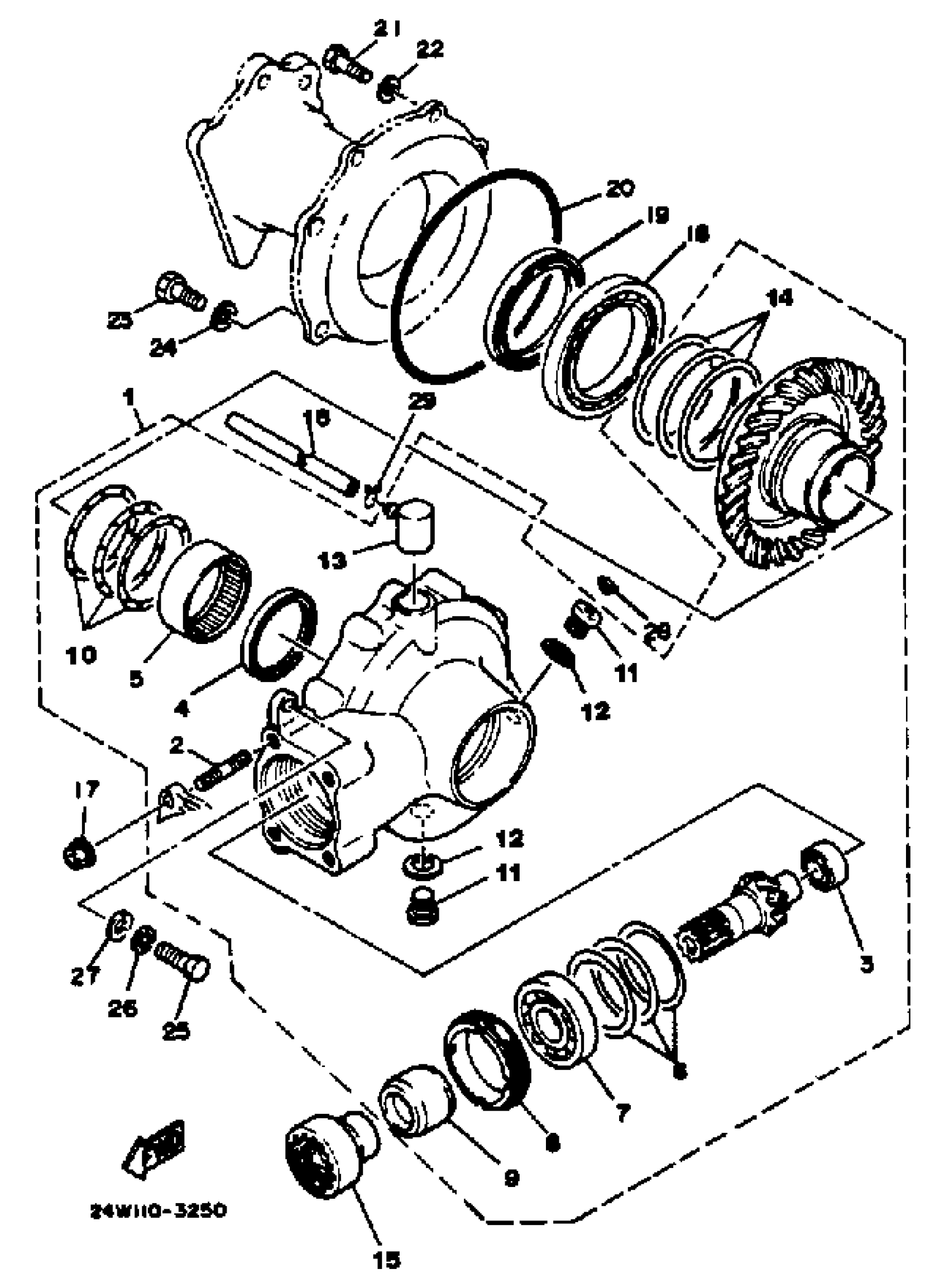

Yamaha YTM200EK 1983 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASSEMBLY
24W-46101-01-00
Unavailable
3
. BEARING ASSY
24W-46102-00-00
Unavailable
8
. RETAINER, BEARING
24W-46125-00-00
Unavailable
9
COLLAR (24W)
90387-255H9-00
Unavailable
10
WASHER, THRUST
24W-46118-00-12
Unavailable
10
WASHER, THRUST
24W-46118-00-16
Unavailable
10
WASHER, THRUST
24W-46118-00-18
Unavailable
10
WASHER, THRUST
24W-46118-00-20
Unavailable
11
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
12
GASKET
214-11198-01-00
Unavailable
13
BREATHER
2H7-17591-01-00
Unavailable
14
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
14
. SHIM, RING GEAR (030T)
24W-46117-00-30
Unavailable
14
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
14
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
15
COUPLING, GEAR
24W-46123-00-00
Unavailable
16
HOSE (L1700)
90445-070G6-00
Unavailable
17
NUT, FLANGE
95704-08500-00
Unavailable
18
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
19
OIL SEAL (22U)
93102-65277-00
Unavailable
20
O-RING (1J7)
93211-44348-00
Unavailable
21
BOLT (682)
97013-08025-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
BOLT(6TD)
97017-10025-00
Unavailable
24
WASHER, PLATE
92990-10600-00
Unavailable
25
BOLT(N02)
97070-10035-00
Unavailable
26
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
27
WASHER, PLATE
92990-10600-00
Unavailable
28
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
29
CLIP (1J7)
90467-07029-00
Unavailable
