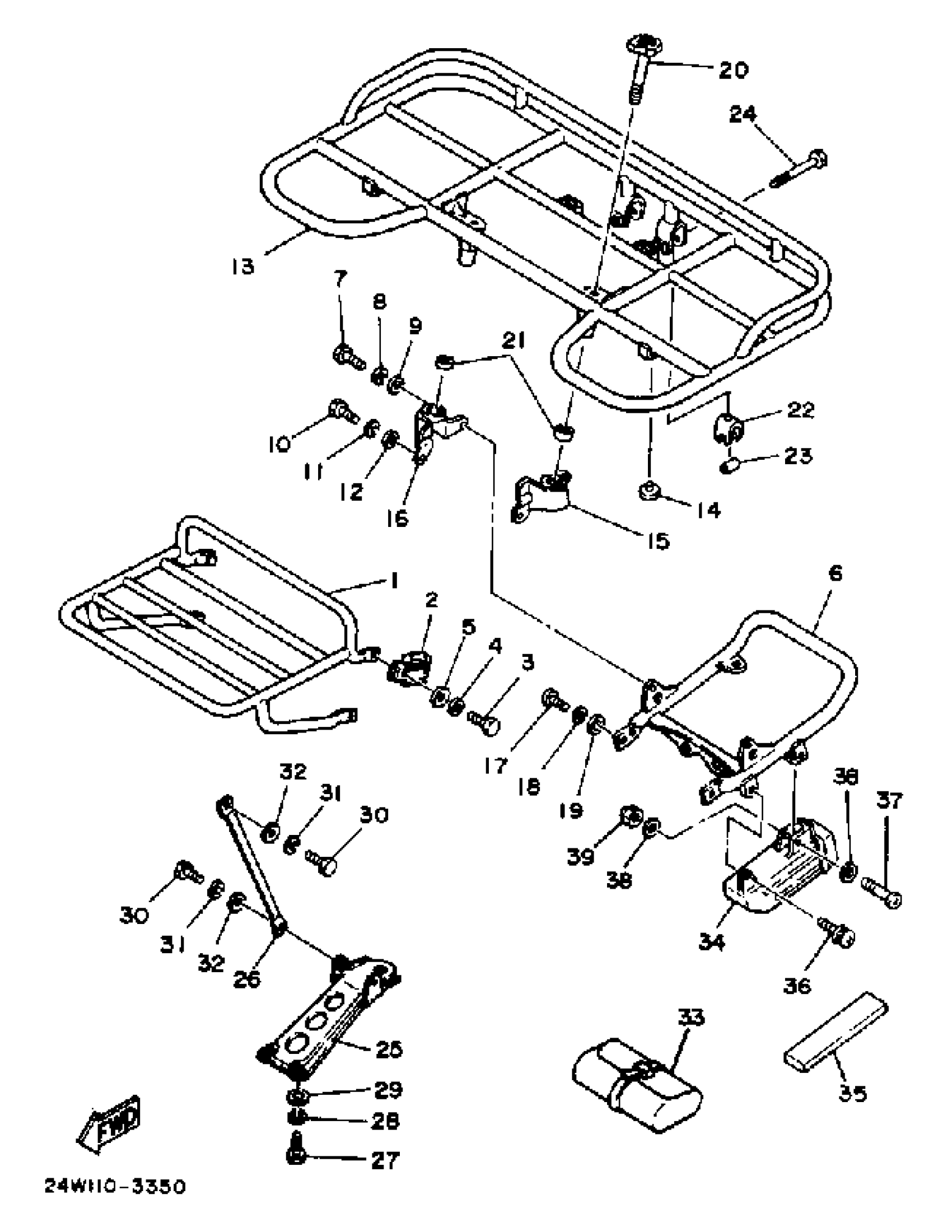

Yamaha YTM200EK 1983 BUMPER Diagram
#
1
BRACKET, CARRIER 1
(24W-24832-00-00)
Unavailable
2
BRACKET, CARRIER 2
24W-24833-00-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BUMPER, REAR 1
24W-28421-10-00
Unavailable
9
.. WASHER, PLATE
92990-08600-00
Unavailable
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
SUB CARRIER ASSEMBLY
24W-24830-00-00
Unavailable
14
. PAD, SEAT
107-24741-00-00
Unavailable
15
DAMPER 1
24W-24855-00-00
Unavailable
16
DAMPER 2
24W-24856-00-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
KNOB, HANDLEBAR
24W-23450-00-00
Unavailable
21
GROMMET
90480-10258-00
Unavailable
22
BAND
24W-2483H-00-00
Unavailable
23
SPACER (24W)
90560-06243-00
Unavailable
24
BOLT(21W)
97017-06035-00
Unavailable
25
HOOK
24W-24867-00-00
Unavailable
26
STAY, REAR
24W-24819-00-00
Unavailable
27
BOLT(8BT)
97017-10020-00
Unavailable
28
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
29
WASHER, PLATE
92990-10600-00
Unavailable
30
BOLT(JA9)
90101-08691-00
Unavailable
32
.. WASHER, PLATE
92990-08600-00
Unavailable
33
TOOL KIT (24W-28100-00)
59V-28100-00-00
Unavailable
34
TOOL BOX
1T2-21107-00-00
Unavailable
35
DAMPER, LOCATING 3
24W-24183-00-00
Unavailable
36
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
37
SCREW PAN HEAD
98580-06040-00
Unavailable
38
WASHER, PLATE
90201-06049-00
Unavailable
39
NUT, SELF-LOCKING
95617-06100-00
Unavailable
