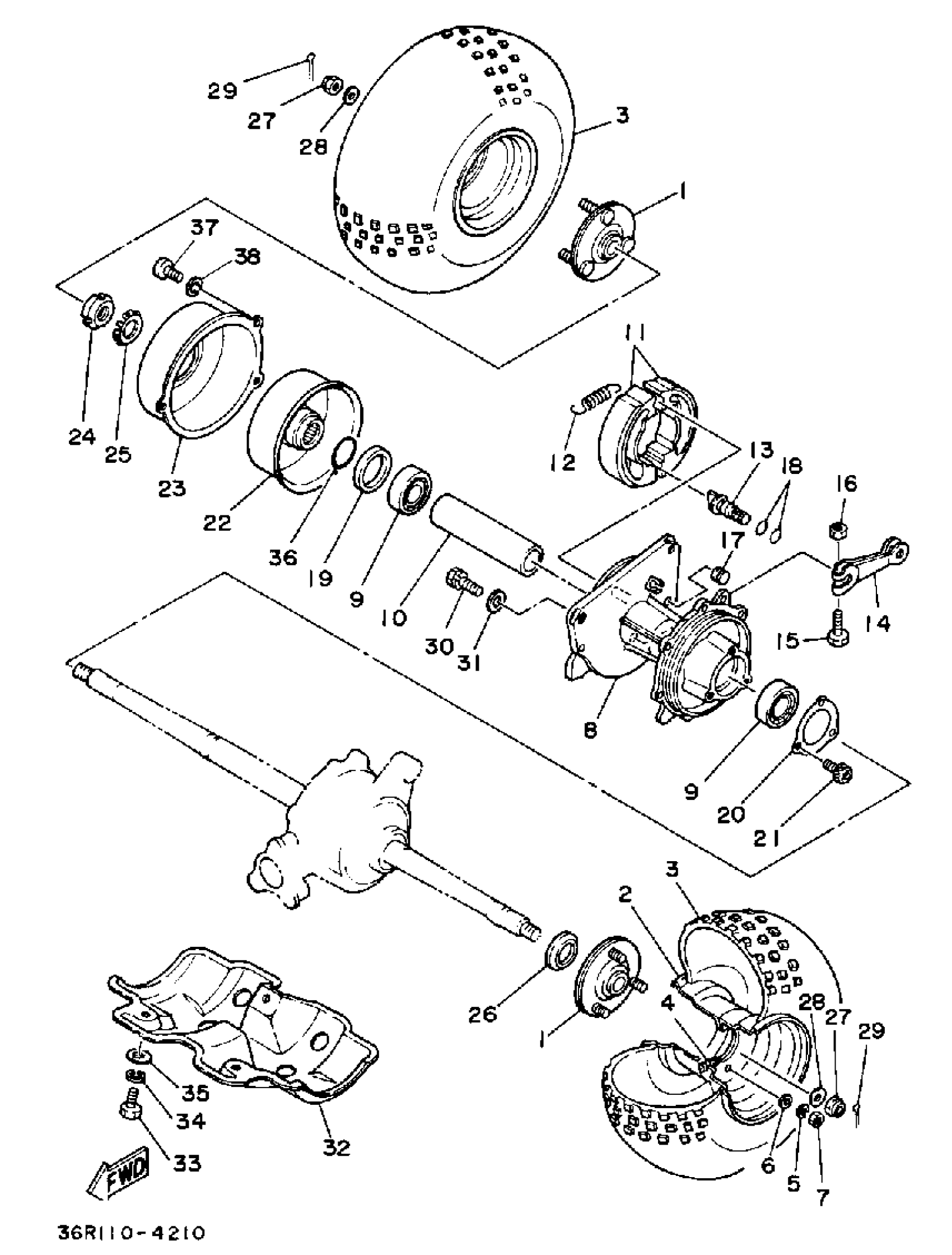

Yamaha YT60L 1984 REAR WHEEL Diagram
#
1
COLLAR, WHEEL
36R-25383-00-00
Unavailable
2
UNAVAILABLE IN PRICE BOOK (36R-25180-00-35)
36R-25181-01-35
Unavailable
3
15X7.00-6 KT465TL
94107-063E8-00
Unavailable
6
WASHER, PLAIN
92990-08200-00
Unavailable
8
HUB, REAR
36R-25311-00-00
Unavailable
10
SPACER, BEARING
90560-25307-00
Unavailable
11
BRAKESHOE SET-2PCS
36R-W2536-00-00
Unavailable
13
CAMSHAFT
5G3-25351-02-00
Unavailable
14
LEVER, CAMSHAFT
36R-25355-00-00
Unavailable
16
NUT, HEXAGON
95380-06600-00
Unavailable
17
GROMMET (397)
90480-10068-00
Unavailable
18
O-RING(3LD)
93210-12790-00
Unavailable
19
OIL SEAL (36R)
93102-35318-00
Unavailable
20
PLATE, COVER
(36R-46114-00-00)
Unavailable
21
BOLT, SOCKET
91314-06016-00
Unavailable
22
DRUM BRAKE
36R-2531E-00-00
Unavailable
23
COVER 1
36R-25715-01-00
Unavailable
24
NUT, SPEC''L SHAPE
90179-23439-00
Unavailable
25
WASHER, LOCK
90215-23227-00
Unavailable
26
COVER, HUB DUST
36R-25367-00-00
Unavailable
27
NUT, CASTLE(36R)
90171-12039-00
Unavailable
28
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
29
PIN, COTTER(6L5)
91490-25030-00
Unavailable
30
BOLT,WITH WASHER
90119-10078-00
Unavailable
31
WASHER, PLATE (29U)
90201-104G0-00
Unavailable
32
COVER
36R-2219X-00-00
Unavailable
33
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
36
O-RING (36R)
93210-25642-00
Unavailable
37
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
38
WASHER, SPRING
92995-06100-00
Unavailable
