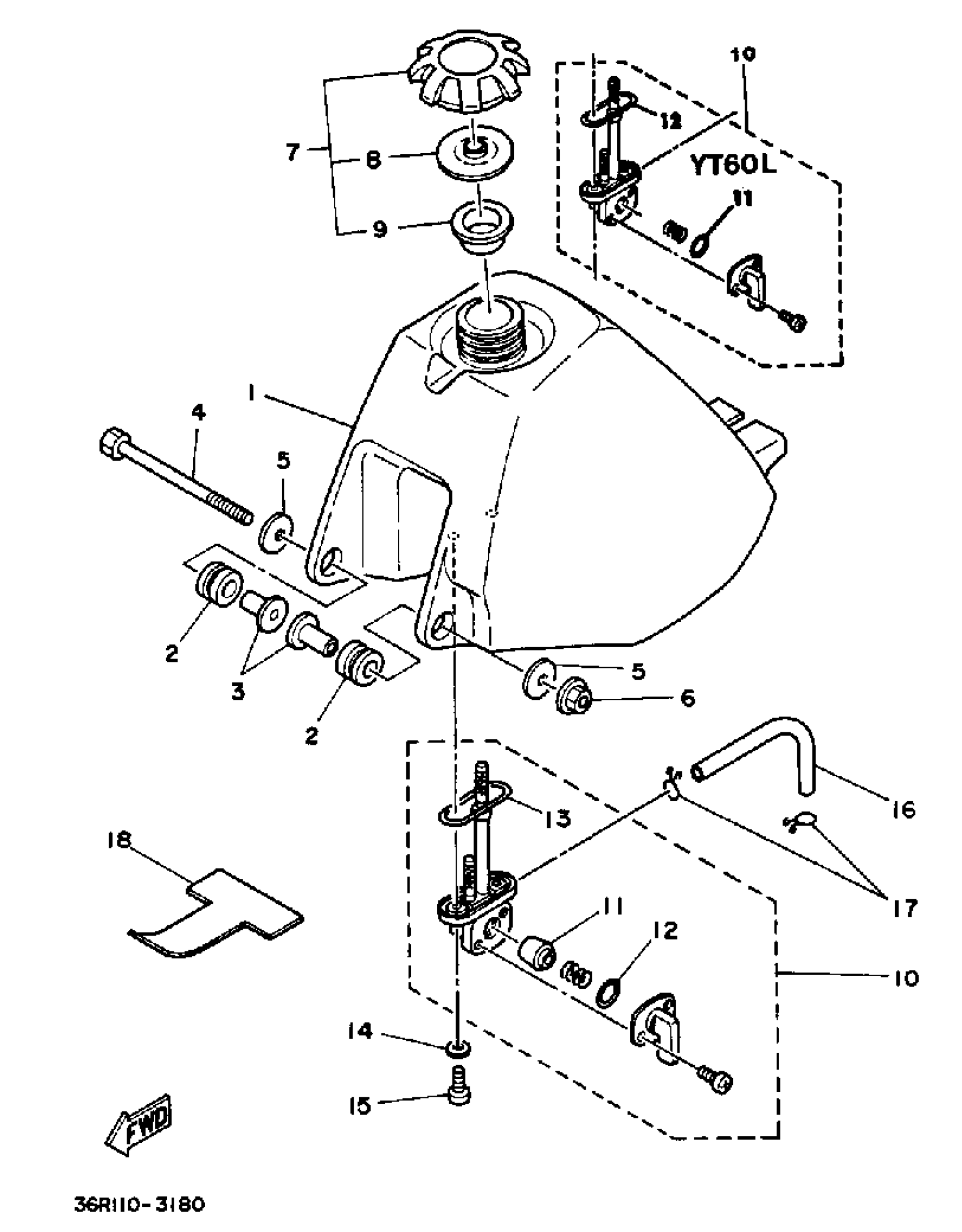

Yamaha YT60L 1984 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

36R-24110-00-00

Unavailable

2

GROMMET (4V1)

90480-18290-00

$8.49

3

COLLAR (36R)

90387-066J1-00

$8.49

4

BOLT, FLANGE

95817-06125-00

$5.60

5

WASHER, PLATE (J10)

90201-06697-00

$8.49

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

CAP ASSY

4X4-24610-00-00

$57.99

8

. GASKET, PLATE 1

1L4-24615-00-00

Unavailable

9

. GASKET, PLATE 2

1L4-24616-00-00

Unavailable

10

FUEL COCK ASSY 1

36R-24500-01-00

$76.99

11

FUEL COCK ASSEMBLY

(4X8-24523-00-00)

Unavailable

12

O-RING

4X8-24534-00-00

$13.49

13

O-RING

4X8-24512-00-00

$8.99

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

SCREW 256241430000

90149-06011-00

$5.60

16

HOSE (L420)

90445-092K1-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

DAMPER, LOCATING 1

3R0-24181-00-00

Unavailable
