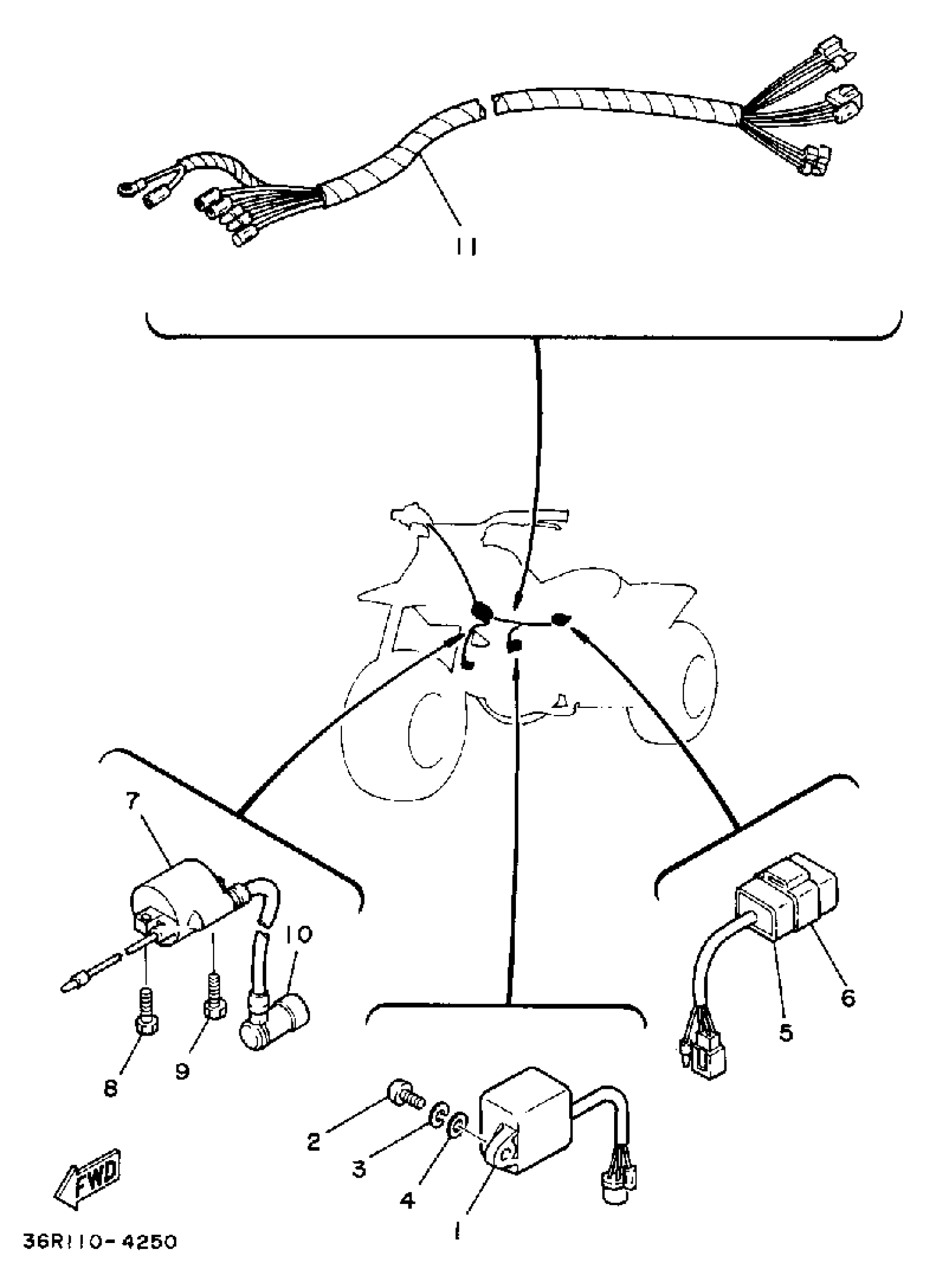

Yamaha YT60L 1984 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

36R-85540-M0-00

Unavailable

SCREW, PAN

98507-06014-00

$5.76

WASHER, SPRING

92995-06100-00

$2.95

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

CONTROL UNIT ASSEMBLYASSY

36R-85590-M0-00

Unavailable

BAND

4J2-85546-00-00

$9.79

IGNITION COIL ASSY

4RP-82310-26-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

SCREW (5G3)

90153-06034-00

$5.65

PLUG CAP ASSY

56J-82370-00-00

$40.46

WIRE HARNESS ASSEMBLYASSY

36R-82590-01-00

Unavailable
