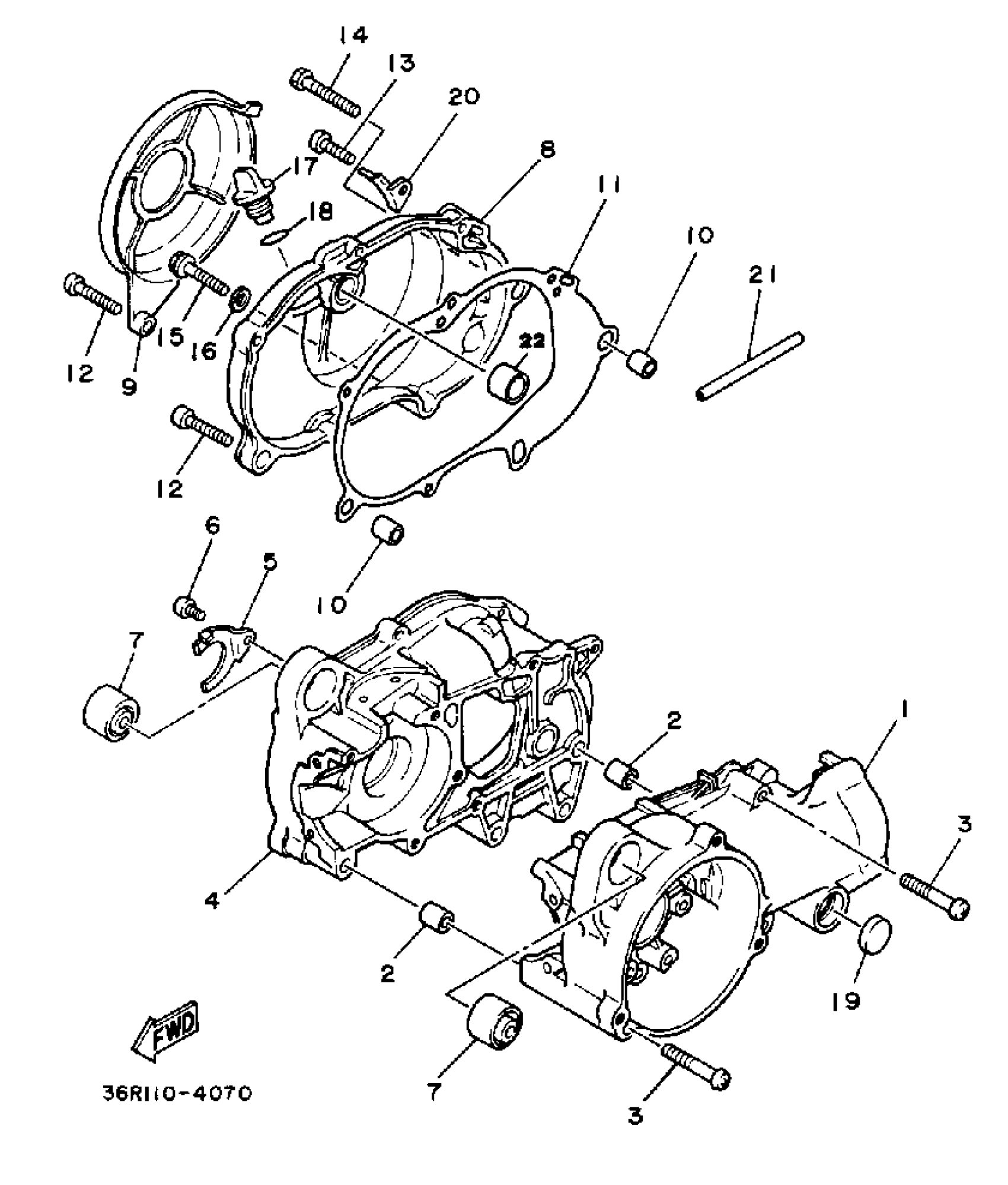

Yamaha YT60L 1984 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE 1
4X4-15111-00-00
Unavailable
4
CRANKCASE 2
3L5-15121-00-00
Unavailable
5
HOLDER
3L5-15128-00-00
Unavailable
6
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
8
COVER, CRANKCASE 2
4X4-15421-02-00
Unavailable
16
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
17
PLUG, OIL
4J2-15363-10-00
Unavailable
18
O-RING (26H)
93210-14579-00
Unavailable
19
PLUG (21V)
90338-26136-00
Unavailable
20
CLAMP 2
4X4-15484-00-00
Unavailable
21
HOSE (L450)
90445-05773-00
Unavailable
22
BUSH 1
3L5-17112-02-00
Unavailable
