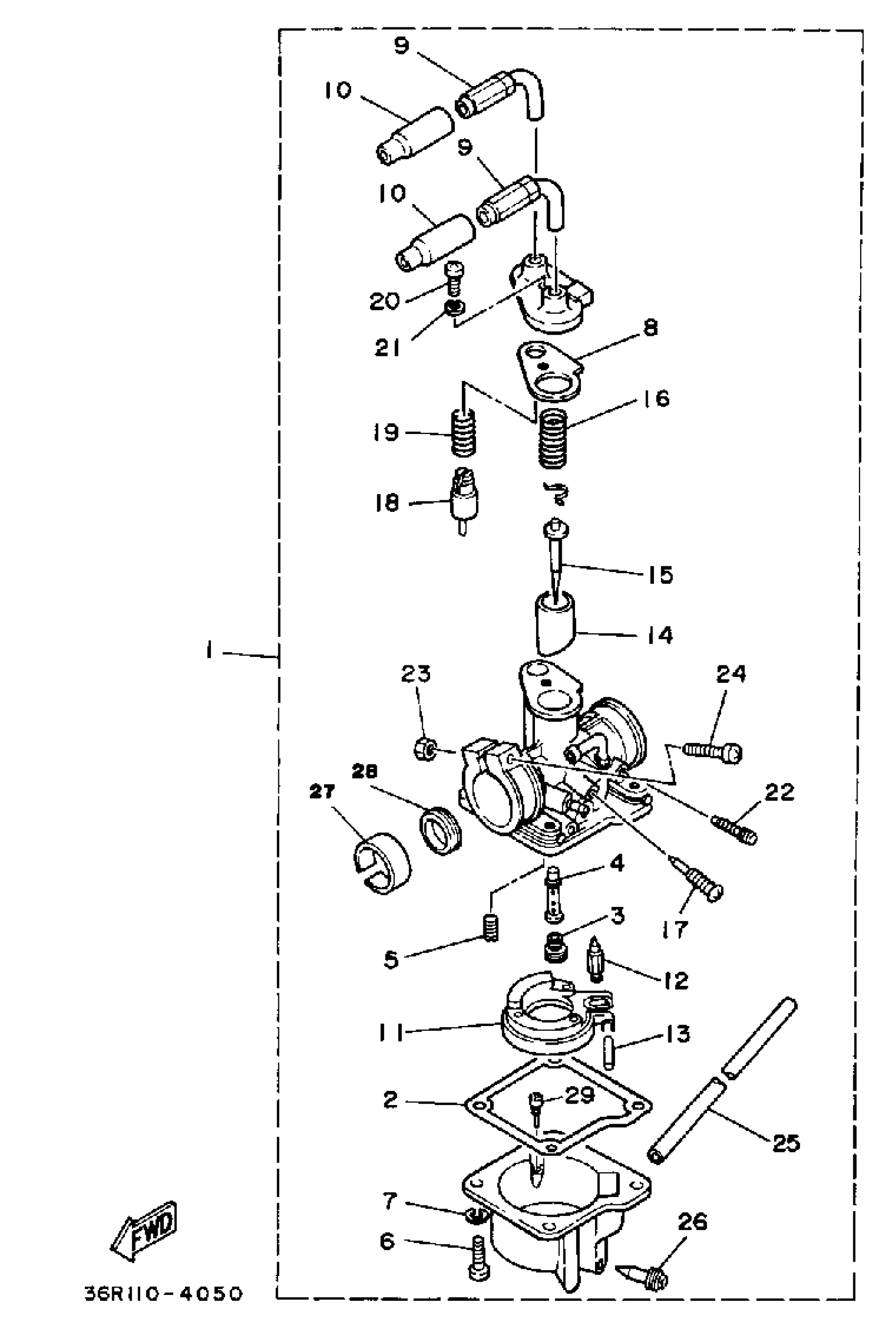

Yamaha YT60L 1984 CARBURETOR Diagram
#
Description
Price
1
CARBURETOR ASSEMBLY 1
36R-14101-00-00
Unavailable
3
JET, MAIN (# 90)
3G2-14231-18-00
Unavailable
3
JET, MAIN (# 95)
3G2-14231-19-00
Unavailable
3
. JET, MAIN (#925)
3G2-1423A-69-00
Unavailable
4
. NOZZLE, MAIN
3L7-14141-18-00
Unavailable
14
VALVE, THROTTLE (CA4.0)
3L5-14112-40-00
Unavailable
15
NEEDLE SET
36R-1490J-00-00
Unavailable
16
SPRING, THROTTLE VALVE
174-14131-01-00
Unavailable
17
THROTTLE SCREW SET
36R-14103-00-00
Unavailable
18
. PLUNGER, STARTER
36R-14171-00-00
Unavailable
19
SPRING, PLUNGER
127-14135-00-00
Unavailable
20
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
21
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
22
AIR SCREW SET
36R-14104-00-00
Unavailable
23
NUT, HEXAGON (663)
95380-05600-00
Unavailable
24
SCREW, PAN HEAD
98517-05030-00
Unavailable
25
HOSE (L200)
90445-05N13-00
Unavailable
26
AIR SCREW SET
36R-14104-00-00
Unavailable
27
PACKING, INSULATING
1V3-14271-00-00
Unavailable
28
SEAL
1M3-14997-00-00
Unavailable
29
. JET, STARTER
18M-14144-08-00
Unavailable
