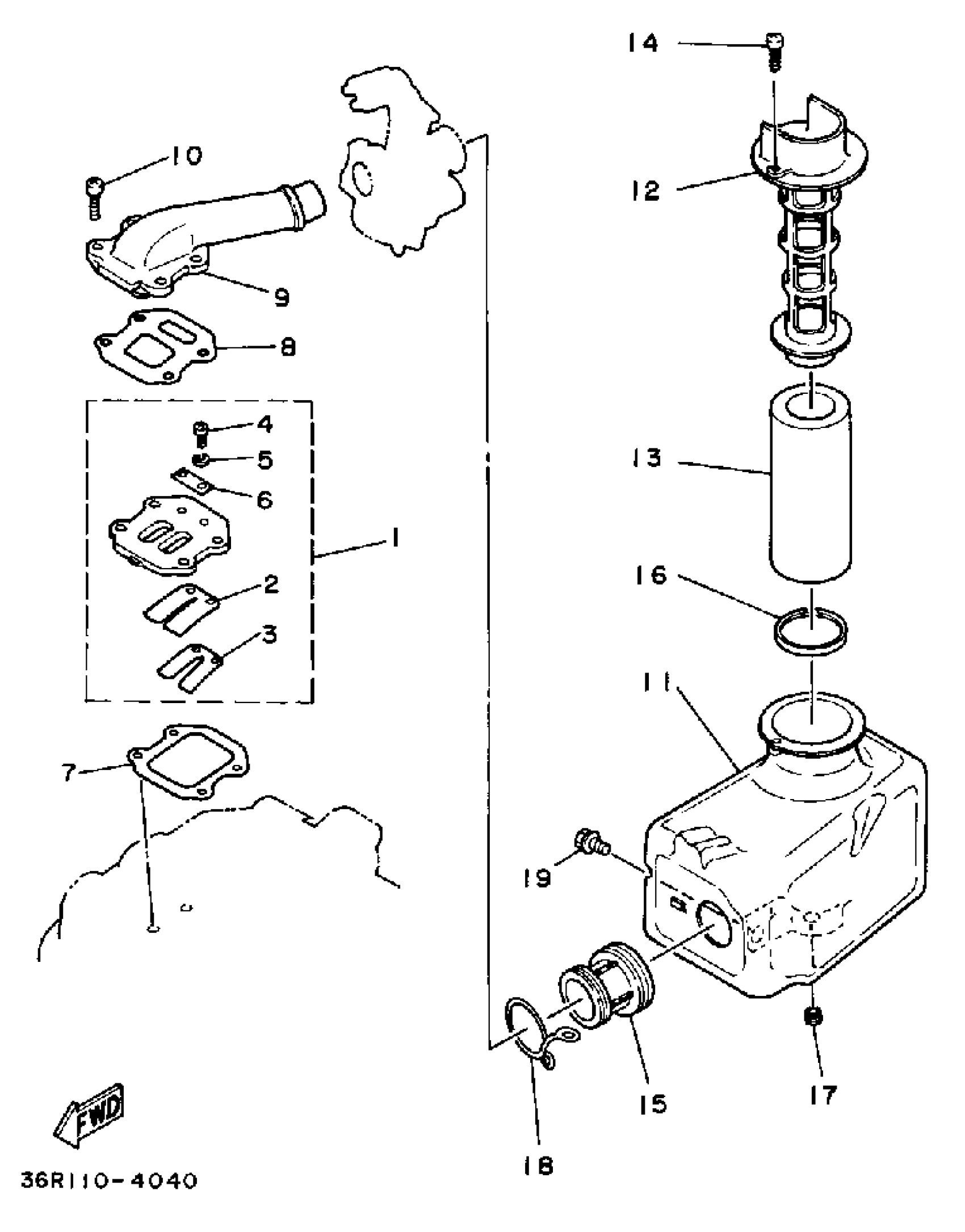

Yamaha YT60L 1984 AIR CLEANER Diagram

#

Description
Price

1

REED VALVE ASSY

3L5-13610-00-00

$65.94

2

REED VALVE

3L5-13613-00-00

$36.95

3

STOPPER, REED VALVE

3L5-13616-00-00

$8.65

4

SCREW PAN HEAD

98580-03010-00

$6.58

5

WASHER, SPRING

92990-03100-00

$5.75

6

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

7

GASKET, VALVE SEAT

3HK-13621-00-00

$16.36

8

GASKET, VALVE SEAT

3L5-13622-10-00

$23.18

9

MANIFOLD, INTAKE

36R-13555-01-00

Unavailable

10

SCREW PAN HEAD

98580-06020-00

$4.89

11

CASE, AIR CLEANER 1

36R-14411-00-00

Unavailable

12

CAP, CLEANER CASE 1

36R-14412-00-00

Unavailable

13

ELEMENT,AIR CLNR

36R-14451-01-00

Unavailable

14

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

$1.90

15

JOINT, AIR CLEANER 1

36R-14453-00-00

Unavailable

16

BAND

36R-14455-00-00

Unavailable

17

GROMMET 285216390000

90480-14100-00

Unavailable

18

CLIP 296144550000

90467-20023-00

Unavailable

19

BOLT, WITH WASHER

90119-06242-00

Unavailable
