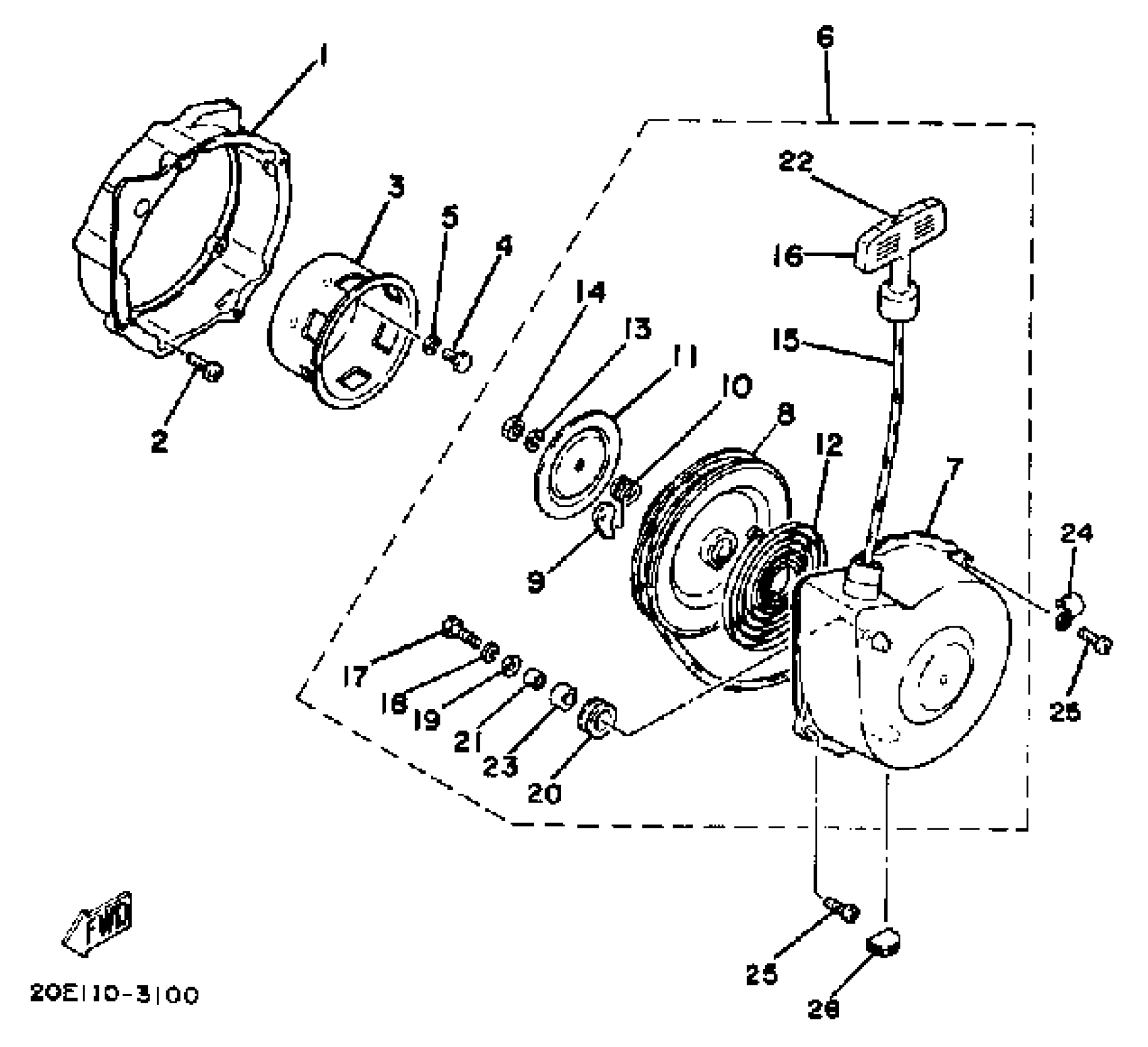

Yamaha YT175K 1983 STARTER Diagram

#

Description
Price

1

ADAPTOR

3X3-15787-00-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

PULLEY, STARTER (3X3-15723-00)

3X3-15723-01-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

STARTER ASSEMBLY

20E-15710-00-00

Unavailable

7

. CASE, STARTER

20E-15711-00-00

Unavailable

8

. DRUM, SHEAVE

3X3-15714-01-00

Unavailable

9

. PAWL, DRIVE

3X3-15741-00-00

Unavailable

10

. SPRING, DRIVE PLATE

3X3-15715-00-00

Unavailable

11

. PLATE, DRIVE

3X3-15716-00-00

Unavailable

12

. SPRING, STARTER

3X3-15713-00-00

Unavailable

13

WASHER(JN5)

92907-08100-00

$8.49

14

NUT

812-14594-00-00

$6.99

15

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

16

HANDLE, STARTER

3X3-15755-00-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

. WASHER, LOCK

6F5-15791-00-00

Unavailable

20

. ROLLER, WIRE

5V6-15752-00-00

Unavailable

21

. BUSH

6F5-15753-00-00

Unavailable

22

CAP, KNOB

21V-15779-00-00

Unavailable

23

. BUSH 2

5V6-15754-00-00

Unavailable

24

CLAMP

90465-08028-00

Unavailable

25

SCREW, PAN

98517-06020-00

Unavailable

26

GROMMET

90480-15312-00

Unavailable
