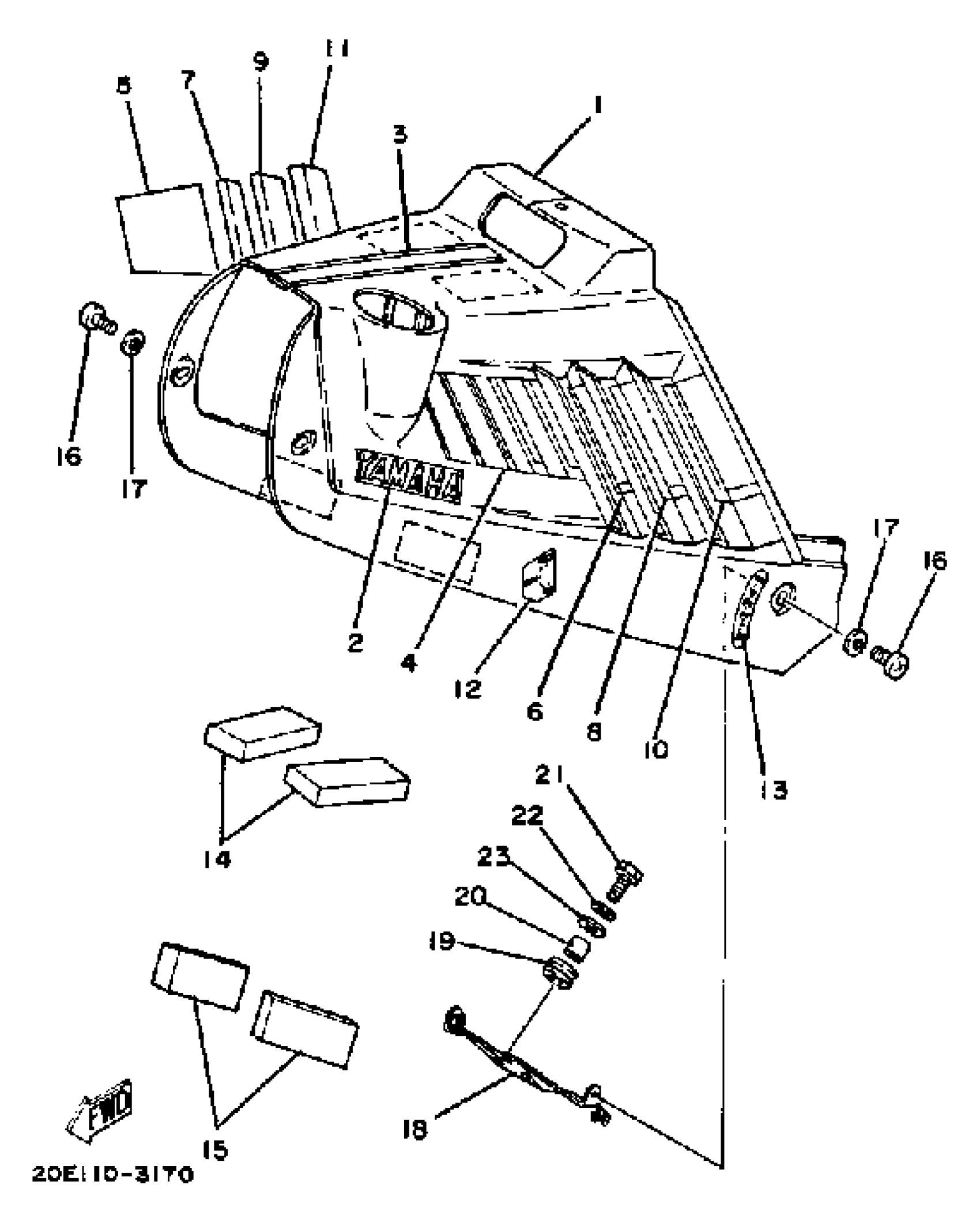

Yamaha YT175K 1983 SIDE COVER Diagram
#
Description
Price
1
SIDE COVER ASSEMBLY 1
5V7-21710-00-33
Unavailable
2
EMBLEM, YAMAHA
99244-00100-00
Unavailable
3
EMBLEM 2
5V6-24162-00-00
Unavailable
4
EMBLEM 3
(20E-24163-00-00)
Unavailable
5
EMBLEM 4
(20E-24164-00-00)
Unavailable
6
GRAPHIC, FUEL TNK 1
20E-24244-00-00
Unavailable
7
GRAPHIC, FUEL TNK 2
20E-24245-00-00
Unavailable
8
GRAPHIC, FUEL TNK 3
20E-24246-00-00
Unavailable
9
GRAPHIC, FUEL TNK 4
(20E-24247-00-00)
Unavailable
10
GRAPHIC, FUEL TNK 5
20E-24248-00-00
Unavailable
11
GRAPHIC, FUEL TNK 6
(20E-24249-00-00)
Unavailable
12
GRAPHIC
3X3-21788-00-00
Unavailable
13
GRAPHIC
5V6-21789-00-00
Unavailable
14
DAMPER
(3X3-21746-00-00)
Unavailable
15
DAMPER
5V7-21747-00-00
Unavailable
16
SCREW, BINDING
98907-06016-00
Unavailable
17
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
18
STAY, SIDE COVER 1
5V7-2172E-00-00
Unavailable
19
GROMMET(2GH)
90480-12475-00
Unavailable
20
COLLAR
90387-06113-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLATE
90201-06380-00
Unavailable
