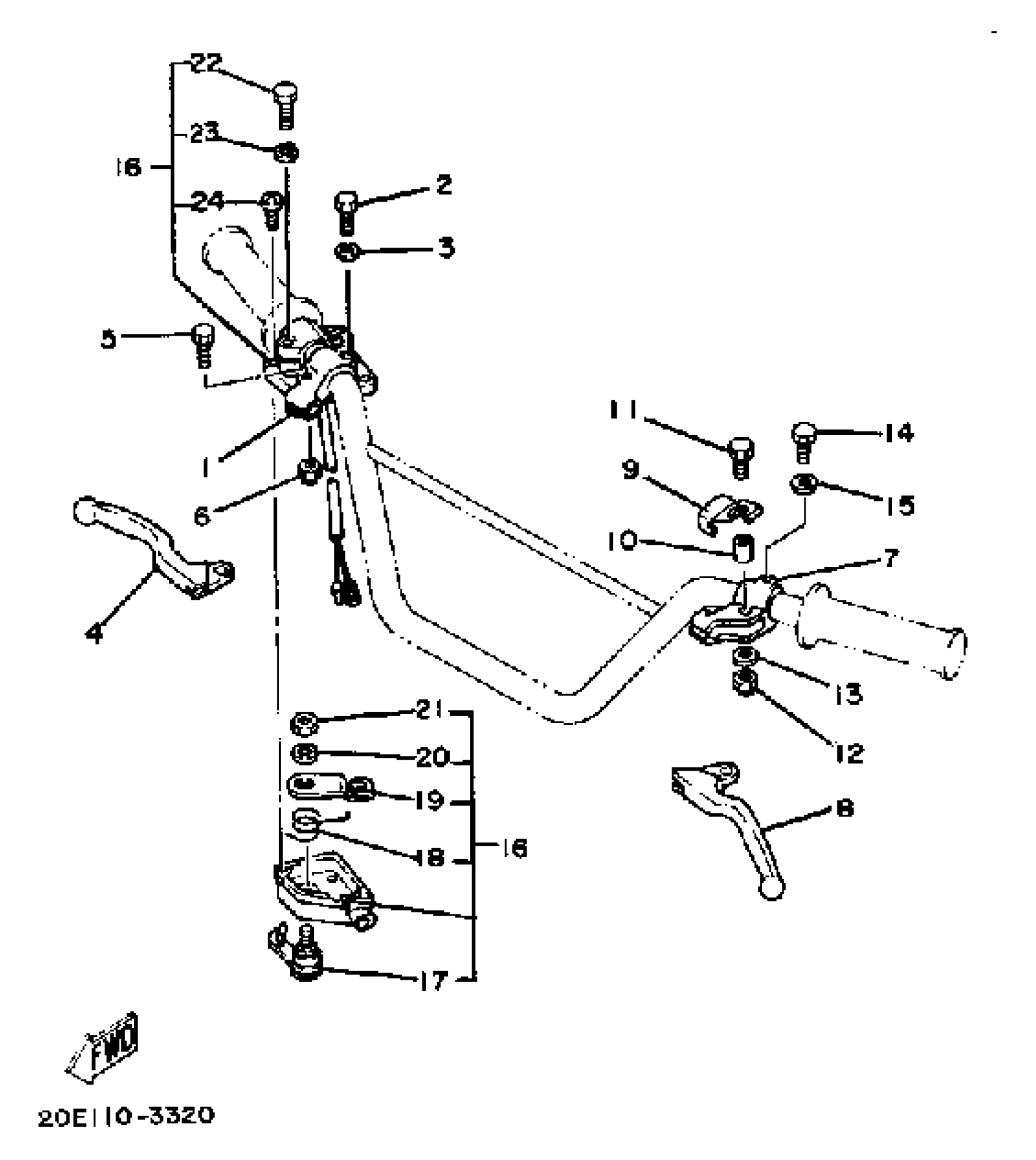

Yamaha YT175K 1983 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER, LEVER (R.H)

233-82921-31-00

$55.57

2

BOLT, HEXAGON

97013-06022-00

$1.12

3

WASHER, SPRING

92995-06100-00

$2.95

4

LEVER R

23X-83922-01-00

$20.29

5

BOLT(3GB)

90109-061F3-00

$4.51

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

HOLDER, LEVER (L.H)

214-82911-01-00

$45.93

8

LEVER 1

23X-83912-02-00

$20.03

9

LEVER, LOCK

3X3-83965-00-00

$25.97

10

COLLAR, LEVER

3X3-83913-00-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$2.78

12

NUT (J17)

95380-06800-00

$6.28

13

WASHER, SPRING

92995-06100-00

$2.95

14

BOLT, HEXAGON

97013-06022-00

$1.12

15

WASHER, SPRING

92995-06100-00

$2.95

16

LEVER HOLDER ASSEMBLY 2

5V6-82720-00-00

Unavailable

17

. LEVER, THROTTLE

5V6-42138-00-00

Unavailable

18

. SPRING

5V6-42147-00-00

Unavailable

19

. LEVER, THROTTLE CON

5V6-42154-00-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.95

21

NUT, HEXAGON

95380-06600-00

$4.11

22

BOLT, HEXAGON

97017-06025-00

$2.78

23

WASHER, SPRING

92995-06100-00

$2.95

24

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable
